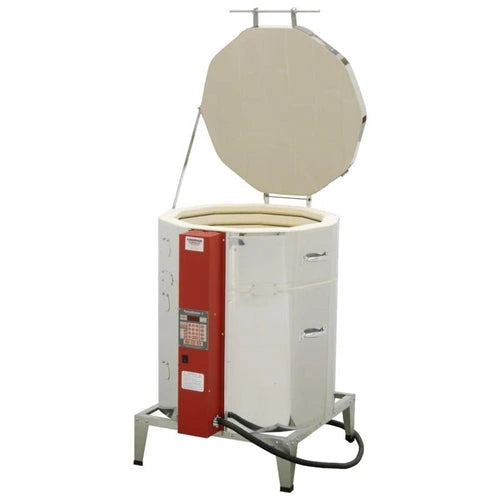

Evenheat RM II 2329 Cone 8 Kiln
The RM 2329 is our most popular studio model. Its 23.5" diameter x 29" deep chamber offers plenty of volume for busy studios, schools and businesses.
The RM 2329 features our TAP II, Icon+, Icon and Rampmaster II controls and is standard equipped with our exclusive Swing View Adjustable Viewing which you will absolutely enjoy.
Order yours with our Quiet Drive Solid State relay option for tight temperature control and longer element life.
Specifications
Chamber Dimensions:
- 23.5" Diameter x 29" Deep - 7.5 Cubic Feet
-
(59.7cm Diameter x 73.7cm Deep - 212L)
Outside Dimensions:
- 34.5" D x 27.5" W x 42" H (with 8" stand)
-
(87.6cm D x 69.2 W x 106.7cm H)
Maximum Use Temperature:
- 2300°F (1260°C) / Cone 8
Standard Electrical:
- 240 Volts, 45 Amps, 10,800 Watts, 50/60Hz, Single Phase
- Power Cord Plug Configuration - NEMA 6-50
Weight:
- 215lb. (97.7Kg) - Approx.
Features
Top Load
The RM 2329 is a top loading design and offers a chamber 23.5" diameter x 29" deep.

Wonderful Lid Handle
We love handles. Handles have to be properly sized and shaped for the job. Our lid handles make this point by offering an 16" handle that's easy to grasp and operate.
These wide, corner mounted handle allows for confident and easy lifting, even with a gloved hand. It's unlike any other and it's a joy to use.

2 Position Lid Vent
The RM 2329 is equipped with a 2 position lid vent. Perfect for speeding up the cooling process.

Swing View Equipped
The RM 2329 temperature controls are fitted to our Swing View Adjustable Enclosure.
The swing view is a pivoting, swing-up enclosure that allows you to rotate the control to a comfortable viewing and programming angle. Once you're done, lay it back down to see it from across your studio. It's that simple.
The swing view pairs well with touchscreen controls like the TAP II, Icon+ and Icon as viewing angle can be perfectly aligned. You'll love it.

Swing-Away Peephole Covers
Our kiln designs feature swing-away peephole covers as opposed to plugs.
Plugs get lost and they get broken. Our attached peephole covers remain on the kiln and simply swing open and closed. You won't lose them and they certainly won't break.

Lid Prop
The RM 2329 is provided with a lid prop bar that positively keeps the lid in the open position. Simple operation is made even easier with our well designed lid handle.

Relay Access Port
The RM 2329 incorporates our Relay Access Port for simple, no-panel-off relay replacement.
Simply remove the access plate to gain access to the mechanical relays. There's no need to remove the control panel and dig into the internal wiring. It's absolutely simple and effective and all it takes is a screwdriver!
It's a given that mechanical relays will fail at some point. This relay access port really comes in handy when they do.

Single Maintenance Line & Full Jackets
Our 29" deep models feature a "Maintenance Line". The Maintenance Line is a split in the jacket between the upper and lower chamber that allows these models to be partially disassembled for ease in element replacement and kiln installation.
The upper chamber section is held securely in place through the use of stainless steel plates and screws. Simply remove the screws and separate the sections for maintenance or installation.
We do not use buckles to hold the sections together as they tend to loosen and allow shifting during loading, unloading and use.

Build Options
Multiple Control Options
The RM 2329 is available in a variety of controls including the Icon, Icon+, Tap II and Rampmaster II.
At Evenheat we take the best control platforms on the market and make them even better by adding Special Limits thermocouples for precise temperature sensing and non-metallic faceplates for stellar Wi-Fi reception for on-line Apps. Visit our Controls tab to learn more about our controls and why they represent the very best that you can get.

Quiet Drive Solid State Relay Option
The RM 2329 is available with our Quiet Drive Solid State Relay option.
Our Quiet Drive Solid State Relay System offers tight temperature control, high reliability and increased heating element life. We fully expect our solid state relay to last the life of the unit. You want this!

Voltage Options
Our default production for the RM 2329 is 240V, Single Phase.
We do offer to build in 220V, 230V, 380V, 400V and 415V by request.
All controls available on the RM 2329 models will operate properly on both 50Hz and 60Hz line frequencies. To say it another way, line frequency has no effect. It doesn't matter.
Evenheat recommends that you check your operating voltage before ordering or placing the kiln in service.
Voltage Phase Options
The RM 2329 is available in 3 phase Delta and Wye (380V, 400V and 415V) designs by request.
Kiln Buyers Guide
Not sure which kiln fits your work? Sizing, voltage, controllers and more, explained.
Read the guide →
Evenheat Ceramic Kiln Model Comparison
Evenheat pottery kilns are top-loading electric kilns with a digital controller. They come in two families: RM kilns fire to cone 8 (2300°F), and HF (High Fire) kilns fire to cone 10 (2350°F). The charts below compare every Evenheat ceramic kiln we sell, using Evenheat's published specs for its standard build. That's 240-volt, single-phase power unless a kiln is marked 120V.
Which Evenheat ceramic kiln should I buy?
- First kiln for a home studioThe RM 1822 for cone 6 work. It's Evenheat's most popular personal-size kiln and plugs into a NEMA 6-50 outlet. Firing to cone 10? Look at the HF 1818, which draws 28 amps on a NEMA 6-30 plug.
- Studios and schoolsThe RM 2329 (7.5 cu ft, cone 8) is Evenheat's most popular studio kiln. The HF 2327 (7.0 cu ft, cone 10) is its best-selling high fire kiln, with multi-zone control and the Dyna-Lift lid lift.
- Easy loadingThe 18"- and 22"-deep kilns keep the floor within reach: the HF 2318 and HF 2918 for cone 10, or the RM 2322 and RM 2922 for cone 8, with the rim only 33" up.
- China painting and porcelainThe RM 1413 is Evenheat's most popular china painting kiln. On a 120-volt outlet, choose the RM 1210 for china paint to cone 07 or the HF 810 for cone 8.
- RM kilns fire to cone 8 (2300°F). We list them as RM II. HF (High Fire) kilns are built with 3" firebrick and fire to cone 10 (2350°F).
- On the round kilns from the 1413 up, the first two digits are about the chamber's width in inches and the last two are about its depth.
- 1210-B models are the 240-volt versions of the small 1210 chamber, built for porcelain bisque as well as china paint. The plain RM 1210 runs on 120 volts.
For example, the HF 2327 is a high-fire kiln about 23" across (23.5") and 27" deep.
| Model | Inside (width × depth) | Capacity | Max temp | Amps (240V) | Hookup | Best for |
|---|---|---|---|---|---|---|
| RM 1813 | 17.5" × 13.5" | 2.0 cu ft | Cone 8 (2300°F) | 18 | NEMA 6-20 plug | Wider pieces at an easy, shallow reach |
| HF 1813 | 17.5" × 13.5" | 2.0 cu ft | Cone 10 (2350°F) | 21 | NEMA 6-30 plug | A small studio that fires to cone 10 |
| HF 1818Evenheat's most popular cone 10 personal size | 17.5" × 18" | 2.7 cu ft | Cone 10 (2350°F) | 28 | NEMA 6-30 plug | Cone 10 in a home studio, with multi-zone control |
| RM 1822Evenheat's most popular personal size | 17.5" × 22.25" | 3.3 cu ft | Cone 8 (2300°F) | 30 | NEMA 6-50 plug | Home studios: big enough to fill, small enough to fire a partial load |
| HF 2318 | 23.5" × 18" | 4.7 cu ft | Cone 10 (2350°F) | 31 | NEMA 6-50 plug | Studio width at a waist-high 18" depth, with Dyna-Lift |
| RM 2322 | 23.5" × 22.25" | 5.8 cu ft | Cone 8 (2300°F) | 39 | NEMA 6-50 plug | Studio width with a rim only 33" off the floor |
| HF 2327Evenheat's best-selling high fire kiln | 23.5" × 27" | 7.0 cu ft | Cone 10 (2350°F) | 48 | NEMA 6-50 plug | Studios that fire cone 10 often, with multi-zone control and Dyna-Lift |
| RM 2329Evenheat's most popular studio size | 23.5" × 29" | 7.5 cu ft | Cone 8 (2300°F) | 45 | NEMA 6-50 plug | Busy studios, schools and businesses firing to cone 6 |
| HF 2918 | 29" × 18" | 7.0 cu ft | Cone 10 (2350°F) | 48 | NEMA 6-50 plug | Seven cubic feet of cone 10 at an easy 18" depth, with Dyna-Lift |
| RM 2922 | 29" × 22.25" | 8.7 cu ft | Cone 8 (2300°F) | 44 | NEMA 6-50 plug | Big loads without a deep reach; the rim is only 33" up |
| HF 2927 | 29" × 27" | 10.5 cu ft | Cone 10 (2350°F) | 59 | Direct wire | Evenheat's largest cone 10 kiln, with multi-zone control and Dyna-Lift |
| RM 2929 | 29" × 29" | 11.3 cu ft | Cone 8 (2300°F) | 56 | Direct wire | The biggest cone 8 loads for production studios and schools |
| RM 2522Oval, low fire | 41" × 25.25" oval, 22.25" deep | 11.2 cu ft | Cone 03 (2000°F) | 47 | NEMA 6-50 plug | Low-fire production, platters and long forms at a 22" depth |
| RM 2541Oval, low fire | 41" × 25.25" oval, 29" deep | 14.4 cu ft | Cone 03 (2000°F) | 60 | Direct wire | Evenheat's largest ceramic kiln, for high-volume low fire |
China painting, porcelain and test kilns
| Model | Inside (width × depth) | Capacity | Max temp | Power | Hookup | Best for |
|---|---|---|---|---|---|---|
| RM 810 | 11.25" × 9" | 0.57 cu ft | Cone 5½ (2200°F) | 120V, 18 amps | NEMA 5-20 plug | Test tiles, china paint and small pieces on 120 volts |
| HF 810 | 11.25" × 9" | 0.57 cu ft | Cone 8 (2300°F) | 120V, 18 amps | NEMA 5-20 plug | Porcelain, china paint and test firing to cone 8 on 120 volts |
| RM 1210 | 11.25" × 13.5" | 0.86 cu ft | Cone 07 (1800°F) | 120V, 19 amps | NEMA 5-20 plug | China painting and decals |
| RM 1210-B | 11.25" × 13.5" | 0.86 cu ft | Cone 8 (2300°F) | 240V, 13 amps | NEMA 6-20 plug | Porcelain bisque and china paint |
| HF 1210-B | 11.25" × 13.5" | 0.86 cu ft | Cone 10 (2350°F) | 240V, 13 amps | NEMA 6-20 plug | Porcelain bisque and china paint, with 3" brick and cone 10 reach |
| RM 1413Evenheat's most popular china painting kiln | 14.5" × 13.5" | 1.3 cu ft | Cone 8 (2300°F) | 240V, 15 amps | NEMA 6-20 plug | China painting and porcelain, in a kiln that fits any studio |
| HF 1413 | 14.5" × 13.5" | 1.3 cu ft | Cone 10 (2350°F) | 240V, 15 amps | NEMA 6-20 plug | The 3" brick version of the RM 1413, for cone 10 porcelain |
Specs are Evenheat's ratings for its standard build: 240V single-phase, or 120V where shown. The 120V kilns need a fully rated 20-amp breaker. Evenheat builds some models for 208V, 220V, 230V or 3-phase power by request, and the amperage changes with the voltage, so tell us your voltage when you order.
RM vs. HF, and controller options
HF (High Fire) kilns use 3" firebrick and fire to cone 10. Evenheat keeps the chamber the same size as the matching RM kiln and makes the outside larger, so standard kiln furniture still fits. The HF 1818 and the larger HF kilns add multi-zone control, with more than one thermocouple for even heat from top to bottom. The HF 2318, 2327, 2918 and 2927 come with Evenheat's Dyna-Lift lid lift assist.
Controllers: Evenheat offers the Icon, Icon+ and TAP II touchscreens and the push-button Rampmaster II; the multi-zone HF kilns use the TAP I, Icon+ or Rampmaster II. Evenheat's Quiet Drive solid-state relay option gives tighter temperature control and longer element life.
Low fire only: the oval RM 2522 and RM 2541 top out at cone 03 (2000°F), so they're for low-fire clay and glazes, not cone 6.
Firing glass? See our Evenheat glass kiln comparison.
