Fredrickson Front-Loading Commercial Electric Kilns

Fredrickson Kilns are heavy duty commercial grade production kilns.

We offer their complete line and custom and car kiln versions of these kilns.

*Note: Car kilns exterior height is interior height plus 40 inches

Please call us toll-free to discuss your needs at 888.spi.clay. Learn more

INCLUDED:

Stainless steel door skin to resist corrosion :
Solid state relays are now standard. Solid state relays have a very long life and do not have the environmental hazards of traditional mercury relays.
Fredrickson kiln are all now equipped with Bartlett Genesis controller.
Also now included over-temp safety relays

FREDRICKSON FRONT LOADING ELECTRIC KILNS

FREDRICKSON FRONT LOADING COMMERCIAL ELECTRIC KILNS are built to your specifications; for your process, temperature, load, physical size, and specific studio needs. Fredrickson craftsmen are versatile, building kilns for industry as well as artists.

*Note: Car kilns exterior height is interior height plus 40 inches

Equipment Specifications Table: *Note: Car kilns exterior height is interior height plus 40 inches

Cubic Ft	Interior (W D H)			Exterior (W D H)			Smallest Dim	Ship Wt (lbs)	Electrical (Amps)
Cubic Ft	W	D	H	W	D	H	Smallest Dim	Ship Wt (lbs)	240V 1P	240V 3P	208V 1P	208V 3P
4 1/2	20	20	20	44	37	68 1/2	31 1/2	1600	48 (4)	20 (3)	42 (4)	18 (3)
5 3/4	20	20	25	44	37	68 1/2	31 1/2	1800	60 (5)	42 (6)	52 (5)	36 (6)
8	24	24	24	48	41	70 1/2	35 1/2	2000	72 (6)	42 (6)	63 (6)	36 (6)
10 1/2	24	24	32	48	41	72 1/2	35 1/2	2100	72 (6)	42 (6)	63 (6)	36 (6)
11	27	27	27	51	44	72 1/2	38 1/2	2200	72 (6)	42 (6)	63 (6)	36 (6)
12	24	24	36	48	41	72 1/2	35 1/2	2200	72 (6)	63 (9)	84 (8)	54 (9)
15	27	27	36	51	44	72 1/2	38 1/2	2400	96 (8)	63 (9)	84 (8)	54 (9)
16	24	24	48	50	43	75 1/4	35 1/2	2400	144 (12)	84 (12)	125 (12)	72 (12)
20	27	27	48	51	44	75 1/4	38 1/2	2600	144 (12)	84 (12)	125 (12)	72 (12)
27	36	36	36	60	53	72 1/2	47 1/2	3000	144 (12)	84 (12)	125 (12)	90 (15)
28	32	32	48	56	49	75 1/4	43 1/2	3200	144 (12)	84 (12)	125 (12)	90 (15)

*Number in parentheses denotes number of elements.

Frederickson Kilns Ships F.O.B. Alfred, NY 14802

Note:

KILNS WITH INTERIOR LESS THAN 32" WILL HAVE 2 ZONES

KILNS WITH INTERIOR MORE THAN 32" WILL HAVE 3ZONES

KILNS WITH 480V/3PH WIRING MAY HAVE TWO OR THREE ZONES DEPENDING ON VARIABLES OTHER THAN JUST SIZE

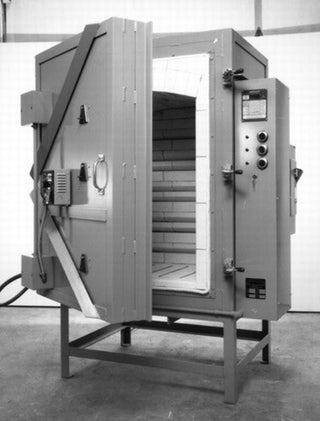

Note: Pictures show kilns with infinite switches which are no longer used on these kilns.

STANDARD FEATURES

7” Insulating Refractory
1/4” Angle Steel Frames
Replaceable Door Seal
Adjustable Door Hinges
Adjustable Door Clamps
Kanthal A-1 Elements
Electric Box Cooling Fan
Mercury Displacement Relays
Door Activated Shut Off
Arch Roof with Cast Backup
2400 Degree Refractory

OPTIONAL FEATURES

Digital Controller
Multi-Zone Control
Watlow Backup Limit Control
Kiln Vent Systems
480 Volt Systems
Separate Stands
Casters
Lifting Rings
Remote Mount Control Panel
Shuttle Kilns
Top Loaders

Fredrickson Kilns Specifications
