Sheffield Pottery Inc.

Evenheat RM II 1210 120 volt China Painting Kiln

Save $295.00
Regular price $1,975.00 $1,680.00
Unit price
per
SKU : EVERM1210
Free Shipping Eligible on Orders Over $89
Availability: 4-6 Weeks
Availability

Shipping calculated at checkout.
  • Free ShippingLower 48 · orders $89+
  • Free InsuranceEvery order covered to your door
  • Kiln Experts on StaffCall 888-774-2529
  • Since 194680 years serving potters

See full specifications

Evenheat RM II 1210 120 volt Cone 07 China Painting Kiln

☎︎Call us to speak to one of our kiln expertsLet us help guide you to the right kiln for your needs!(888) 774-2529We are available 8:30 – 5:00 ESTLeave a message after hours with name, number, and the best time for us to call you back.Sheffield Pottery · Since 1946

The RM II 1210 is designed for decals and china painting up to 1800°F (982°C), cone 07. Its small size, depth and 120V operation make it perfect for the china and porcelain painting studio.

The RM II 1210 is automatically controlled with our TAP Touchscreen, Genesis Touchscreen, Set-Pro or Rampmaster II programmable controls. Each is designed for easy programming and excellent firing results. Order yours with our Quiet Drive Solid State output option for tight temperature control and longer element life.


Base price is with 3 key Set Pro Controller.

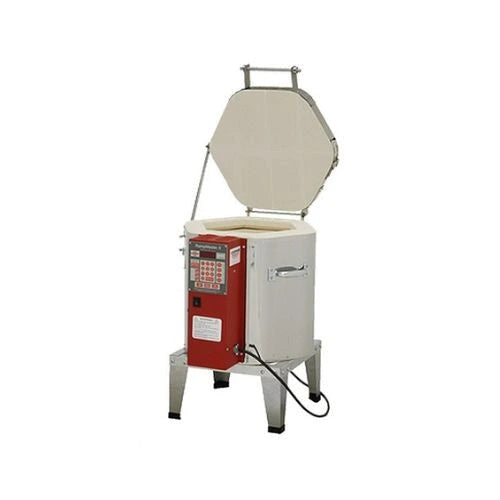

12 Key Ramp Master shown in photo.

Evenheat Kiln RM II 1210

11.25" Dia. x 13.5" Deep - .86 cubic feet
(28.6cm Dia. x 34.3cm Deep - 24.4L)
Operating Voltage: 120V
Amperage: 19A
Watts: 2280W
Power Cord Plug Style: NEMA 5-20P
Ship Weight: 70lb (32kg)

TUV listed (UL 499) United States and Canada



  • 2 Position Lid Vent
  • 2-1/2" Brick Construction
  • Access Port (Pat. Pend.)
  • Corner Mounting Technique
  • Excellent Temperature Distribution
  • Full Stainless Jacket
  • Lid Security Bar
  • Multiple Control Options
  • Properly Designed Stands
  • Swing Away Peephole Cover
  • Swing View Adjustable Control
  • Wonderful Lid Handle

2 Position Lid Vent

The RM II 1210 is equipped with a 2 position lid vent.

2-1/2" Brick Construction

The RM II 1210 is constructed entirely of high quality, US domestic 2-1/2" firebrick.

Access Port (Pat. Pend.)

The RM II 1210 incorporates Evenheat's new relay access port (Pat. Pend.) for simple, no-panel-off relay replacement.

Simply remove the plate to gain access to the service part. There's no need to remove or swing the entire control panel out of the way and dig into the internal wiring. It's absolutely simple and effective and all it takes is a simple screwdriver!

Corner Mounting Technique

The corners of the kiln body and lid provide excellent strength for mounting. We install our load bearing hinge and lid handle brackets on these corners for this reason. Longer life, high reliability: solid design makes a difference.

Excellent Temperature Distribution

Evenheat kilns are true to their name and the RM II 1210 is no different. Our designs are well known for their excellent temperature uniformity. they're done well and you'll appreciate the performance.

Full Stainless Jacket

Multi-section kilns were conceived to lower production costs for the kiln manufacturer. While this is a worthy goal it comes at the cost of kiln quality. It's a trade off we're not willing to make. We build our kilns with full stainless jackets from top to bottom. Full stainless jackets mean absolutely solid, life extending construction. There are no leaks, no shifting and no weakness. Insist on Full Stainless Jackets for true build quality.

Lid Security Bar

The RM II 1210 is provided with a lid security bar that positively keeps the lid in the open position. Simple one handed operation is made even easier with our well designed lid handle.

Multiple Control Options

Evenheat works closely with control manufacturers Bartlett Instruments and SDS Industries to bring you the best in performance, features and programming ease.

Control Options Include:

TAP Touchscreen, full featured touchscreen control with user-defined and preset programs for glass, metal clay and ceramic. Also features full-text graphics, cost per firing, and graphing along with wi-fi compatibility with web and mobile apps and more.

Genesis Touchscreen, full featured touchscreen control with user-defined and preset programs.

Rampmaster 3 (RM3), full featured control with user-defined and preset programs for glass. Features a 4 digit display.

Economical Set-Pro, 3 button control with user-defined and preset programs for glass, metal clay and ceramic. Features a 4 digit display.

Properly Designed Stands

We don't design our stands to fit into our kilns for shipping. We design our stands to support our kilns in use. Our stands properly distribute the weight of the kiln and are made wide to prevent tipping or offsetting. You won't find our stands in our kilns but you'll be happy to know they're beneath them.

Swing Away Peephole Cover

Our kiln designs feature swing-away peephole covers as opposed to plugs. Plugs get lost and they get broken. Our attached peephole covers remain on the kiln and simply swing open and closed. You won't lose them and they certainly won't break.

Swing View Adjustable Control

The Swing View Adjustable Control is a pivoting, swing-up enclosure that allows the user to rotate the control to a comfortable viewing and programming angle. it is that simple. You're going to really enjoy this feature.

The Swing View Adjustable Control is stock equipped on the RM II 1210 with TAP or Rampmaster controls.

Wonderful Lid Handle

We love handles. Handles have to be properly sized and shaped for the job. Our lid handle makes this point by offering an 8" handle that's easy to grasp and operate. This wide, corner mounted handle allows for confident and easy lifting, even with a gloved hand. It's unlike any other and it's a joy to use.

Kiln Buyers Guide Not sure which kiln fits your work? Sizing, voltage, controllers and more, explained. Read the guide →

Evenheat Ceramic Kiln Model Comparison

Evenheat pottery kilns are top-loading electric kilns with a digital controller. They come in two families: RM kilns fire to cone 8 (2300°F), and HF (High Fire) kilns fire to cone 10 (2350°F). The charts below compare every Evenheat ceramic kiln we sell, using Evenheat's published specs for its standard build. That's 240-volt, single-phase power unless a kiln is marked 120V.

Which Evenheat ceramic kiln should I buy?

  • First kiln for a home studioThe RM 1822 for cone 6 work. It's Evenheat's most popular personal-size kiln and plugs into a NEMA 6-50 outlet. Firing to cone 10? Look at the HF 1818, which draws 28 amps on a NEMA 6-30 plug.
  • Studios and schoolsThe RM 2329 (7.5 cu ft, cone 8) is Evenheat's most popular studio kiln. The HF 2327 (7.0 cu ft, cone 10) is its best-selling high fire kiln, with multi-zone control and the Dyna-Lift lid lift.
  • Easy loadingThe 18"- and 22"-deep kilns keep the floor within reach: the HF 2318 and HF 2918 for cone 10, or the RM 2322 and RM 2922 for cone 8, with the rim only 33" up.
  • China painting and porcelainThe RM 1413 is Evenheat's most popular china painting kiln. On a 120-volt outlet, choose the RM 1210 for china paint to cone 07 or the HF 810 for cone 8.
How to read an Evenheat model number
  • RM kilns fire to cone 8 (2300°F). We list them as RM II. HF (High Fire) kilns are built with 3" firebrick and fire to cone 10 (2350°F).
  • On the round kilns from the 1413 up, the first two digits are about the chamber's width in inches and the last two are about its depth.
  • 1210-B models are the 240-volt versions of the small 1210 chamber, built for porcelain bisque as well as china paint. The plain RM 1210 runs on 120 volts.

For example, the HF 2327 is a high-fire kiln about 23" across (23.5") and 27" deep.

Model Inside (width × depth) Capacity Max temp Amps (240V) Hookup Best for
RM 1813 17.5" × 13.5" 2.0 cu ft Cone 8 (2300°F) 18 NEMA 6-20 plug Wider pieces at an easy, shallow reach
HF 1813 17.5" × 13.5" 2.0 cu ft Cone 10 (2350°F) 21 NEMA 6-30 plug A small studio that fires to cone 10
HF 1818Evenheat's most popular cone 10 personal size 17.5" × 18" 2.7 cu ft Cone 10 (2350°F) 28 NEMA 6-30 plug Cone 10 in a home studio, with multi-zone control
RM 1822Evenheat's most popular personal size 17.5" × 22.25" 3.3 cu ft Cone 8 (2300°F) 30 NEMA 6-50 plug Home studios: big enough to fill, small enough to fire a partial load
HF 2318 23.5" × 18" 4.7 cu ft Cone 10 (2350°F) 31 NEMA 6-50 plug Studio width at a waist-high 18" depth, with Dyna-Lift
RM 2322 23.5" × 22.25" 5.8 cu ft Cone 8 (2300°F) 39 NEMA 6-50 plug Studio width with a rim only 33" off the floor
HF 2327Evenheat's best-selling high fire kiln 23.5" × 27" 7.0 cu ft Cone 10 (2350°F) 48 NEMA 6-50 plug Studios that fire cone 10 often, with multi-zone control and Dyna-Lift
RM 2329Evenheat's most popular studio size 23.5" × 29" 7.5 cu ft Cone 8 (2300°F) 45 NEMA 6-50 plug Busy studios, schools and businesses firing to cone 6
HF 2918 29" × 18" 7.0 cu ft Cone 10 (2350°F) 48 NEMA 6-50 plug Seven cubic feet of cone 10 at an easy 18" depth, with Dyna-Lift
RM 2922 29" × 22.25" 8.7 cu ft Cone 8 (2300°F) 44 NEMA 6-50 plug Big loads without a deep reach; the rim is only 33" up
HF 2927 29" × 27" 10.5 cu ft Cone 10 (2350°F) 59 Direct wire Evenheat's largest cone 10 kiln, with multi-zone control and Dyna-Lift
RM 2929 29" × 29" 11.3 cu ft Cone 8 (2300°F) 56 Direct wire The biggest cone 8 loads for production studios and schools
RM 2522Oval, low fire 41" × 25.25" oval, 22.25" deep 11.2 cu ft Cone 03 (2000°F) 47 NEMA 6-50 plug Low-fire production, platters and long forms at a 22" depth
RM 2541Oval, low fire 41" × 25.25" oval, 29" deep 14.4 cu ft Cone 03 (2000°F) 60 Direct wire Evenheat's largest ceramic kiln, for high-volume low fire

China painting, porcelain and test kilns

Model Inside (width × depth) Capacity Max temp Power Hookup Best for
RM 810 11.25" × 9" 0.57 cu ft Cone 5½ (2200°F) 120V, 18 amps NEMA 5-20 plug Test tiles, china paint and small pieces on 120 volts
HF 810 11.25" × 9" 0.57 cu ft Cone 8 (2300°F) 120V, 18 amps NEMA 5-20 plug Porcelain, china paint and test firing to cone 8 on 120 volts
RM 1210 11.25" × 13.5" 0.86 cu ft Cone 07 (1800°F) 120V, 19 amps NEMA 5-20 plug China painting and decals
RM 1210-B 11.25" × 13.5" 0.86 cu ft Cone 8 (2300°F) 240V, 13 amps NEMA 6-20 plug Porcelain bisque and china paint
HF 1210-B 11.25" × 13.5" 0.86 cu ft Cone 10 (2350°F) 240V, 13 amps NEMA 6-20 plug Porcelain bisque and china paint, with 3" brick and cone 10 reach
RM 1413Evenheat's most popular china painting kiln 14.5" × 13.5" 1.3 cu ft Cone 8 (2300°F) 240V, 15 amps NEMA 6-20 plug China painting and porcelain, in a kiln that fits any studio
HF 1413 14.5" × 13.5" 1.3 cu ft Cone 10 (2350°F) 240V, 15 amps NEMA 6-20 plug The 3" brick version of the RM 1413, for cone 10 porcelain

Specs are Evenheat's ratings for its standard build: 240V single-phase, or 120V where shown. The 120V kilns need a fully rated 20-amp breaker. Evenheat builds some models for 208V, 220V, 230V or 3-phase power by request, and the amperage changes with the voltage, so tell us your voltage when you order.

RM vs. HF, and controller options

HF (High Fire) kilns use 3" firebrick and fire to cone 10. Evenheat keeps the chamber the same size as the matching RM kiln and makes the outside larger, so standard kiln furniture still fits. The HF 1818 and the larger HF kilns add multi-zone control, with more than one thermocouple for even heat from top to bottom. The HF 2318, 2327, 2918 and 2927 come with Evenheat's Dyna-Lift lid lift assist.

Controllers: Evenheat offers the Icon, Icon+ and TAP II touchscreens and the push-button Rampmaster II; the multi-zone HF kilns use the TAP I, Icon+ or Rampmaster II. Evenheat's Quiet Drive solid-state relay option gives tighter temperature control and longer element life.

Low fire only: the oval RM 2522 and RM 2541 top out at cone 03 (2000°F), so they're for low-fire clay and glazes, not cone 6.

Firing glass? See our Evenheat glass kiln comparison.
