Specifications

Chamber Dimensions:

• 11.25" Diameter x 13.5" Deep - 0.86 Cubic Feet
• (28.6cm Diameter x 34.3cm Deep - 24.4L)

Outside Dimensions:

• 22.50" D x 16.25" W x 26.5" H (with 8" stand)
• (57.2cm D x 41.3m W x 67.3cm H)

Maximum Use Temperature:

• 2300°F (1260°C) / Cone 8

Standard Electrical:

• 240 Volts, 13 Amps, 3120 Watts, 50/60Hz, Single Phase
• Power Cord Plug Configuration - NEMA 6-20

Weight:

• 58lb. (26.4Kg) - Approx.

Features

Top Load

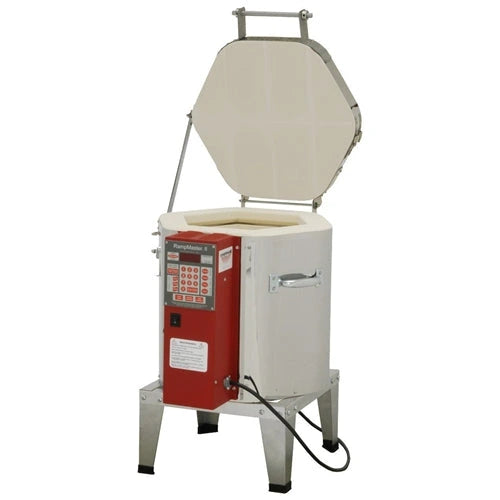

The RM 1210-B is a top loading design and offers a chamber 11.25" diameter x 13.5" deep.

Wonderful Lid Handle

We love handles. Handles have to be properly sized and shaped for the job. Our lid handles make this point by offering an 8" handle that's easy to grasp and operate.

These wide, corner mounted handle allows for confident and easy lifting, even with a gloved hand. It's unlike any other and it's a joy to use.

2 Position Lid Vent

The RM 1210-B is equipped with a 2 position lid vent. Perfect for speeding up the cooling process.

Swing View Equipped

The RM 1210-B temperature controls are fitted to our Swing View Adjustable Enclosure.

The swing view is a pivoting, swing-up enclosure that allows you to rotate the control to a comfortable viewing and programming angle. Once you're done, lay it back down to see it from across your studio. It's that simple.

The swing view pairs well with touchscreen controls like the TAP II, Icon+ and Icon as viewing angle can be perfectly aligned. You'll love it.

Swing-Away Peephole Covers

Our kiln designs feature swing-away peephole covers as opposed to plugs.

Plugs get lost and they get broken. Our attached peephole covers remain on the kiln and simply swing open and closed. You won't lose them and they certainly won't break.

Lid Prop

The RM 1210-B is provided with a lid prop bar that positively keeps the lid in the open position. Simple operation is made even easier with our well designed lid handle.

Relay Access Port

The RM 1210-B  incorporates our Relay Access Port for simple, no-panel-off relay replacement.

Simply remove the access plate to gain access to the mechanical relays. There's no need to remove the control panel and dig into the internal wiring. It's absolutely simple and effective and all it takes is a screwdriver!

It's a given that mechanical relays will fail at some point. This relay access port really comes in handy when they do.

Full Stainless Steel Jackets

Multi-section, multi-jacketed kilns were conceived to lower production costs for the kiln manufacturer and to make life easier for the person installing the kiln. These are worthy goals but they come at the cost of kiln quality. It's a trade off we're not willing to make.

We build our kilns with full stainless jackets from top to bottom. Full stainless jackets mean absolutely solid, life extending construction. There are no leaks, no shifting and no weakness. Insist on Full Stainless Jackets for true build quality.

Build Options

Multiple Control Options

The RM 1210-B is available in a variety of controls including the Icon, Icon+, Tap II and Ramp master II.

At Evenheat we take the best control platforms on the market and make them even better by adding Special Limits thermocouples for precise temperature sensing and non-metallic faceplates for stellar Wi-Fi reception for on-line Apps. Visit our Controls tab to learn more about our controls and why they represent the very best that you can get.

Quiet Drive Solid State Relay Option

The RM 1210-B is available with our Quiet Drive Solid State Relay option.

Our Quiet Drive Solid State Relay System offers tight temperature control, high reliability and increased heating element life. The Quiet Drive is arguably the best designed and best performing solid state system on the market.

Voltage Options

Production for the RM 1210-B is 240V.

All controls available on the RM 1210-B will operate properly on both 50Hz and 60Hz line frequencies. To say it another way, line frequency has no effect. It doesn't matter.

Evenheat recommends that you check your operating voltage before ordering or placing the kiln in service.

Voltage Phase Options

The RM 1210-B is not available in 3 phase Delta or Wye.
