Voltage Phase Options
The HF 2918 is available in 3 phase Delta and Wye (380V, 400V and 415V) designs by request.
Your cart
Your cart is empty

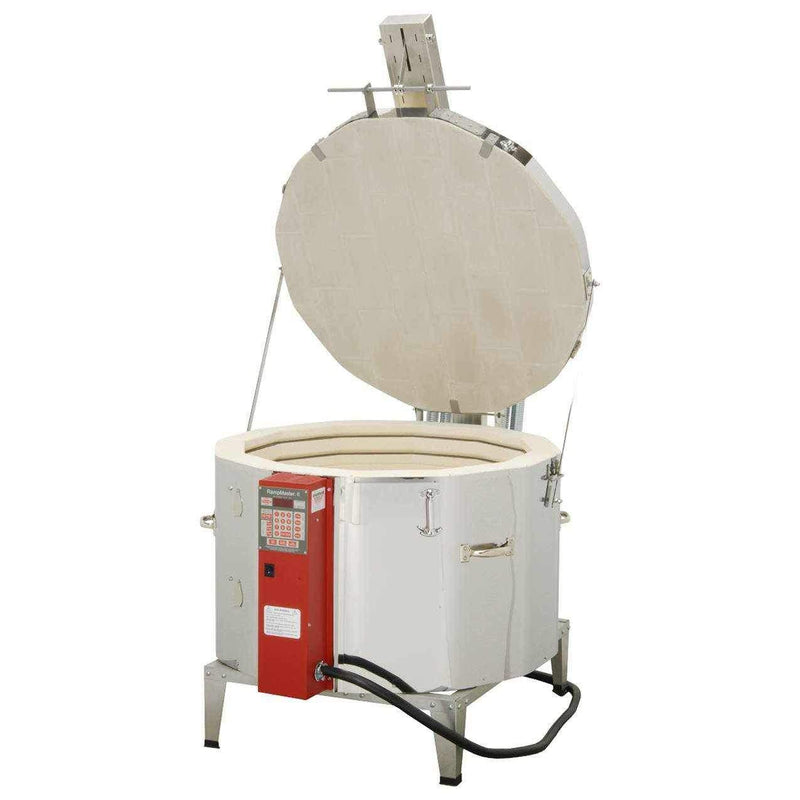

The HF 2918 offers the ceramic artist the volume of a standard studio kiln (around 7 cubic feet) with a very easy to load 18" depth. Easy to load depth is no more than waist high. You'll love it.
The HF 2918 features our Multi-Zone TAP I, Icon+ and Rampmaster II controls and is standard equipped with our exclusive Swing View Adjustable Viewing which you will absolutely enjoy.
Order yours with our Quiet Drive Solid State relay option for tight temperature control and longer element life.
The HF 2918 is a top loading design and offers a chamber 29" diameter x 18 deep. The 18" deep chamber makes it wonderfully easy to load and unload. The rim of the chamber is 29" from the floor which is waist height or lower. You'll love it.

To assist in opening and closing we have equipped the HF 2918 with our patented Dyna-Lift lid lift assist.
The Dyna-Lift lightens the force needed to operate the kiln lid by attaching and lifting at a single point, the lid handle. The lift assist is not attached to the kiln chamber at all. All heavy lifting forces are directed entirely to the kiln stand and not the kiln itself. It's a wonderful design that places no lifting forces onto the chamber which would only weaken it.
The Dyna-Lift Lid Lift Assist is the best designed, best performing lift assist available.

The HF 2918 is designed with multi-zone control. Multi-Zone control means the kiln uses more than one thermocouple (temperature sensor) to control the heat in the firing chamber.
The kiln chamber is divided into heat zones, each with its own thermocouple. Each zone temperature is controlled very precisely. The end result is a very even temperature distribution from top to bottom.

The HF 2918 is equipped with a 2 position lid vent. Perfect for speeding up the cooling process.

The HF 2918 temperature controls are fitted to our Swing View Adjustable Enclosure.
The swing view is a pivoting, swing-up enclosure that allows you to rotate the control to a comfortable viewing and programming angle. Once you're done, lay it back down to see it from across your studio. It's that simple.
The swing view pairs well with touchscreen controls like the TAP I and Icon+ as viewing angle can be perfectly aligned. You'll love it.

Historically kiln designs were based on 2-1/2" firebrick. As 3" firebrick began to show favor in high temperature designs many kiln manufacturers simply reduced the firing chamber size to accommodate the thicker firebrick while leaving the outside dimensions the same.
At Evenheat we took a different direction. Instead of making the chamber smaller we kept it the same while increasing the outside dimensions. In this way there is no loss in chamber volume and common, standard kiln furniture would continue to fit. Nice.

Our kiln designs feature swing-away peephole covers as opposed to plugs.
Plugs get lost and they get broken. Our attached peephole covers remain on the kiln and simply swing open and closed. You won't lose them and they certainly won't break.

The HF 2918 is provided with lid prop bars that positively keeps the lid in the open position. Simple operation is made even easier with our well designed lid handle.

The HF 2918 incorporates our Relay Access Port for simple, no-panel-off relay replacement.
Simply remove the access plate to gain access to the mechanical relays. There's no need to remove the control panel and dig into the internal wiring. It's absolutely simple and effective and all it takes is a screwdriver!
It's a given that mechanical relays will fail at some point. This relay access port really comes in handy when they do.

Multi-section, multi-jacketed kilns were conceived to lower production costs for the kiln manufacturer and to make life easier for the person installing the kiln. These are worthy goals but they come at the cost of kiln quality. It's a trade off we're not willing to make.
We build our kilns with full stainless jackets from top to bottom. Full stainless jackets mean absolutely solid, life extending construction. There are no leaks, no shifting and no weakness. Insist on Full Stainless Jackets for true build quality.

The HF 2918 is available in a variety of Multi-Zone controls including the TAP I, Icon+ and Rampmaster II. Multi-Zone controls use multiple thermocouples (temperature sensors) to provide excellent temperature distribution throughout the firing chamber.
At Evenheat we take the best control platforms on the market and make them even better by adding Special Limits thermocouples for precise temperature sensing and non-metallic faceplates for stellar Wi-Fi reception for on-line Apps. Visit our Controls tab to learn more about our controls and why they represent the very best that you can get.

The HF 2918 is available with our Quiet Drive Solid State Relay option.
Our Quiet Drive Solid State Relay System offers tight temperature control, high reliability and increased heating element life. We fully expect our solid state relay to last the life of the unit. You want this!

Production for the HF 2918 is 240V.
We do offer to build in 200V, 208V, 220V, 230V, 380V, 400V and 415V by request.
All controls available on the HF 2918 will operate properly on both 50Hz and 60Hz line frequencies. To say it another way, line frequency has no effect. It doesn't matter.
Evenheat recommends that you check your operating voltage before ordering or placing the kiln in service.
The HF 2918 is available in 3 phase Delta and Wye (380V, 400V and 415V) designs by request.
Kiln Buyers Guide
Not sure which kiln fits your work? Sizing, voltage, controllers and more, explained.
Read the guide →
Evenheat pottery kilns are top-loading electric kilns with a digital controller. They come in two families: RM kilns fire to cone 8 (2300°F), and HF (High Fire) kilns fire to cone 10 (2350°F). The charts below compare every Evenheat ceramic kiln we sell, using Evenheat's published specs for its standard build. That's 240-volt, single-phase power unless a kiln is marked 120V.
For example, the HF 2327 is a high-fire kiln about 23" across (23.5") and 27" deep.
| Model | Inside (width × depth) | Capacity | Max temp | Amps (240V) | Hookup | Best for |
|---|---|---|---|---|---|---|
| RM 1813 | 17.5" × 13.5" | 2.0 cu ft | Cone 8 (2300°F) | 18 | NEMA 6-20 plug | Wider pieces at an easy, shallow reach |
| HF 1813 | 17.5" × 13.5" | 2.0 cu ft | Cone 10 (2350°F) | 21 | NEMA 6-30 plug | A small studio that fires to cone 10 |
| HF 1818Evenheat's most popular cone 10 personal size | 17.5" × 18" | 2.7 cu ft | Cone 10 (2350°F) | 28 | NEMA 6-30 plug | Cone 10 in a home studio, with multi-zone control |
| RM 1822Evenheat's most popular personal size | 17.5" × 22.25" | 3.3 cu ft | Cone 8 (2300°F) | 30 | NEMA 6-50 plug | Home studios: big enough to fill, small enough to fire a partial load |
| HF 2318 | 23.5" × 18" | 4.7 cu ft | Cone 10 (2350°F) | 31 | NEMA 6-50 plug | Studio width at a waist-high 18" depth, with Dyna-Lift |
| RM 2322 | 23.5" × 22.25" | 5.8 cu ft | Cone 8 (2300°F) | 39 | NEMA 6-50 plug | Studio width with a rim only 33" off the floor |
| HF 2327Evenheat's best-selling high fire kiln | 23.5" × 27" | 7.0 cu ft | Cone 10 (2350°F) | 48 | NEMA 6-50 plug | Studios that fire cone 10 often, with multi-zone control and Dyna-Lift |
| RM 2329Evenheat's most popular studio size | 23.5" × 29" | 7.5 cu ft | Cone 8 (2300°F) | 45 | NEMA 6-50 plug | Busy studios, schools and businesses firing to cone 6 |
| HF 2918 | 29" × 18" | 7.0 cu ft | Cone 10 (2350°F) | 48 | NEMA 6-50 plug | Seven cubic feet of cone 10 at an easy 18" depth, with Dyna-Lift |
| RM 2922 | 29" × 22.25" | 8.7 cu ft | Cone 8 (2300°F) | 44 | NEMA 6-50 plug | Big loads without a deep reach; the rim is only 33" up |
| HF 2927 | 29" × 27" | 10.5 cu ft | Cone 10 (2350°F) | 59 | Direct wire | Evenheat's largest cone 10 kiln, with multi-zone control and Dyna-Lift |
| RM 2929 | 29" × 29" | 11.3 cu ft | Cone 8 (2300°F) | 56 | Direct wire | The biggest cone 8 loads for production studios and schools |
| RM 2522Oval, low fire | 41" × 25.25" oval, 22.25" deep | 11.2 cu ft | Cone 03 (2000°F) | 47 | NEMA 6-50 plug | Low-fire production, platters and long forms at a 22" depth |
| RM 2541Oval, low fire | 41" × 25.25" oval, 29" deep | 14.4 cu ft | Cone 03 (2000°F) | 60 | Direct wire | Evenheat's largest ceramic kiln, for high-volume low fire |
| Model | Inside (width × depth) | Capacity | Max temp | Power | Hookup | Best for |
|---|---|---|---|---|---|---|
| RM 810 | 11.25" × 9" | 0.57 cu ft | Cone 5½ (2200°F) | 120V, 18 amps | NEMA 5-20 plug | Test tiles, china paint and small pieces on 120 volts |
| HF 810 | 11.25" × 9" | 0.57 cu ft | Cone 8 (2300°F) | 120V, 18 amps | NEMA 5-20 plug | Porcelain, china paint and test firing to cone 8 on 120 volts |
| RM 1210 | 11.25" × 13.5" | 0.86 cu ft | Cone 07 (1800°F) | 120V, 19 amps | NEMA 5-20 plug | China painting and decals |
| RM 1210-B | 11.25" × 13.5" | 0.86 cu ft | Cone 8 (2300°F) | 240V, 13 amps | NEMA 6-20 plug | Porcelain bisque and china paint |
| HF 1210-B | 11.25" × 13.5" | 0.86 cu ft | Cone 10 (2350°F) | 240V, 13 amps | NEMA 6-20 plug | Porcelain bisque and china paint, with 3" brick and cone 10 reach |
| RM 1413Evenheat's most popular china painting kiln | 14.5" × 13.5" | 1.3 cu ft | Cone 8 (2300°F) | 240V, 15 amps | NEMA 6-20 plug | China painting and porcelain, in a kiln that fits any studio |
| HF 1413 | 14.5" × 13.5" | 1.3 cu ft | Cone 10 (2350°F) | 240V, 15 amps | NEMA 6-20 plug | The 3" brick version of the RM 1413, for cone 10 porcelain |
Specs are Evenheat's ratings for its standard build: 240V single-phase, or 120V where shown. The 120V kilns need a fully rated 20-amp breaker. Evenheat builds some models for 208V, 220V, 230V or 3-phase power by request, and the amperage changes with the voltage, so tell us your voltage when you order.
HF (High Fire) kilns use 3" firebrick and fire to cone 10. Evenheat keeps the chamber the same size as the matching RM kiln and makes the outside larger, so standard kiln furniture still fits. The HF 1818 and the larger HF kilns add multi-zone control, with more than one thermocouple for even heat from top to bottom. The HF 2318, 2327, 2918 and 2927 come with Evenheat's Dyna-Lift lid lift assist.
Controllers: Evenheat offers the Icon, Icon+ and TAP II touchscreens and the push-button Rampmaster II; the multi-zone HF kilns use the TAP I, Icon+ or Rampmaster II. Evenheat's Quiet Drive solid-state relay option gives tighter temperature control and longer element life.
Low fire only: the oval RM 2522 and RM 2541 top out at cone 03 (2000°F), so they're for low-fire clay and glazes, not cone 6.
Firing glass? See our Evenheat glass kiln comparison.
