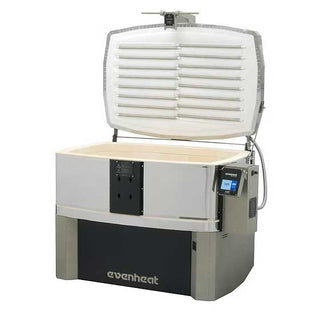

Evenheat Glass Kiln GTS 41

☎︎Call us to speak to one of our kiln expertsLet us help guide you to the right kiln for your needs!(888) 774-2529We are available 8:30 – 5:00 ESTLeave a message after hours with name, number, and the best time for us to call you back.Sheffield Pottery · Since 1946

Now standard with Solid State Quiet Drive relays!

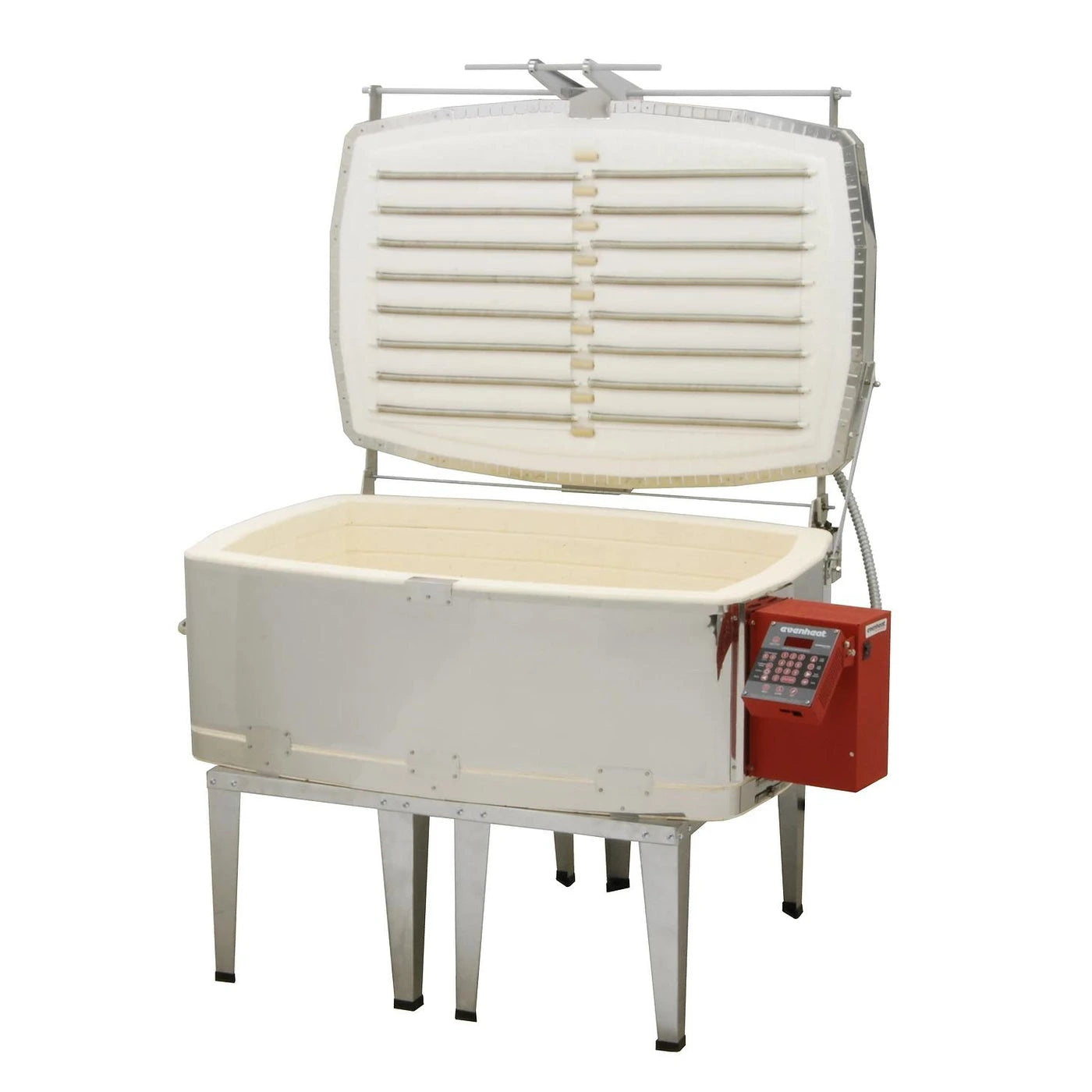

The GTS 41 is Evenheat's largest top loading glass kiln. The firing chamber dimensions exactly match the Studio Pro 41 to give you a large, uninterrupted firing surface. The lid on the GTS 41 is constructed of fiber for lightweight and fast operation. heating elements are surface mounted for maximum heat transfer and efficiency.

Evenheat Glass Kiln GTS 41 Specifications

Chamber Dimensions : 25.25" Long x 40.5" Wide x 13.5" Deep - 7.52 Cubic Feet (64.1cm Long x 102.9cm Wide x 34.3cm Deep - 213L)
Outer Dimensions 35.5" Long x 45.5" Wide x 37" High (90cm Deep x 115.5cm Wide x 94cm High) Maximum Temperature 1800°F (982°C)

Electrical
240 Volts, 45 Amps, 10,800 Watts, 60Hz, Single Phase
Power Cord Plug Configuration- NEMA 6-50
Note: Consult with an electrician for proper fuse panel, service wire size, receptacle, and fusing requirements. This model, used for its intended and expected purpose, would not be defined as "continuous use". Continuous use is defined as continuous, full power on for 3+ hours.
Model is available in 200V, 208V, 220V and 230V Model will operate properly on both 50Hz and 60Hz Model is available in 3 phase Delta and Y (380V, 400V and 415V) designs

Shipping Weight 365lb. (166Kg) - Approx.
Shipping Method Freight Truck

NRTL Agency Listing TUV Listed United States and Canada - Designed and Tested to CSA & U/L 499

Studio Pro models may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.




EVENHEAT GTS 41 FEATURES

Access Port (Pat. Pend.)

The GTS 41 Evenheat glass kiln incorporates the new relay access port (Pat. Pend.) for simple, no-panel-off relay replacement.

Simply remove the plate to gain access to the service part. There's no need to remove or swing the entire control panel out of the way and dig into the internal wiring. It's absolutely simple and effective and all it takes is a simple screwdriver!

Dyna-Lift Lid Lift Assist

The No Damage Lift Assist

Evenheat is proud to offer our patented Dyna-Lift lid lift assist for our large kiln for sale. (Patent No. 7,984,822)

The Dyna-Lift lightens the force needed to operate the kiln lid. It does so with ease and grace and with no negative effects upon the top loading kiln itself. Hallmarks of the design include no kiln body connection, single point lifting and emphasis on allowing the lid to act naturally.

The Dyna-Lift Lid Lift Assist is the best designed, best performing lift assist available.

Multiple Control Options

Evenheat works closely with control manufacturers Bartlett Instruments and SDS Industries to bring you the best in performance, features and programming ease.

Control Options Include:

TAP Touchscreen, full featured touchscreen control with user-defined and preset programs for glass, metal clay and ceramic. Also features full-text graphics, cost per firing, and graphing along with wi-fi compatibility with web and mobile apps and more.

Rampmaster 3 (RM3), full featured control with user-defined and preset programs for glass. Features a 4 digit display.

Economical Set-Pro, 3 button control with user-defined and preset programs for glass, metal clay and ceramic. Features a 4 digit display.

Swing View Adjustable Control

The Swing View Adjustable Control is a pivoting, swing-up enclosure that allows the user to rotate the Rampmaster control to a comfortable viewing and programming angle. It's that simple. You're going to really enjoy this feature. The Swing View Adjustable Control is stock equipped on all GTS 41's with Rampmaster control.

Wide Lid Handle

At Evenheat we love handles, we always have. Our wide lid handle illustrates this affection by offering a wide handle that's corner mounted and easy to operate, even with the gloved hand. It's unlike any other and it's a joy to use

Full Stainless Jacket

Multi-section kilns are designed to lower production costs for the kiln manufacturer. it is a worthy goal but it comes at the cost of kiln quality. It's a trade off we're not willing to make. We build our kilns with full stainless jackets from top to bottom. We build our Evenheat glass kilns with full stainless jackets from top to bottom. Full jackets mean absolutely solid, life extending construction. There are no leaks, no shifting, no buckles and no weakness. Insist on Full Stainless Jackets for true build quality.

Corner Mounting Technique

The corners of the kiln body and lid provide excellent strength for mounting. The flat sides of the kiln don't offer this strength, especially on oval shaped kilns. We install our load bearing hinge and lid handle brackets on these corners for this reason. Longer life, high reliability: solid design makes a difference with this large kiln for sale.

Properly Sized Stands

We don't design our stands to fit into our kilns for shipping. We design our stands to support our kilns in use. Our stands properly distribute the weight of the kiln and are made wide to prevent tipping or offsetting. You won't find our stands in our kilns but you'll be happy to know they're beneath them.

3 Position Lid Vent Option

The lightweight lid created by the Dyna-Lift option allows us to offer a 3 position lid vent system. Lid venting helps remove burn-off from adhesives and paints and comes in handy during the cooling process.

The 3 position lid vent is only available when used with the OPTIONAL Dyna-Lift. It is not a standard feature.

Large Size

The GTS 41 is a large kiln that fits well into private and commercial studio's. Those needing space for volume firing or want to keep their options open on piece size will appreciate the GTS 41.

Lid Security Bar Option

Dyna-Lift equipped kilns are provided with a lid prop bar that positively keeps the lid in the open position. Simple one handed operation is made even easier with our well designed lid handle.

The Lid Security Bar is only available when used with the OPTIONAL Dyna-Lift. It is not a standard feature.

Top and Side Fire Configuration

Evenheat pioneered the top and side fire glass kiln design. Top fire is essential in glass firing as it heats the glass surface uniformly. The addition of side fire provides heat to the lower portion of the kiln which helps to reduce and eliminate bubbles.

Kiln Buyers Guide Not sure which kiln fits your work? Sizing, voltage, controllers and more, explained. Read the guide →

Evenheat Glass Kiln Model Comparison

Evenheat glass kilns come in two styles. Studio Pro kilns have Evenheat's Dual Access design: the chamber lifts off the floor so you can build right on the shelf from the front, and the lid also opens from the top. GTS kilns are traditional top-loaders. The chart below compares the Evenheat glass kilns we sell, using Evenheat's published specs for its standard build.

Which Evenheat glass kiln should I buy?

  • First glass kiln on household powerThe Studio Pro 17, Evenheat's best-selling personal-size kiln, takes a 16" × 16" shelf on a 120-volt, 20-amp outlet. The Studio Pro 14 is a smaller start with a 13" × 13" shelf.
  • Build in place from the frontThe Studio Pro 24, 28 or 41. Lift the chamber and you get a wall-free shelf for placing glass, raking and roll-ups.
  • Classic top-loaderThe GTS 18 or GTS 23. They're built entirely of firebrick, which stores heat early in the firing to smooth out temperature swings, then releases it slowly for calm annealing.
  • Large panels and productionThe GTS 2541 or GTS 41. Both take a 38" × 22⅝" one-piece shelf or a two-piece half-shelf set.
Model Loading Inside Capacity Shelf Max temp Power Hookup Best for
Studio Pro 14 (120V / 240V) Front + top 14.5" × 14.5", 6.5" deep 0.80 cu ft 13" × 13" 1650°F 120V, 15 amps NEMA 5-20 plug Beginning glass artists and small studios
Studio Pro 17Evenheat's best-selling personal size Front + top 17" × 17", 6.5" deep 1.10 cu ft 16" × 16" 1650°F 120V, 18 amps NEMA 5-20 plug The biggest Evenheat chamber on 120 volts
Studio Pro 24 Front + top 24" × 24", 13.5" deep 4.2 cu ft 20" × 20" 1800°F 240V, 32 amps NEMA 6-50 plug Mid-size studios; a spring lift assist raises the chamber
Studio Pro 28 Front + top 28" × 28", 13.5" deep 5.8 cu ft 24" × 24" 1800°F 240V, 40 amps NEMA 6-50 plug Larger panels on a 4 sq ft shelf, with front access
Studio Pro 41 Front + top 40.5" × 25.25", 13.5" deep 7.52 cu ft 38" × 22⅝" 1800°F 240V, 45 amps NEMA 6-50 plug The largest Studio Pro, for big work built in place
GTS 18 Top 17.5" round, 13.5" deep 2.0 cu ft 15.5" round 1800°F 240V, 27 amps NEMA 6-30 plug A compact, all-firebrick kiln for fusing, slumping and casting
GTS 23 Top 23.5" round, 13.5" deep 3.5 cu ft 21" round 1800°F 240V, 30 amps NEMA 6-50 plug Evenheat's original all-firebrick studio glass kiln
GTS 2541Oval Top 41" × 25.25" oval, 13.5" deep 7.20 cu ft 38" × 22⅝" 1800°F 240V, 40 amps NEMA 6-50 plug Large panels in an all-firebrick kiln, with Dyna-Lift
GTS 41 Top 40.5" × 25.25", 13.5" deep 7.52 cu ft 38" × 22⅝" 1800°F 240V, 45 amps NEMA 6-50 plug Evenheat's largest top-loader, with a light fiber lid

Specs are Evenheat's ratings for its standard build. Depth is the inside height of the chamber. Shelf is the full shelf Evenheat sells for that model. The Studio Pro 14 and 17 plug into a 120-volt, 20-amp (NEMA 5-20) outlet, and Evenheat also builds them for 240 volts; we sell the Studio Pro 14 both ways. Larger models can be built for 208V or 3-phase power by request, and the amperage changes with the voltage, so tell us your voltage when you order.

Small and specialty Evenheat kilns

The Studio Pro STP is Evenheat's smallest Studio Pro: an 8" × 8" × 4.5" chamber that fires to 1800°F on a standard 120-volt plug, for jewelry, one-off pieces and small parts for larger work. The V8 is built as a vitrigraph kiln for pulling cane. It has an 8" × 8" × 6.5" chamber, takes pots up to 7½" across, fires to 2300°F and plugs into a standard 120-volt outlet. You can also order it with the vitrigraph base. We also carry the Evenheat Copper 120V kiln.

Controllers: Evenheat's glass kilns offer the Icon, Icon+ and TAP II touchscreens or the push-button Rampmaster 3, depending on the model. Quiet Drive solid-state relays come standard on the Studio Pro and GTS kilns above.

Making pottery? See our Evenheat ceramic kiln comparison.
