Evenheat Glass Kiln Studio Pro 17

Save $620.00
Regular price $3,100.00 $2,480.00
Unit price
per
SKU : EVESP17
Free Shipping Eligible on Orders Over $89
Availability: 4-6 Weeks
Availability

Shipping calculated at checkout.
  • Free ShippingLower 48 · orders $89+
  • Free InsuranceEvery order covered to your door
  • Kiln Experts on StaffCall 888-774-2529
  • Since 194680 years serving potters

See full specifications

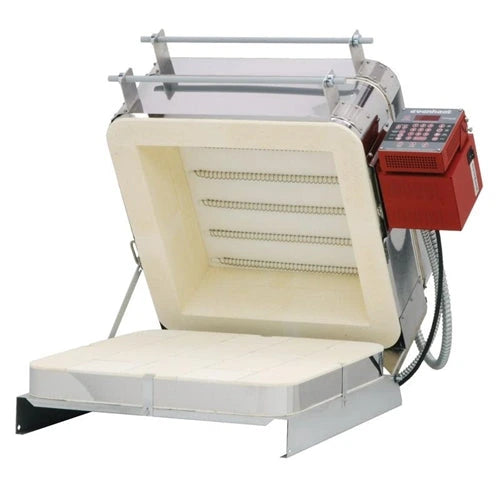

Evenheat Glass Kiln Studio Pro 17

☎︎Call us to speak to one of our kiln expertsLet us help guide you to the right kiln for your needs!(888) 774-2529We are available 8:30 – 5:00 ESTLeave a message after hours with name, number, and the best time for us to call you back.Sheffield Pottery · Since 1946

120 or 240 Volt

Largest 120V Home Studio Design

Measuring in at 17" x 17" x 6.5" the Studio Pro 17 RM is the largest 120V glass firing kiln in the industry and features surface mounted heating elements for maximum heat transfer, Superwool fiber lid for efficiency and increased firing speed potential, Dual Access Design for precision glass placement and our TAP Touchscreen, Genesis Touchscreen or Rampmaster controls.

Designed with structural firebrick and high efficiency superwool fiber, the Studio Pro 17 RM defines High Performance in a large Home Studio Design.

Order yours with our Quiet Drive Solid State output option for tight temperature control and longer element life.

Studio Pro 17 Glass Kiln SPECIFICATIONS
Chamber Size

17" W x 17" L x 6.5" D - 1.1 cubic feet
(43.2cm W x 43.2cm L x 16.5cm D - 31.1L)

North American Electrical Specifications
Operating Voltage: 120V
Amperage: 18A
Watts: 2160W
Power Cord Plug Style: NEMA 5-20P
Circuit Requires Fully Rated 20A Breaker

Global Electrical Specifications
Operating Voltage: 240V
Amperage: 10A
Watts: 2400W

Maximum Usable Temperature: 1650°F (900°C)
Ship Weight: 130lb (59kg)

TUV listed (UL 499) United States and Canada

  • Access Port (Pat. Pend.)
  • Front Access
  • Swing View Adjustable Control
  • Top Access
  • Wonderful Handles
  • Wall-Free Design
  • Multiple Control Options
  • Fiber Lid Construction
  • Corner Mounting Technique
  • Bench Top Operation
  • Floor Stand Included
  • Properly Sized Stand

Access Port (Pat. Pend.)

The Studio Pro 17 incorporates Evenheat's new relay access port (Pat. Pend.) for simple, no-panel-off relay replacement.

Simply remove the plate to gain access to the service part. There's no need to remove or swing the entire control panel out of the way and dig into the internal wiring. It's absolutely simple and effective and all it takes is a simple screwdriver!

Front Access

Front access is perfect for glass placement, particularly with glass that can't be disturbed once placed. Simply build on your shelf and close the chamber. Front access is also great when using manipulation tools that require a horizontal approach such as raking or glass roll ups.

The large 17" x 17" x 6.5" chamber of the Studio Pro 17 is the largest 120V glass kiln in the industry and uses a 16" x 16" shelf to give you the maximum usable area.

Swing View Adjustable Control

The Swing View Adjustable Control is a pivoting, swing-up enclosure that allows the user to rotate the control to a comfortable viewing and programming angle. it is that simple. You're going to really enjoy this feature.

The Swing View Adjustable Control is stock equipped on the Studio Pro 17 RM with TAP or Rampmaster controls.

Top access is excellent for venting. Top access also works very well when loading forms and comes in very handy when using manipulation tools that require a vertical approach such as glass embossing.

Wonderful Handles

We've fitted the Studio Pro 17 with two wonderfully wide and sturdy bar handles. These corner mounted handles are placed well away from the kiln for easy operation. you'll enjoy using them.

If you're familiar with Evenheat you know we love handles. Handles provide access and they should be designed for the job, be comfortable and easy to use.

Wall-Free Design

With front access, the Studio Pro 17 offers the artist a wall-free work surface. The wall-free design provides wide open space for the precision placement of your glass. There's nothing to fight or work around. It's an incredible design feature that essentially defines the Studio Pro 17.

The large 17" x 17" x 6.5" chamber of the Studio Pro 17 is the largest glass kiln in the industry and uses a 16" x 16" shelf to give you maximum usable area.

Multiple Control Options

Evenheat works closely with control manufacturers Bartlett Instruments and SDS Industries to bring you the best in performance, features and programming ease.

Control Options Include:

TAP Touchscreen, full featured touchscreen control with user-defined and preset programs for glass, metal clay and ceramic. Also features full-text graphics, cost per firing, and graphing along with wi-fi compatibility with web and mobile apps and more.

Genesis Touchscreen, full featured touchscreen control with user-defined and preset programs.

Rampmaster 3 (RM3), full featured control with user-defined and preset programs for glass. Features a 4 digit display.

Economical Set-Pro, 3 button control with user-defined and preset programs for glass, metal clay and ceramic. Features a 4 digit display.

Fiber Lid Construction

Evenheats fiber lid construction offers a faster heat-up than traditional 120V firebrick designs, about 50% faster. This faster firing potential reduces or completely eliminates devitrification.

The lid of the Studio Pro 17 is constructed of a special fiber material that provides excellent thermal properties along with light weight. This design allows the heating elements to be positioned on the surface for maximum heat transfer and firing efficiency. We also position these lid heating elements left to right to prevent them from sagging or bunching-up with repeated opening and closing. It's a small but important detail that guarantees performance and satisfaction over the life of the kiln.

The Studio Pro 17's well engineered lid uses a variety of design principles to deliver strength, material support and flex where needed. Strength is provided by the center lid truss and the shrewd use of metal bends. Material support is accomplished via a matrix of refractory rods and buttons. Flex is properly found in the stainless band ringing the lid itself. It works very well.

Corner Mounting Technique

The corners of the kiln body and lid provide excellent strength for mounting. The flat sides of the kiln don't offer this strength, especially on square shaped kilns. We install our load bearing hinge, lid vent and lid handle brackets on these corners for this reason. Longer life, high reliability: solid design makes a difference.

Bench Top Operation

The Studio Pro 17 is designed to be placed directly on your counter or bench top or within the included floor stand. The choice is yours.

Bench top operation positions the kiln at waist level for very comfortable front access use.

Please note that counters and bench tops must be constructed of non-combustible material.

Floor Stand Included

The Studio Pro 17 is supplied with a 16" stand for optional floor placement if desired. Floor stand operation positions the kiln perfectly for top access.

Properly Sized Stand

We don't design our stands to fit into our kilns for shipping. We design our stands to support our kilns in use. Our stands properly distribute the weight of the kiln and are made wide to prevent tipping or offsetting. You won't find our stands in our kilns but you'll be happy to know they're beneath them.

Kiln Buyers Guide Not sure which kiln fits your work? Sizing, voltage, controllers and more, explained. Read the guide →

Evenheat Glass Kiln Model Comparison

Evenheat glass kilns come in two styles. Studio Pro kilns have Evenheat's Dual Access design: the chamber lifts off the floor so you can build right on the shelf from the front, and the lid also opens from the top. GTS kilns are traditional top-loaders. The chart below compares the Evenheat glass kilns we sell, using Evenheat's published specs for its standard build.

Which Evenheat glass kiln should I buy?

  • First glass kiln on household powerThe Studio Pro 17, Evenheat's best-selling personal-size kiln, takes a 16" × 16" shelf on a 120-volt, 20-amp outlet. The Studio Pro 14 is a smaller start with a 13" × 13" shelf.
  • Build in place from the frontThe Studio Pro 24, 28 or 41. Lift the chamber and you get a wall-free shelf for placing glass, raking and roll-ups.
  • Classic top-loaderThe GTS 18 or GTS 23. They're built entirely of firebrick, which stores heat early in the firing to smooth out temperature swings, then releases it slowly for calm annealing.
  • Large panels and productionThe GTS 2541 or GTS 41. Both take a 38" × 22⅝" one-piece shelf or a two-piece half-shelf set.
Model Loading Inside Capacity Shelf Max temp Power Hookup Best for
Studio Pro 14 (120V / 240V) Front + top 14.5" × 14.5", 6.5" deep 0.80 cu ft 13" × 13" 1650°F 120V, 15 amps NEMA 5-20 plug Beginning glass artists and small studios
Studio Pro 17Evenheat's best-selling personal size Front + top 17" × 17", 6.5" deep 1.10 cu ft 16" × 16" 1650°F 120V, 18 amps NEMA 5-20 plug The biggest Evenheat chamber on 120 volts
Studio Pro 24 Front + top 24" × 24", 13.5" deep 4.2 cu ft 20" × 20" 1800°F 240V, 32 amps NEMA 6-50 plug Mid-size studios; a spring lift assist raises the chamber
Studio Pro 28 Front + top 28" × 28", 13.5" deep 5.8 cu ft 24" × 24" 1800°F 240V, 40 amps NEMA 6-50 plug Larger panels on a 4 sq ft shelf, with front access
Studio Pro 41 Front + top 40.5" × 25.25", 13.5" deep 7.52 cu ft 38" × 22⅝" 1800°F 240V, 45 amps NEMA 6-50 plug The largest Studio Pro, for big work built in place
GTS 18 Top 17.5" round, 13.5" deep 2.0 cu ft 15.5" round 1800°F 240V, 27 amps NEMA 6-30 plug A compact, all-firebrick kiln for fusing, slumping and casting
GTS 23 Top 23.5" round, 13.5" deep 3.5 cu ft 21" round 1800°F 240V, 30 amps NEMA 6-50 plug Evenheat's original all-firebrick studio glass kiln
GTS 2541Oval Top 41" × 25.25" oval, 13.5" deep 7.20 cu ft 38" × 22⅝" 1800°F 240V, 40 amps NEMA 6-50 plug Large panels in an all-firebrick kiln, with Dyna-Lift
GTS 41 Top 40.5" × 25.25", 13.5" deep 7.52 cu ft 38" × 22⅝" 1800°F 240V, 45 amps NEMA 6-50 plug Evenheat's largest top-loader, with a light fiber lid

Specs are Evenheat's ratings for its standard build. Depth is the inside height of the chamber. Shelf is the full shelf Evenheat sells for that model. The Studio Pro 14 and 17 plug into a 120-volt, 20-amp (NEMA 5-20) outlet, and Evenheat also builds them for 240 volts; we sell the Studio Pro 14 both ways. Larger models can be built for 208V or 3-phase power by request, and the amperage changes with the voltage, so tell us your voltage when you order.

Small and specialty Evenheat kilns

The Studio Pro STP is Evenheat's smallest Studio Pro: an 8" × 8" × 4.5" chamber that fires to 1800°F on a standard 120-volt plug, for jewelry, one-off pieces and small parts for larger work. The V8 is built as a vitrigraph kiln for pulling cane. It has an 8" × 8" × 6.5" chamber, takes pots up to 7½" across, fires to 2300°F and plugs into a standard 120-volt outlet. You can also order it with the vitrigraph base. We also carry the Evenheat Copper 120V kiln.

Controllers: Evenheat's glass kilns offer the Icon, Icon+ and TAP II touchscreens or the push-button Rampmaster 3, depending on the model. Quiet Drive solid-state relays come standard on the Studio Pro and GTS kilns above.
