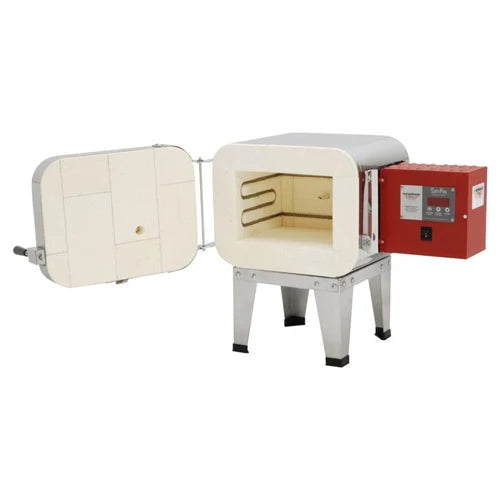

The Copper is a great 120V annealer for the beginners and small studios. With user friendly features like 120V operation and multiple control choices the Copper excels at ease of use. The Copper doesn't stop at annealing. It's quite capable of all glass techniques up to 2200°F. The Copper sits comfortably on table tops and includes a stand.
Order yours with our Quiet Drive Solid State output option for tight temperature control and longer element life.
SPECIFICATIONS
Chamber Size
10" W x 6.5" H x 9" D - .34 cubic feet
(25.4cm W x 16.5cm H x 23cm D - 9.6L)
North American Electrical Specifications
Operating Voltage: 120V
Amperage: 12A
Watts: 1440W
Power Cord Plug Style: NEMA 5-15P (Standard Household Plug)
Global Electrical Specifications
Operating Voltage: 240V
Amperage: 13A
Watts: 3120W
Maximum Usable Temperature: 2200°F (1204°C)
Ship Weight: 54lb (25kg)
TUV listed (UL 499) United States and Canada
FEATURES
- Access Port (Pat. Pend.)
- Cool-Touch Handle
- Corner Mounting Technique
- Excellent Temperature Distribution
- Front Access
- Full Stainless Jacket
- Multiple Control Options
- Responsive Thermocouples
- Standard Household Plug
Access Port (Pat. Pend.)
The Copper incorporates Evenheat's new relay access port (Pat. Pend.) for simple, no-panel-off relay replacement.
Simply remove the plate to gain access to the service part. There's no need to remove or swing the entire control panel out of the way and dig into the internal wiring. It's absolutely simple and effective and all it takes is a simple screwdriver!
Cool-Touch Handle
The Copper sports a large, easy to operate door handle. it is well placed and remains cool during use. The door handle also serves as a spring loaded door latch to keep the door positively closed. it is a very clean and well executed design that's a joy to use.
Corner Mounting Technique
The corners of the kiln body and door provide excellent strength for mounting. The flat sides of the kiln don't offer this strength. We install our load bearing hinge brackets on these corners for this very reason. Longer life, high reliability: solid design makes a difference.
Excellent Temperature Distribution
Evenheat glass kilns are true to their name and the Copper is no different. Our designs are well known for their excellent temperature uniformity. They're done well and you'll appreciate the performance.
Front Access
Annealing ovens typically use a front loading design and the Copper follows that lead. The door gets a lot of use and our design is rock solid. It won't sag, it travels freely and will do so for the life of the kiln.
Full Stainless Jacket
Multi-section kilns are designed to lower production costs for the kiln manufacturer. it is a worthy goal but it comes at the cost of kiln quality. It's a trade off we're not willing to make. We build our kilns with full stainless jackets from top to bottom. And in the case of the Copper: front to back. Full jackets mean absolutely solid, life extending construction. There are no leaks, no shifting, no buckles and no weakness. Insist on Full Stainless Jackets for true build quality.
Multiple Control Options
Evenheat works closely with control manufacturers Bartlett Instruments and SDS Industries to bring you the best in performance, features and programming ease.
Control Options Include:
TAP Touchscreen, full featured touchscreen control with user-defined and preset programs for glass, metal clay and ceramic. Also features full-text graphics, cost per firing, and graphing along with wi-fi compatibility with web and mobile apps and more.
Genesis Touchscreen, full featured touchscreen control with user-defined and preset programs.
Rampmaster 3 (RM3), full featured control with user-defined and preset programs for glass. Features a 4 digit display.
Economical Set-Pro, 3 button control with user-defined and preset programs for glass, metal clay and ceramic. Features a 4 digit display.
Responsive Thermocouples
Our thermocouples (temperature sensors) are chosen for their quick response and reliable performance. Our standard thermocouple is a Type K. Type S thermocouples are available by request on Rampmaster equipped models at additional charge.
Standard Household Plug
The Copper operates using standard, North American household voltage and is equipped with a standard North American household plug. We do offer the Copper in various global designs and fit these units with country specific cables and plugs.
Kiln Buyers Guide
Not sure which kiln fits your work? Sizing, voltage, controllers and more, explained.
Read the guide →
Evenheat Glass Kiln Model Comparison
Evenheat glass kilns come in two styles. Studio Pro kilns have Evenheat's Dual Access design: the chamber lifts off the floor so you can build right on the shelf from the front, and the lid also opens from the top. GTS kilns are traditional top-loaders. The chart below compares the Evenheat glass kilns we sell, using Evenheat's published specs for its standard build.
Which Evenheat glass kiln should I buy?
- First glass kiln on household powerThe Studio Pro 17, Evenheat's best-selling personal-size kiln, takes a 16" × 16" shelf on a 120-volt, 20-amp outlet. The Studio Pro 14 is a smaller start with a 13" × 13" shelf.
- Build in place from the frontThe Studio Pro 24, 28 or 41. Lift the chamber and you get a wall-free shelf for placing glass, raking and roll-ups.
- Classic top-loaderThe GTS 18 or GTS 23. They're built entirely of firebrick, which stores heat early in the firing to smooth out temperature swings, then releases it slowly for calm annealing.
- Large panels and productionThe GTS 2541 or GTS 41. Both take a 38" × 22⅝" one-piece shelf or a two-piece half-shelf set.
| Model | Loading | Inside | Capacity | Shelf | Max temp | Power | Hookup | Best for |
|---|---|---|---|---|---|---|---|---|
| Studio Pro 14 (120V / 240V) | Front + top | 14.5" × 14.5", 6.5" deep | 0.80 cu ft | 13" × 13" | 1650°F | 120V, 15 amps | NEMA 5-20 plug | Beginning glass artists and small studios |
| Studio Pro 17Evenheat's best-selling personal size | Front + top | 17" × 17", 6.5" deep | 1.10 cu ft | 16" × 16" | 1650°F | 120V, 18 amps | NEMA 5-20 plug | The biggest Evenheat chamber on 120 volts |
| Studio Pro 24 | Front + top | 24" × 24", 13.5" deep | 4.2 cu ft | 20" × 20" | 1800°F | 240V, 32 amps | NEMA 6-50 plug | Mid-size studios; a spring lift assist raises the chamber |
| Studio Pro 28 | Front + top | 28" × 28", 13.5" deep | 5.8 cu ft | 24" × 24" | 1800°F | 240V, 40 amps | NEMA 6-50 plug | Larger panels on a 4 sq ft shelf, with front access |
| Studio Pro 41 | Front + top | 40.5" × 25.25", 13.5" deep | 7.52 cu ft | 38" × 22⅝" | 1800°F | 240V, 45 amps | NEMA 6-50 plug | The largest Studio Pro, for big work built in place |
| GTS 18 | Top | 17.5" round, 13.5" deep | 2.0 cu ft | 15.5" round | 1800°F | 240V, 27 amps | NEMA 6-30 plug | A compact, all-firebrick kiln for fusing, slumping and casting |
| GTS 23 | Top | 23.5" round, 13.5" deep | 3.5 cu ft | 21" round | 1800°F | 240V, 30 amps | NEMA 6-50 plug | Evenheat's original all-firebrick studio glass kiln |
| GTS 2541Oval | Top | 41" × 25.25" oval, 13.5" deep | 7.20 cu ft | 38" × 22⅝" | 1800°F | 240V, 40 amps | NEMA 6-50 plug | Large panels in an all-firebrick kiln, with Dyna-Lift |
| GTS 41 | Top | 40.5" × 25.25", 13.5" deep | 7.52 cu ft | 38" × 22⅝" | 1800°F | 240V, 45 amps | NEMA 6-50 plug | Evenheat's largest top-loader, with a light fiber lid |
Specs are Evenheat's ratings for its standard build. Depth is the inside height of the chamber. Shelf is the full shelf Evenheat sells for that model. The Studio Pro 14 and 17 plug into a 120-volt, 20-amp (NEMA 5-20) outlet, and Evenheat also builds them for 240 volts; we sell the Studio Pro 14 both ways. Larger models can be built for 208V or 3-phase power by request, and the amperage changes with the voltage, so tell us your voltage when you order.
Small and specialty Evenheat kilns
The Studio Pro STP is Evenheat's smallest Studio Pro: an 8" × 8" × 4.5" chamber that fires to 1800°F on a standard 120-volt plug, for jewelry, one-off pieces and small parts for larger work. The V8 is built as a vitrigraph kiln for pulling cane. It has an 8" × 8" × 6.5" chamber, takes pots up to 7½" across, fires to 2300°F and plugs into a standard 120-volt outlet. You can also order it with the vitrigraph base. We also carry the Evenheat Copper 120V kiln.
Controllers: Evenheat's glass kilns offer the Icon, Icon+ and TAP II touchscreens or the push-button Rampmaster 3, depending on the model. Quiet Drive solid-state relays come standard on the Studio Pro and GTS kilns above.
Making pottery? See our Evenheat ceramic kiln comparison.
