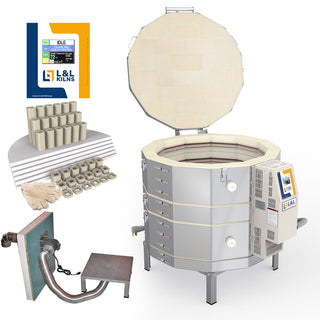

L&L e28M-3 Easy-Fire Kiln Package with Vent, Furniture and Genesis Touchscreen
- Fires to
- Cone 10
- Power
- 240 or 208 V
- Size
- Large and production
- Loading
- Top-loading
- Made for
- Pottery
- What you get
- Ready-to-fire package
Free Shipping Eligible on Orders Over $50
- Free ShippingLower 48 · orders $50+
- Free InsuranceEvery order covered to your door
- Kiln Experts on StaffCall 888-774-2529
- Since 194680 years serving potters
L&L e28M-3 Easy-Fire Kiln Package with Vent, Furniture and Genesis Touchscreen
28" diameter x 22.5" height inside.
approximately 8.5 cubic feet.
Requires 60 amp breaker at 240/1 residential power.
Sheffield Pottery Sale Packages Include Vent System, Furniture Kit, Genesis Controller Upgrade, Free Freight* and Free Lift-Gate Delivery !
FURNITURE KIT Includes 6 Cone 11 half shelves plus a square post kit which includes six each 1/2”, 1”, 2”, 4”, 6” and 8” high 1-1/2” square cordierite posts plus heat-resistant gloves.
The e28M-3 is a wide kiln making it perfect for platters and other flatter projects. The lower height 22.5" makes it easy to load but still gives you a lot of space ! The 28' L&L Easy-Fire kilns all include 3" brick for better insulation and lower firing costs.
The easy-fire kiln meets the needs of teachers, institutions, camps, hobbyists, potters and others who need an easy to operate, easy to set up, easy to maintain, easy to understand, and easy to buy kiln. It has L&L’s robust and time-proven technology like ceramic element holders, industrial-grade element terminals, ceramic thermocouple protection tubes, heavy-duty elements, corrosion resistant materials, “Easy-Open, Easy-Load” spring hinge, removable control panel and zone control with four “Easy-Fire” programs. Get everything you need for one easy price.
Note: The prices shown above in "Choose your options" for Furniture kit and Vent are also discounted! Use the check boxes and the update price button above to tune your package to fit your budget.
Specifications and Features
Features
- Internal Size: 28" diam x 22.5" high
- Cubic Feet: approx 8.5
- Number of Sections: 3
- Brick: 3" of premium select K23
- Max Temp: 2350F, 1287C, Cone 10 at 240/1, 240/3, 208/3. Cone 8 at 208/1
- Control: The Genesis control includes a touchscreen interface and WIFI connectivity. The intuitive interface is easy to use and understand. A free phone app allows you to monitor your kiln remotely.
- Thermocouples: Two Heavy-duty 8 gauge with industrial ceramic protection tubes
- Hinge: Easy-Lift, Easy-Load Spring Hinge
- Stand: Full Support Aluminized stand
- Control Panel Mount: Piggybacked on insulated terminal box
- Power Hook Up: Single phase only. Gets a 50 amp 6-50P cord
- Three Year Warranty
Vent Sure System
By mounting the fan assembly away from the kiln L&L ensures the safety of the vent, keeps the vibration of the motor away from the kiln and ceramic ware, and keeps the heat of the kiln away from the fan motor for long trouble-free life. The fumes can’t get pushed out into your room through a leak in the duct. The patented downdraft technology from Orton improves kiln uniformity and improves glaze color. easy-fire kilns and the Vent-Sure vent system are c-UL-us listed.
| Model Number | Part Number for 3” Brick | Volts/Phase | Cone Limit | Watts | Amps | Wire Size | Fuse Size | Power Connection |
|---|---|---|---|---|---|---|---|---|
| e28M-240 / e28M-3-240(USA) | K-E-23MX/31 | 240/1P | 10 | 11520 | 48.0 | 6 ga | 60 Amp | 6-50 Cordset |
| e28M-240-3P / e28M-3-240-3P (USA) | K-E-23MX/32 | 240/3P | 10 | 13850 | 40.0 | 8 ga | 50 Amp | 15-50 Cordset |
| e28M-208 / e28M-3-208 (USA) | K-E-23MX/21 | 208/1P | 8 | 9980 | 48.0 | 6 ga | 60 Amp | 6-50 Cordset |
| e28M-208-3P / e28M-3-208-3P (USA) | K-E-23MX/22 | 208/3P | 10 | 13850 | 46.1 | 6 ga | 60 Amp | 15-50 Cordset |
| e28M-220 / e28M-3-220 (World) | K-E-28MX/41 | 220/1P | 8 | 10560 | 48.0 | 6 ga | 60 Amp | Direct Wire |
| e28M-380-3P / e28M-3-380-3PY (World) | K-E-28MX/52 | 380/3PY | 8 | 13850 | 25.2 | 10 ga | 40 Amp | Direct Wire |
