About the Easy-Fire Kilns e18S • e18T • e18S-3 • e18T-3
Ask about our professional inside delivery and setup in the Northeast Region and beyond!

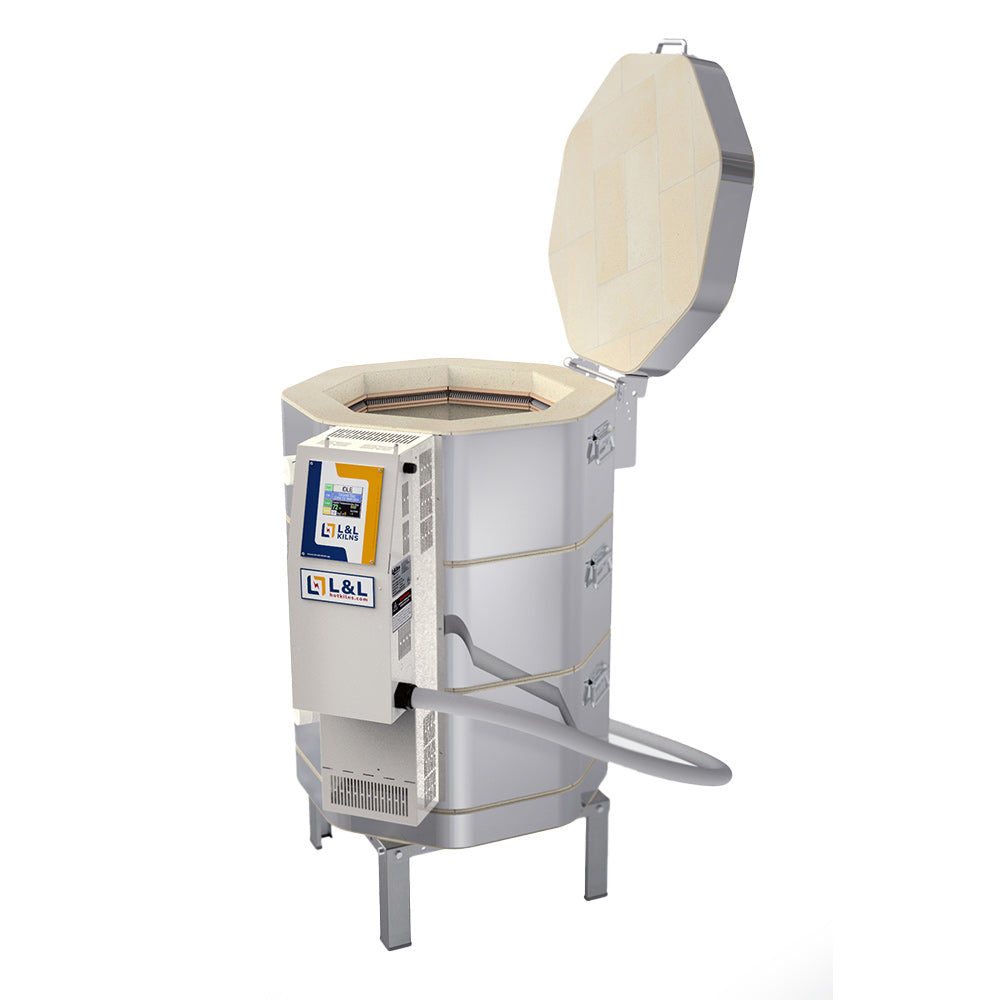

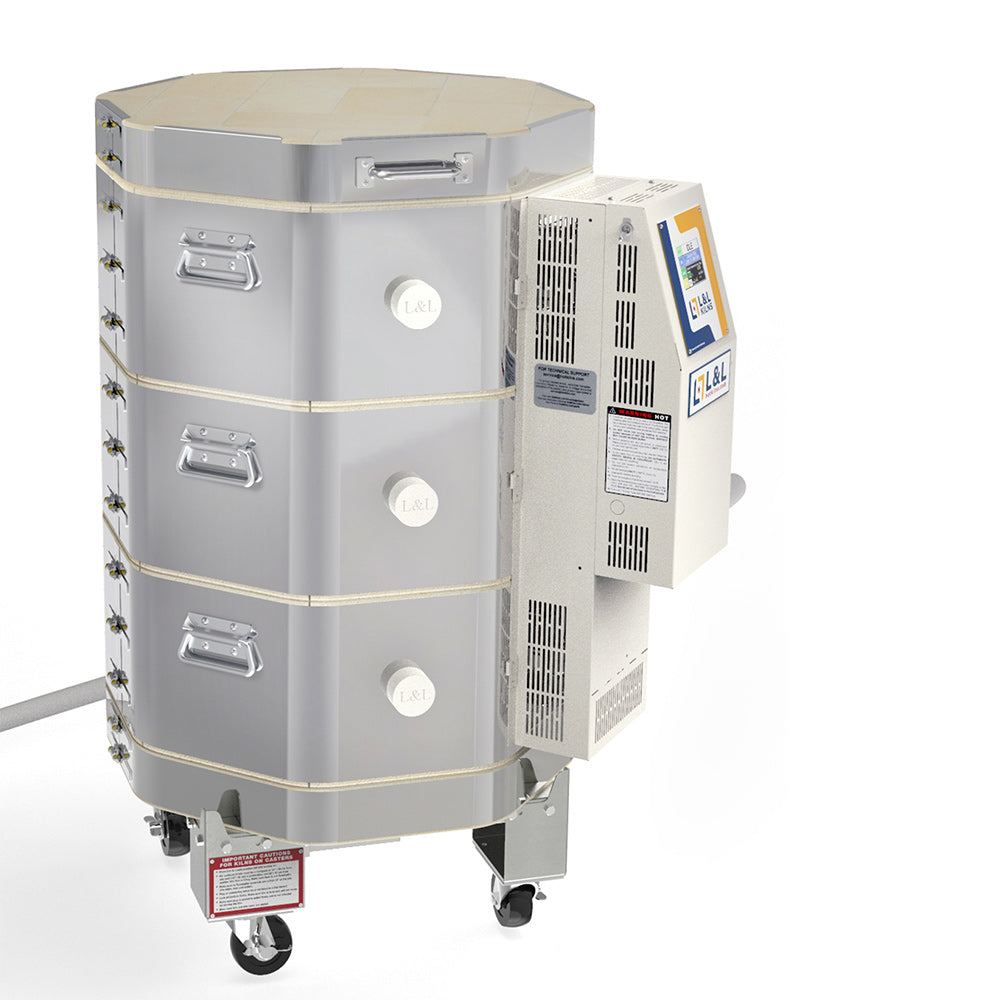

Model e18T-3 Easy-Fire Automatic Kiln with with Multi-Program Three-Zoned DynaTrol mounted in an easy-open cool-firing piggy-back control panel that is angled for easy viewing of control. Kiln comes with hard ceramic element holders, thermocouple protection tubes, strong solid-top stand, and solid peephole plugs. 16-1/2" diameter by 27" high (3.7 cubic ft - 105 Liters). 3" K23 brick. NEMA 6-50 single phase or 15-50 three phase 6 foot power cord included. C-MET-us listed in the USA & Canada. Cone 10 for all voltages.
Features
Temperature Rating: Cone 10, 2350°F, 1290°C
Loading: Lid position, when open, rests at an angle away from the kiln. Chains are used to secure the lid in place when open.
Hinge: The hinge is not spring-loaded.
Stand: Heavy-duty 14 gauge full solid stand with multiple bends for strength. Bolt on legs. Feet protectors included.
Assembly: Two or three 9” high sections stack on top of each other. Easy
to assemble. Bottom is reversible.
Construction: Stainless steel wrapped around brick with 3 clamps on each section. All stainless screws.
Insulation: 2-1/2” or 3” K23 firebrick.
Brick Coating: Reflective coating protects brick and reduces dusting.
Element Holders: Hard ceramic element holders protect brick.
Elements: Heavy-duty. 2 elements per 9” high section.
Element Connections: Proprietary all-ceramic element connection block
makes changing elements easy.
Control Panel: All controls and components are mounted in a separate control panel that is piggy-backed to the element connection box. A layer of insulation and this separation helps keep the controls cool. The
control panel and element box are hinged for easy access and maintenance. Control box can be easily removed for servicing. On/off switch and control use are included.
Control: DynaTrol with 4 Easy-Fire programs, 6 Vary-Fire programs, PreHeat, Delay, Program & Segment Review, and Diagnostics.
Zone Control: Two or three zones with separate thermocouples.
Peephole Plugs: Non-fragile solid ceramic with heat-locked head. 1” diameter full-view non-tapered. One per section.
Thermocouples: Type K 8 gauge with ceramic protection tubes.
Relays: Mercury free relays.
Power Cord/Plug: 50 Amp NEMA 6-50 six foot cord included for one phase, 50 Amp NEMA 15-50 six foot cord included for three phase.
Instructions: Complete visual instructions with control reference, process information, assembly, troubleshooting, and parts list. In addition a web videos show how to assemble the kiln and how to fire it. (https://www. youtube.com/user/LLKilns#p/u)
Warranty: Limited 3 year warranty. (See hotkilns.com/warranty.pdf ).
UL Listing: c-MET-us listed to UL499 standards.
OPTIONS
Furniture Kit
Thermocouple Options: Type S platinum or 1/4” pyrocil metallic sheathed
Vent System: Vent-Sure downdraft vent
Kiln Buyers Guide
Not sure which kiln fits your work? Sizing, voltage, controllers and more, explained.
Read the guide →
| Model Number | Part Number for 3” Brick | Volts/Phase | Watts | Amps | Wire Size | Fuse Size | Power Connection |
|---|---|---|---|---|---|---|---|
| e18T-3-240(USA) | K-E-18T3/31 | 240/1P | 8400 | 35.0 | 8 ga | 50 Amp | 6-50 Cordset |
| e18T-3-240-3P (USA) | K-E-18T3/32 | 240/3P | 8400 | 20.2 | 10 ga | 30 Amp | 15-50 Cordset |
| e18T-3-208 (USA) | K-E-18T3/21 | 208/1P | 8400 | 40.4 | 6 ga | 60 Amp | 6-50 Cordset |
| e18T-3-208-3P (USA) | K-E-18T3/22 | 208/3P | 8400 | 23.3 | 10 ga | 30 Amp | 15-50 Cordset |
| e18T-3-220 (World) | K-E-18T3/41 | 220/1P | 8400 | 38.2 | 8 ga | 50 Amp | Direct Wire |
| e18T-3-380-3PY (World) | K-E-18T3/52 | 380/3PY | 8400 | 12.7 | 14 ga | 20 Amp | Direct Wire |
L&L Easy-Fire Kiln Comparison
Easy-Fire is L&L's main line of top-loading pottery kilns. Every current model has 3" K23 firebrick, a Genesis touchscreen with zone control (two zones in S and M models, three in T models), hard ceramic element holders, and a 6-foot cord with plug. They come in four diameters and three heights.
| Model | Inside (diameter × height) | Capacity | Max temp | Amps | Plug | Best for |
|---|---|---|---|---|---|---|
| e14S-3 | 13.5" × 18" | 1.5 cu ft | Cone 10 (2350°F) | 16 | NEMA 6-20 | Small pieces and test firings on a 20-amp circuit |
| e18S-3 | 16.5" × 18" | 2.5 cu ft | Cone 10 (2350°F) | 23.9 | NEMA 6-50 | Hobby potters and small home studios |
| e18M-3 | 16.5" × 22.5" | 3.2 cu ft | Cone 10 (2350°F) | 33.3 | NEMA 6-50 | Home studios that want a little more height |
| e18T-3 | 16.5" × 27" | 3.7 cu ft | Cone 10 (2350°F) | 35 | NEMA 6-50 | Tall work in a small footprint |
| e23S-3 | 22.3" × 18" | 4.4 cu ft | Cone 10 (2350°F) | 39.4 | NEMA 6-50 | Wide bowls and platters, with an easy reach to the floor |
| e23M-3 | 22.3" × 22.5" | 5.5 cu ft | Cone 10 (2350°F) | 48 | NEMA 6-50 | Active home studios that want an easier reach than a tall kiln |
| e23T-3Best seller | 22.3" × 27" | 6.7 cu ft | Cone 10 (2350°F) | 48 | NEMA 6-50 | Serious home studios and schools |
| e28S-3 | 28" × 18" | 6.8 cu ft | Cone 10 (2350°F) | 47.9 | NEMA 6-50 | Large platters and wide sculpture |
| e28M-3 | 28" × 22.5" | 8.5 cu ft | Cone 10 (2350°F) | 48 | NEMA 6-50 | Big, wide loads for schools and studios |
| e28T-3 | 28" × 27" | 10.2 cu ft | Cone 8 (2280°F) | 48 | NEMA 6-50 | The biggest Easy-Fire: large low-fire loads, or cone 10 on three-phase power |
Ratings are for 240V single-phase power. On 208V single-phase, the e28M-3 is rated cone 8 and the e28T-3 cone 5. Every model except the e14S-3 also comes in a three-phase version, rated cone 10 with a NEMA 15-50 plug. Amps change with voltage, so check the spec table on each product page or tell us your voltage when you call. For frequent cone 6 firing or higher in a 28" kiln, L&L recommends the eQ2827-3 over the e28T-3.
Most Easy-Fire models also come as Easy-Fire kiln packages, with a Vent-Sure downdraft vent and a furniture kit of shelves and posts.
