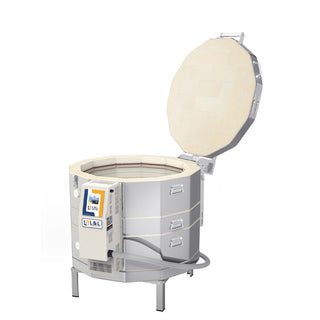

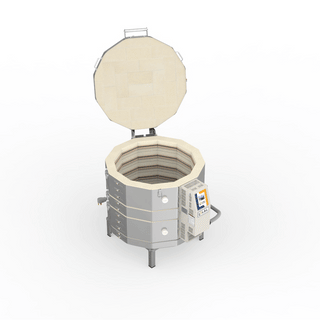

L&L e28M-3 Easy Fire Kiln

L&L E28M-3 Easy Fire Kiln : 3" Brick, 8.5 cubic feet

Save $726.00
Regular price $5,885.00 $5,159.00
Unit price
per
SKU : LKE28M-1
Fires to
Cone 10
Power
240 or 208 V
Size
Large and production
Loading
Top-loading
Made for
Pottery
What you get
Kiln only
Free Shipping Eligible on Orders Over $89
Availability

Shipping calculated at checkout.
  • Free ShippingLower 48 · orders $89+
  • Free InsuranceEvery order covered to your door
  • Kiln Experts on StaffCall 888-774-2529
  • Since 194680 years serving potters

See full specifications

L&L e28M-3 EASY-FIRE KILN

☎︎Call us to speak to one of our kiln expertsLet us help guide you to the right kiln for your needs!(888) 774-2529We are available 8:30 – 5:00 ESTLeave a message after hours with name, number, and the best time for us to call you back.Sheffield Pottery · Since 1946

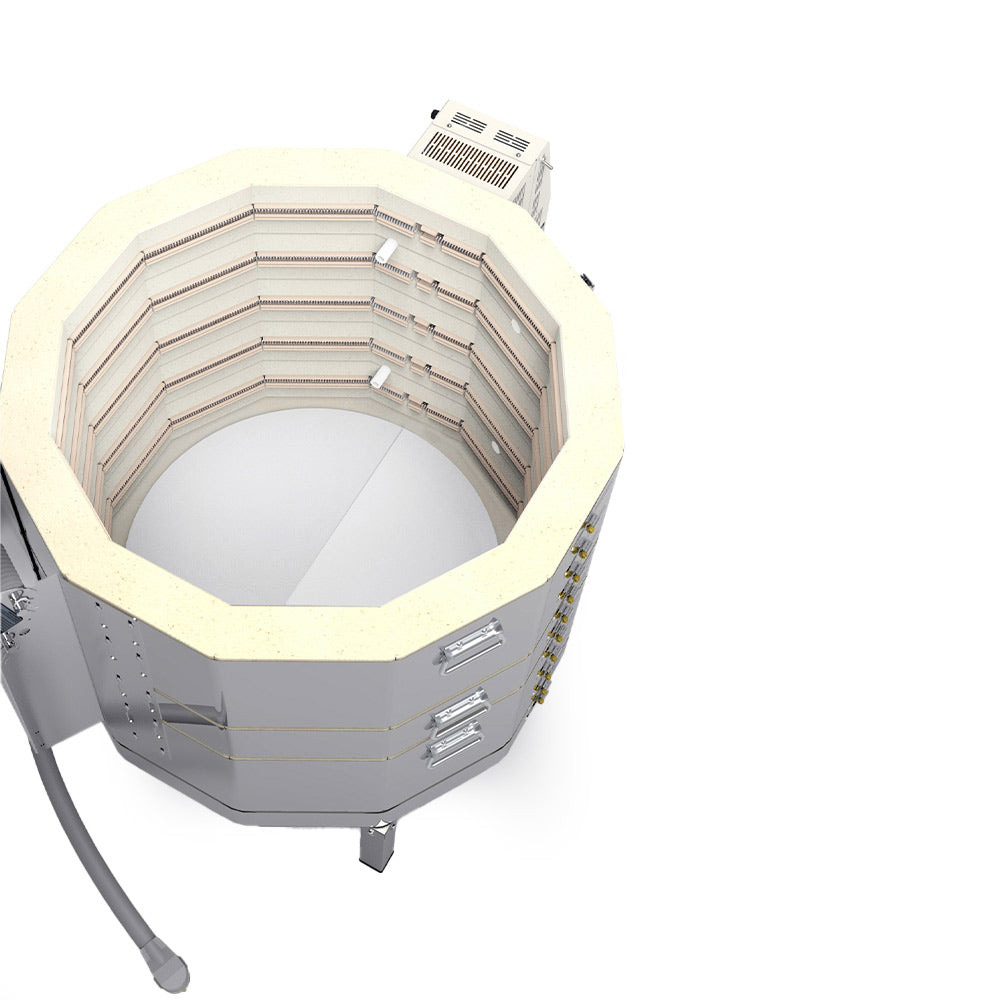

28" diameter x 22.5" height inside.
approximately 8.5 cubic feet.
Requires 60 amp breaker at 240/1 residential power.

The e28M-3 is a wide kiln making it perfect for platters and other flatter projects. The lower height 22.5" makes it easy to load but still gives you a lot of space ! The 28" L&L Easy-Fire kilns all include 3" brick for better insulation and lower firing costs.

The easy-fire kiln meets the needs of teachers, institutions, camps, hobbyists, potters and others who need an easy to operate, easy to set up, easy to maintain, easy to  understand, and easy to buy kiln. It has L&L’s robust and time-proven technology like ceramic element holders, industrial-grade element terminals, ceramic thermocouple protection tubes, heavy-duty elements, corrosion resistant materials, “Easy-Open, Easy-Load” spring hinge, removable control panel and zone control with four “Easy-Fire” programs. Get everything you need for one easy price.


Specifications and Features
Features

  • Internal Size: 28" diam x 22.5" high
  • Cubic Feet: approx 8.5
  • Number of Sections: 3
  • Brick: 3" of premium select K23
  • Max Temp: 2350F, 1287C, Cone 10 at 240/1, 240/3, 208/3. Cone 8 at 208/1
  • Control: DynaTrol with Dynamic Zone Control, 4 preset programs, 6 user defined programs
  • Thermocouples: Two Heavy-duty 8 gauge with industrial ceramic protection tubes
  • Hinge: Easy-Lift, Easy-Load Spring Hinge
  • Stand: Full Support Aluminized stand
  • Control Panel Mount: Piggybacked on insulated terminal box
  • Power Hook Up: Single phase only. Gets a 50 amp 6-50P cord
  • Three Year Warranty


Optional Vent Sure System
By mounting the fan assembly away from the kiln L&L ensures the safety of the vent, keeps the vibration of the motor away from the kiln and ceramic ware, and keeps the heat of the kiln away from the fan motor for long trouble-free life. The fumes can’t get pushed out into your room through a leak in the duct. The patented downdraft technology from Orton improves kiln uniformity and improves glaze color. easyfire kilns and the Vent-Sure vent system are c-UL-us listed.


Kiln Buyers Guide Not sure which kiln fits your work? Sizing, voltage, controllers and more, explained. Read the guide →
Specifications
Model Number Part Number for 3” Brick Volts/Phase Cone Limit Watts Amps Wire Size Fuse Size Power Connection
e28M-240 / e28M-3-240(USA) K-E-23MX/31 240/1P 10 11520 48.0 6 ga 60 Amp 6-50 Cordset
e28M-240-3P / e28M-3-240-3P (USA) K-E-23MX/32 240/3P 10 13850 40.0 8 ga 50 Amp 15-50 Cordset
e28M-208 / e28M-3-208 (USA) K-E-23MX/21 208/1P 8 9980 48.0 6 ga 60 Amp 6-50 Cordset
e28M-208-3P / e28M-3-208-3P (USA) K-E-23MX/22 208/3P 10 13850 46.1 6 ga 60 Amp 15-50 Cordset
e28M-220 / e28M-3-220 (World) K-E-28MX/41 220/1P 8 10560 48.0 6 ga 60 Amp Direct Wire
e28M-380-3P / e28M-3-380-3PY (World) K-E-28MX/52 380/3PY 8 13850 25.2 10 ga 40 Amp Direct Wire

L&L Easy-Fire Kiln Comparison

Easy-Fire is L&L's main line of top-loading pottery kilns. Every current model has 3" K23 firebrick, a Genesis touchscreen with zone control (two zones in S and M models, three in T models), hard ceramic element holders, and a 6-foot cord with plug. They come in four diameters and three heights.

Model Inside (diameter × height) Capacity Max temp Amps Plug Best for
e14S-3 13.5" × 18" 1.5 cu ft Cone 10 (2350°F) 16 NEMA 6-20 Small pieces and test firings on a 20-amp circuit
e18S-3 16.5" × 18" 2.5 cu ft Cone 10 (2350°F) 23.9 NEMA 6-50 Hobby potters and small home studios
e18M-3 16.5" × 22.5" 3.2 cu ft Cone 10 (2350°F) 33.3 NEMA 6-50 Home studios that want a little more height
e18T-3 16.5" × 27" 3.7 cu ft Cone 10 (2350°F) 35 NEMA 6-50 Tall work in a small footprint
e23S-3 22.3" × 18" 4.4 cu ft Cone 10 (2350°F) 39.4 NEMA 6-50 Wide bowls and platters, with an easy reach to the floor
e23M-3 22.3" × 22.5" 5.5 cu ft Cone 10 (2350°F) 48 NEMA 6-50 Active home studios that want an easier reach than a tall kiln
e23T-3Best seller 22.3" × 27" 6.7 cu ft Cone 10 (2350°F) 48 NEMA 6-50 Serious home studios and schools
e28S-3 28" × 18" 6.8 cu ft Cone 10 (2350°F) 47.9 NEMA 6-50 Large platters and wide sculpture
e28M-3 28" × 22.5" 8.5 cu ft Cone 10 (2350°F) 48 NEMA 6-50 Big, wide loads for schools and studios
e28T-3 28" × 27" 10.2 cu ft Cone 8 (2280°F) 48 NEMA 6-50 The biggest Easy-Fire: large low-fire loads, or cone 10 on three-phase power

Ratings are for 240V single-phase power. On 208V single-phase, the e28M-3 is rated cone 8 and the e28T-3 cone 5. Every model except the e14S-3 also comes in a three-phase version, rated cone 10 with a NEMA 15-50 plug. Amps change with voltage, so check the spec table on each product page or tell us your voltage when you call. For frequent cone 6 firing or higher in a 28" kiln, L&L recommends the eQ2827-3 over the e28T-3.

Most Easy-Fire models also come as Easy-Fire kiln packages, with a Vent-Sure downdraft vent and a furniture kit of shelves and posts.
