L&L e18M-3 Easy-Fire Kiln Package with Vent, Furniture and Genesis Touchscreen

Save $676.00

~~$4,815.00~~ $4,139.00

Unit price: per

SKU : LKE18M3-CM-2401

Fires to: Cone 10
Power: 240 or 208 V
Size: Small studio
Loading: Top-loading
Made for: Pottery
What you get: Ready-to-fire package

Availability

Shipping calculated at checkout.

Free ShippingLower 48 · orders $50+
Free InsuranceEvery order covered to your door
Kiln Experts on StaffCall 888-774-2529
Since 194680 years serving potters

Product Description
Video

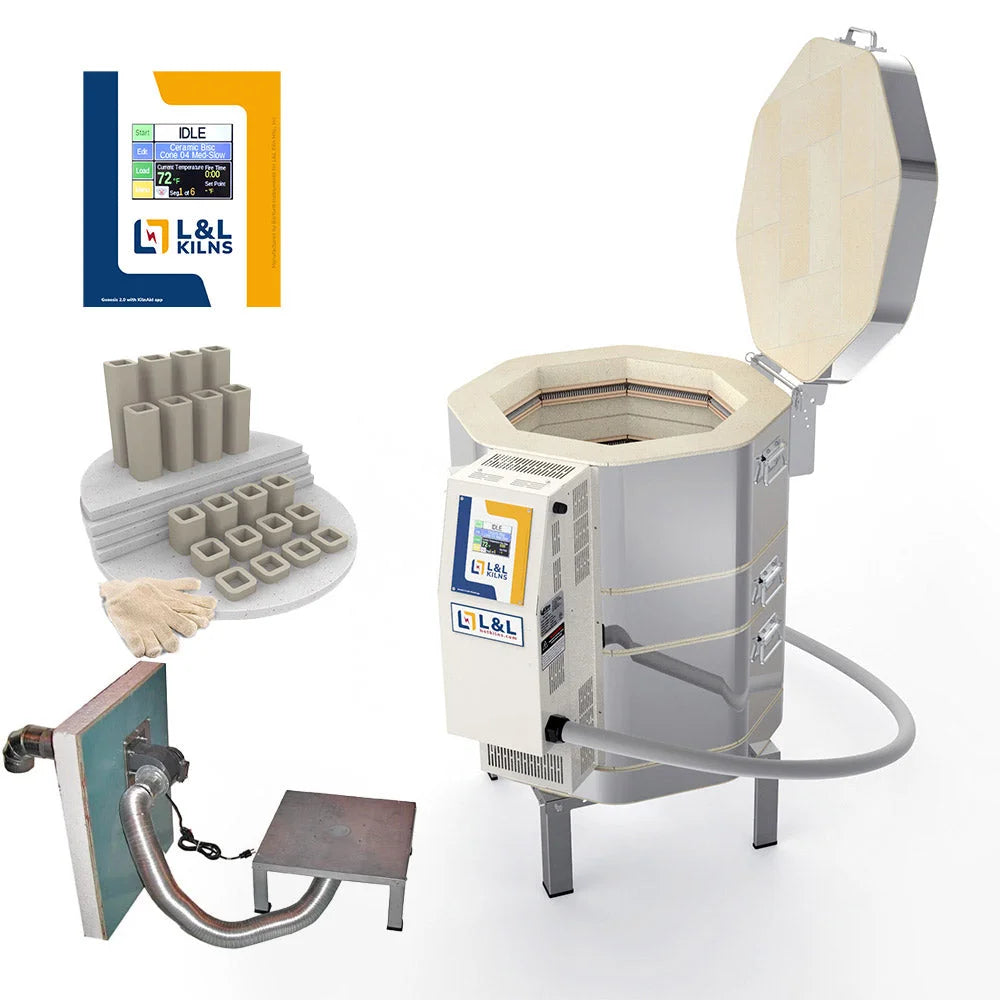

L&L e18M-3 Easy-Fire Kiln Package

New easy-to-load medium height !
16.5” across, 22.5” deep, 3.2 cubic feet.
Requires 50 amp breaker on 240/1 residential power. Other voltages combinations available.
3 Zones

This Sheffield Pottery Sale Package Includes:

Vent System, Furniture Kit, Genesis Controller Upgrade, Free Freight to most places in the lower 48 and Free Lift-Gate Delivery!

FURNITURE KIT Includes 1 Cone 11 full shelf and 4 half shelves plus a square post kit which includes six each 1/2”, 1”, 2”, 4”, 6” and 8” high 1-1/2” square cordierite posts plus heat-resistant gloves.

☎︎Call us to speak to one of our kiln expertsLet us help guide you to the right kiln for your needs!(888) 774-2529We are available 8:30 – 5:00 ESTLeave a message after hours with name, number, and the best time for us to call you back.Sheffield Pottery · Since 1946L&L E18M Features
Temperature Rating: Cone 10, 2350°F, 1290°C
Loading: Lid position, when open, rests at an angle away from the kiln.
Stand: Heavy-duty 14 gauge full solid stand with multiple bends for strength. Bolt on legs. Feet protectors included.
Assembly: Three sections stack on top of each other. Easy
to assemble. Bottom is reversible.
Construction: Stainless steel wrapped around brick with 3 clamps on each section. All stainless screws.
Insulation: 3” K23 firebrick.
Brick Coating: Reflective coating protects brick and reduces dusting.
Element Holders: Hard ceramic element holders protect brick.
Elements: Heavy-duty. 2 elements per 9” high section.
Element Connections: Proprietary all-ceramic element connection block
makes changing elements easy.
Control Panel: All controls and components are mounted in a separate control panel that is piggy-backed to the element connection box. A layer of insulation and this separation helps keep the controls cool. The
control panel and element box are hinged for easy access and maintenance. Control box can be easily removed for servicing. On/off switch and control use are included.
Control: The Genesis control includes a touchscreen interface and WIFI connectivity. The intuitive interface is easy to use and understand. A free phone app allows you to monitor your kiln remotely.
Zone Control: Tree zones with separate thermocouples.
Peephole Plugs: Non-fragile solid ceramic with heat-locked head. 1” diameter full-view non-tapered. One per section.
Thermocouples: Type K 8 gauge with ceramic protection tubes.
Relays: Mercury free relays.
Power Cord/Plug: 50 Amp NEMA 6-50 six foot cord included for one phase, 50 Amp NEMA 15-50 six foot cord included for three phase.
Instructions: Complete visual instructions with control reference, process information, assembly, troubleshooting, and parts list. In addition a web videos show how to assemble the kiln and how to fire it. (https://www. youtube.com/user/LLKilns#p/u)
Warranty: Limited 3 year warranty. (See hotkilns.com/warranty.pdf ).
UL Listing: c-MET-us listed to UL499 standards.

Specifications

Model Number	Part Number for 3” Brick	Volts/Phase	Watts	Amps	Wire Size	Fuse Size	Power Connection
e18M-3-240(USA)	K-E-18M3/31	240/1P	8000	33.3	8 ga	50 Amp	6-50 Cordset
e18M-3-240-3P (USA)	K-E-18M3/32	240/3P	8000	23.1	10 ga	30 Amp	15-50 Cordset
e18M-3-208 (USA)	K-E-18M3/21	208/1P	8000	38.5	8 ga	50 Amp	6-50 Cordset
e18M-3-208-3P (USA)	K-E-18M3/22	208/3P	8000	26.6	10 ga	40 Amp	15-50 Cordset
e18M-3-220 (World)	K-E-18M3/41	220/1P	8000	36.4	8 ga	50 Amp	Direct Wire
e18M-3-380-3PY (World)	K-E-18M3/52	380/3PY	8000	14.5	14 ga	20 Amp	Direct Wire
