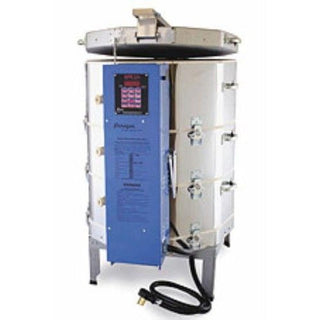

Paragon Kiln Tnf24-3 Kiln

Save $488.66
Regular price $4,886.62 $4,397.96
Unit price
per
SKU : P7961111G00
Item Class: POTTERY KILNS
THIS PRODUCT QUALIFIES FOR FREE SHIPPING FOR MOST LOCATIONS
Availability

Shipping calculated at checkout.
mobile icon

HAVE QUESTIONS ? Call Us

Free Shipping (some items excluded)

Kiln & Ceramic Experts on staff

One stop shop for Ceramics Supplies

Americas Premiere Clay Maker

Ceramic Supplier since 1946

World Class Support

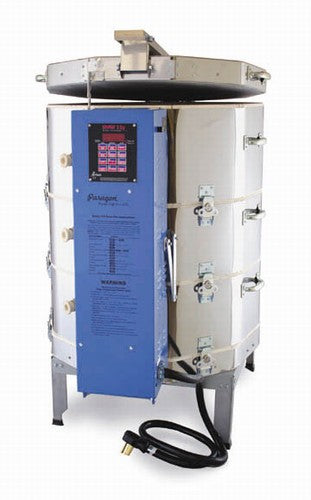

Paragon TnF24-3 KILN 240v 1PH


INCLUDES DELUXE ROLLING KILN STAND !

  • 22.5"W x 29"D
  • 2350°F Max Temp
  • 240 Volts / 1 Phase / 60 Hz 48 Amps : Other Voltages Available 11500 Watts
  • Sentry 12-Key Controller
  • NEMA 6-50P Cordset

During busy seasons when orders are backlogged, you will be grateful you own a dependable Paragon kiln such as the TnF-24-3. Studio owners call these kilns “real work horses.”

Paragon studio kilns have withstood years of abuse in school environments. High school ceramics teachers fire these kilns unmercifully, without remorse. Yet the kilns keep going. People swear by them.

The Paragon TNF 243 studio kiln features sectional construction. Separate the 240-volt kiln bottom and sections to repair bricks, change elements, or to move the kiln down narrow stairwells or through the narrowest doorways. Twist-lock spring latches hold the assembled collars securely.

The top row of brick in the Paragon TNF 243 studio kiln is 2” high and without element grooves. It is less susceptible to damage during loading than a grooved brick.

Hinged at the bottom, the switch box on 8, 10 & 12 sided digital Paragon kilns opens forward for easy maintenance. A folding support arm holds the box in the open position. (See photo on cover.) The Sentry is mounted at the top of the switch box within easy reach. Operate your 240-volt kiln from a comfortable position.

The 10-sided Paragon TNF 243 studio kiln comes in deluxe 3” thick sidewalls, lid and bottom. The 3” brick is 20% thicker than the standard 2 ½” brick. For porcelain or stoneware, order the TnF-24-3, rated to 2350°F.

The massive lid is easy to lift with Paragon's patented “LiteLid,” which does away with cumbersome pulleys and cords and reduces lid weight to only several pounds of pressure. Most people can lift the lid with one hand. Unlike pulleys and weights, the LiteLid is self-contained on the 240-volt kiln. No need to drill holes in the ceiling for pulleys. The LiteLid sharply reduces wear between the lid and top rim of firebrick. The truss and floating lid allow expansion of the lid. Ask competitors if their lid spring includes a truss and floating lid.

The 24” wide stand for 10 & 12-sided kilns supports the brick bottom with framing that is 4 ½” wide across the top of each side. The stand is rock-steady, with 16-gauge frame and heavy 12-gauge legs.

If you move your Paragon TNF 243 studio kiln out of the way when not in use, order an optional deluxe kiln stand with steel casters.

Something to consider if you already own a 12-sided kiln: Why purchase a 10-sided kiln such as the TnF-24-3 when you produce enough ware to fill a 12-sided kiln? It is because some ware fires more efficiently in a 10-sided kiln. Example: 10- and 12-sided kilns both fire four 10” wide bowls per shelf. When you own both sizes of kilns, you can choose the most efficient kiln for each size of ware. The 10-sided kiln is a good choice for those whose production depends on short firing cycles. Since 10-sided kilns are smaller than 12-sided, they can heat and cool faster. The 10-sided shelves are lighter than the 12-sided, and easier to lift.

Other Features of the 240-Volt Kiln

  • 2”-high blank bricks in the top row of sidewall bricks
  • Sectional design for easier maintenance and moving through narrow passageways
  • Sections secured with deluxe twist-lock spring latches
  • Lock-in lid support
  • Large, tapered peepholes
  • Ventilated switch box
  • Hand lifts
  • Dropped, recessed brick grooves—no pins needed
  • Heavy duty elements
  • Dust-free coating in the peepholes, both sides of the lid and top rim of firebrick
  • Heavy gauge stainless steel case
  • Operating instructions silk-screened on the switch box
  • Certified to CSA & UL Standard 499
  • Full-formed galvanized steel base plate

The Optional Furniture Kit (not included)

The furniture kit consists of carefully selected fireclay shelves and posts for the Paragon TNF 243 studio kiln. When estimating the price of the kiln, include the cost of furniture. The furniture allows you to stack multiple layers of ware. Without it, you could fire only the ware that would fit on the bottom of the 240-volt kiln.

  • S-24-3, SnF-24-3, TnF-24-3, Viking-24 Furniture Kit
  • 8 C-23H 1/2 Shelves
  • 1” wide Square Posts, 8 of each -
  • 1”, 2”, 3”, 4”, 5”, 6” lengths
  • 1 lb. Bag Kiln Wash
  • Furniture Shipping Weight: 94 lbs.

Specifications

Max. Temperature

2350F
1287C

Amps

45

Phase

1

Watts

10800

Nema

6-50P

Breaker Size

60

Circuit Wire Size

6 gauge

UL

Y

CE

N

Control Type

Sentry Digital 12-key Ceramics

Voltage

240

Hertz

60

Sides

10

Chamber Volume

6.70 CU.FT.
189.72 litres

Chamber Diameter

22.50
572 mm

Chamber Depth

29.00
737 mm

Outer Size

30.50W x 43.80D x 48.00H Inches
775W x 1113D x 1220H mm

Ship Size

36.50W x 41.50D x 47.00H Inches
928W x 1055D x 1194H mm

Ship Weight

342.00 Lbs.
155.13 Kg.

Ship Method

This Kiln Ships Via Truck









Part Number



7961111G00

* Base Model
