Sheffield Pottery Bull Elk Studio Kiln Package

Regular price $14,350.00
Unit price
per
SKU : PS1665-11
Item Class: KILN PACKAGES
Availability: Usually Ships in 8-10 Weeks
THIS PRODUCT QUALIFIES FOR FREE SHIPPING FOR MOST LOCATIONS
Availability

Shipping calculated at checkout.
mobile icon

HAVE QUESTIONS ? Call Us

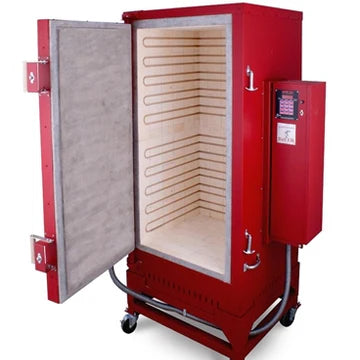

Sheffield Bull Elk Front Loading KilnSheffield Pottery Bull Elk Studio:

Front-Loading

Kiln Package

Available for 240/ single phase or 208/3 phase wiring: same price

Includes Sentinel Touch-Screen Controller, 3 Zone type K thermocouples, Door Gasket,Door Safety Shut Off, 120 V Orton Vent, 19” Stand with Casters, and Sheffield Pottery Red

16.67 Cubic feet, Sheffield Pottery Bull Elk Front Loading Kiln

By Paragon Industries :

Exclusively for Sheffie Pottery

Sheffield Pottery Paragon Bull Elk Kiln240/ Single or 208/3 : (other wiring available)

Sentinel Touch

3 Zone type K

Door Gasket

Door Safety Shut Off

120 V Vent

19” Stand with Casters

Sheffield Pottery Red


The Sheffield Pottery Bull Elk Front Loading Kiln is a cone 10 kiln designed for pottery and ceramic studios. This school and commercial kiln is suitable for glass arts as well as metal heat treating applications. And considering its features, it is surprisingly affordable.
Sheffield Bull Elk KilnsComparison Studio Pro
Controller Genesis Genesis
Zones 3 3
Thermocouple Type K S
Stand with Casters 19" 19"
Door Elements No Yes
Safety Door Shut Off Yes Yes
AOP outlet for Vent Integration No Yes
Orton Vent 120v 240v
Interior Cubic Feet 16.67 16.67
Default Wiring Configuration* 240/1 208/3
Door Gasket Yes Yes
Fits through 36" Door ** Yes Yes
4.5" thick Floor Yes Yes
Top Temp 2350 F 2350F
*Other Configurations Available
** Fit's through 36" if handles and element cover removed
Expert Kiln SupportFits through 36" door!
Can fit through 34" by taking off handles and back element cover.
Includes door safety shutoff.

The front loading kiln includes a 19” stand with casters. The stand raises the kiln firebrick bottom hearth to 24”.
The floor is 4.5" of firebrick.
The 4" walls are very well insulated. They are 3" of firebrick and 1" of super insulating block insulation.
200, 208, 220 volts, single or 3 phase: same price as 240 volts.


The cone 10 kiln interior is 16.67 cubic feet: 24”W x 24”D x 50”H
The external kiln height includes the 19” stand with casters.
Door opens a few degrees past 90.


Sheffield Pottery Bull Elk Front Loading Kiln Extra insulation saves energy and lengthens cooling. The 4” thick walls, top and door are made of 3” firebrick backed by 1” of ceramic fiber block insulation. The floor is 4 ½” thick firebrick. The extra insulation not only saves energy but also cools the kiln slowly without having to turn the elements back on. This gives the micro-crystalline structure and color of the glaze sufficient time for full development. Cool slowly to achieve dramatic shifts in glaze color such as iron reds and enjoy the richer look of gas firing.
The ample power and extra insulation of this commercial kiln results in long element life, because the elements do not “struggle” to reach high temperatures. Dropped, recessed grooves seat the industrial-gauge elements.

The elements are “tuned,” which means hotter elements are placed in areas of the firing chamber that need more heat. This results in superior heat distribution.
The Sentry 2.0 digital controller is standard on the Sheffield Pottery Bull Elk front loading kiln. Results are repeatable from one firing to the next with astounding accuracy, making this kiln perfect for schools. The controller continually monitors the firing with the wifi enable Sentinel Touch Screen Controller.

Do you ever wonder how much electricity your kiln uses? The digital controller will figure this for you; merely program the kiln’s wattage and your cost of electricity into the controller. Learn to conserve energy by experimenting with firing speed, load density, etc.
The Type-K thermocouple, hermetically sealed for accuracy, is standard.
Long-lasting mercury relays power the elements. A bank of built-in NEC/UL compliant high-amperage fuses protects the kiln and circuit wiring. Potters who struggle with top-loading kilns will enjoy the front-loading Sheffield Pottery Bull Elk Kiln. The door swings open wide on a heavy hinges with sealed bearings.

The ventilated switch box is generously louvered for air circulation for the long life of the electrical components. Yet dust is kept to a minimum. Cone 10 Front Loading Kiln Features
  • Saves electricity with extra insulation
  • Cone 10, 2350°F
  • 3” insulating firebrick and 1” non-organic block insulation in walls, top and door: 4” total thickness
  • 4 ½” thick firebrick bottom
  • 16.67 cubic foot Interior: 24" wide x 24" deep x 50" tall
  • Long-lasting mercury relays
  • Type K thermocouple with ¼” sheath
  • Case temperature at cone 10: 170°F (compared to 400-500°F for standard firebrick kilns)
  • Two tapered peepholes in side
  • UL/CUL & NEC compliant fuses for safety
  • Available in 200, 208, 220, 240, 480 v, 1 & 3 phase
  • Proportional power elements for more even heating

The Optional Furniture Kit (not included)
The furniture kit consists of carefully selected fireclay shelves and posts for this commercial and school kiln. When estimating the price of the kiln, include the cost of furniture. The furniture allows you to stack multiple layers of ware. Without it, you could fire only the ware that would fit on the kiln bottom.
Optional Furniture Kit contains:
2 C-30 Shelf (22” x 22” x 1”)
8 - C30H ½ Shelves (22” x 11” x 1”)
1 1/2” wide Square Posts, 16 each of - 4”, 6”, 8” lengths 2 lb. Bag Kiln Wash

Shipping:
1,350 lb. This includes the weight of the 14” stand.
Crate 52”W x 52”D x 80”H
Furniture kit: 156 lb.

Amperage

240 volts, single phase 112 amps
240 volts, 3 phase 65 amps
480 volts, 3 phase 33 amps
480, single phase 56 amps
208 / single 129 amps
208 / 3 phase 75 per line


SPECIFICATIONS

Max. Temperature

2350F
1287C

Amps

240 volts, single phase 112 amps
240 volts, 3 phase 65 amps
480 volts, 3 phase 33 amps
480, single phase 56 amps
208 / single 129 amps
208 / 3 phase 75 per line

Phase

3 Phase (single phase Available)

Watts

26750

Nema

Direct Wired

Breaker Size

208 / 3 phase 75 per line

Circuit Wire Size

0 gauge

UL

N

CE

N

Control Type

Sentinel Touch Screen Controller

Voltage

240 (200,208,480 available)

Hertz

60

Sides

4

Chamber Volume

16.67 CU.FT.

Chamber Width

24.00"

Chamber Depth

24.00"

Chamber Height

50"

Outer Size

43" W x 36" D x 78" H Inches
(width includes control box and handles)
front to back with door open: 63"

Ship Size

52" W x 52" D x 80" H Inches

Ship Weight

1350 Lbs.

Ship Method

This Kiln Ships Via Truck
