L&L eQ2827-3 Equad-Pro Commercial Kiln Package with Vent, Furniture, and Genesis Touchscreen

Professional Kiln

Save $1,486.00
Regular price $9,275.00 $7,789.00
Unit price
per
SKU : LKEQ282732083P-1
Fires to
Cone 10
Power
240 or 208 V
Size
Large and production
Loading
Top-loading
Made for
Pottery
What you get
Ready-to-fire package
Free Shipping Eligible on Orders Over $89
Availability

Shipping calculated at checkout.
  • Free ShippingLower 48 · orders $89+
  • Free InsuranceEvery order covered to your door
  • Kiln Experts on StaffCall 888-774-2529
  • Since 194680 years serving potters

See full specifications

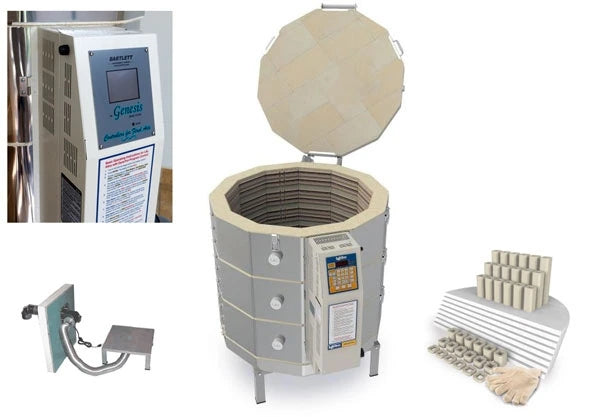

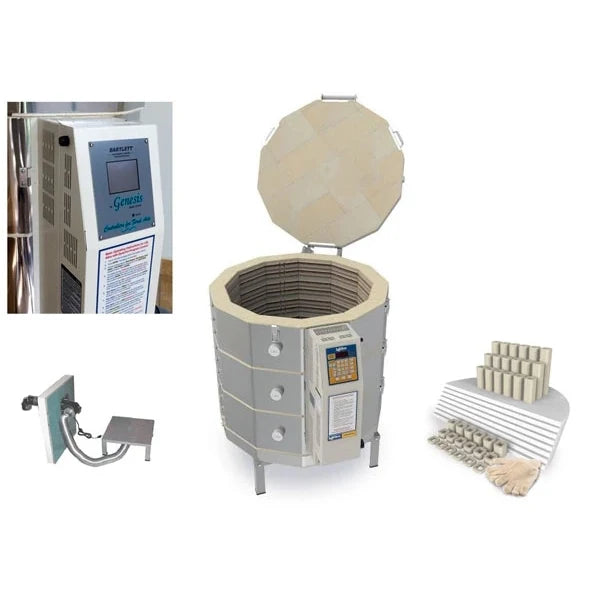

L&L eQ2827-3 Equad-Pro Commercial Kiln Package

What's in the package

  • L&L eQ2827-3 eQuad-Pro kilnIncluded
    • Genesis touchscreen controller with Wi-Fi
    • 3-zone control and quad elements
    • Stand and peephole plugs
  • L&L furniture kitIncluded
    • Eight 25-1/2" half round hollow-core shelves (5/8" thick)
    • Six each of 1/2", 1", 2", 4", 6" and 8" high posts (1-1/2" square)
    • One pair of heat-resistant gloves
  • L&L Vent-Sure downdraft ventIncluded
    • Wall-mounted blower on a bracket, with vent pipe to pass through the outside wall and motor inlet duct
    • 8 ft power cord with in-line on/off switch (plugs into a standard 120V outlet)
    • Bypass Collection Box, with hardware to mount it on the kiln stand
    • Flexible aluminum duct (expands to 8 ft) and two hose clamps
    • 4" 90° elbow for the outside end of the vent pipe

    The blower is mounted away from the kiln, so there is no vibration or heat on the motor, and the duct runs under negative pressure so a leak pulls air in rather than pushing fumes out.

Questions about what's in the box? Call our kiln experts at (888) 774-2529.

☎︎Call us to speak to one of our kiln expertsLet us help guide you to the right kiln for your needs!(888) 774-2529We are available 8:30 – 5:00 ESTLeave a message after hours with name, number, and the best time for us to call you back.Sheffield Pottery · Since 1946

HIGH FIRE PRODUCTION KILNS WITH QUAD ELEMENT SYSTEM

Kiln Package includes: Kiln, Genesis Touchscreen Controller, L&L Vent-Sure Downdraft kiln venting system, and furniture.
L&L eQuad 2827 Kiln Package

The eQuad 2827-3 is 10.2 cubic feet
28" diameter by 27" high (10.2 cubic feet). 3" K23 brick. Higher power than normal kilns. Includes panel circuit fuses. Direct power connection. Cone 10 for all voltages. Three thermocouples. No charge for 3-phase versions. C-MET-us is listed in the USA & Canada. Cone 10 for all voltages.


The L&L Kilns eQuad Pro Series kilns are designed for heavy usage at high-fire temperatures.
They are rated Cone 10 with plenty of power for firing cone 6 and higher everyday!
These kilns feature Quad Element Design. The quad elements are super heavy-duty elements which wrap four times in each 9” high section. Quad elements and included 3 zone control ensure even firing top to bottom throughout your kiln.
Equad Cone 10 KilnEquad kilns include stand, peep hole plugs, easy to understand manual, an L&L hard ceramic element holders.

Wire Connection: Direct Wire Connection (no cord)

The lid is spring loaded for easy opening. When open, rests at an angle away from the kiln so that the loading is easy and unobstructed.

The floor of eQuad series kilns are reversible extending the life of your kiln!

L&L hard ceramic element holders are included. These protect the bricks from bumps and chipping.
Equad Cone 10 KilnControl: The Genesis control includes a touchscreen interface and WIFI connectivity. The intuitive interface is easy to use and understand. A free phone app allows you to monitor your kiln remotely.
Warranty: Limited 3 year warranty.



Specifications
Model Number Part Number for 3” Brick Volts/Phase Watts Amps Wire Size Fuse Size
eQ2827-3-240 (USA) K-Q-2827/31 240/1P 14950 62.3 4 ga 80 Amp
eQ2827-3-240-3P (USA) K-Q-2827/32 240/3P 14950 36.0 8 ga 50 Amp
eQ2827-3-208 (USA) K-Q-2827/21 208/1P 14950 71.9 6 ga 90 Amp
eQ2827-3-208-3P (USA) K-Q-2827/22 208/3P 14950 41.5 6 ga 60 Amp
eQ2827-3-220 (World) K-Q-2827/41 220/1P 14950 68.0 4 ga 90 Amp
eQ2827-3-380-3PY (World) K-Q-2827/52 380/3PY 14950 22.7 10 ga 30 Amp
Kiln Buyers Guide Not sure which kiln fits your work? Sizing, voltage, controllers and more, explained. Read the guide →

L&L eQuad-Pro Kiln Comparison

eQuad-Pro kilns are built for production potters who fire to cone 6 and above often. L&L gives them about 25% more power than an Easy-Fire, plus its Quad element system: thick, low-watt-density elements for longer element life. Both sizes have three zones and 3" K23 brick, are rated cone 10 for production firing, and are wired directly to a disconnect (no cord).

Model Inside (diameter × height) Capacity Max temp Amps Hookup Best for
eQ2327-3 22.3" × 27" 6.7 cu ft Cone 10 (2350°F) 56 Direct wire e23T-3 size, with more power for frequent high firing
eQ2827-3Most popular 28" × 27" 10.2 cu ft Cone 10 (2350°F) 62.3 Direct wire Production studios firing big cone 6 to 10 loads

Ratings are for 240V single-phase power. On 208V single-phase, the eQ2327-3 draws 56 amps and the eQ2827-3 71.9 amps; both stay cone 10. The eQ2827-3 holds about 74 bowls (6" × 3") per load. It also comes as a package with a vent and furniture kit.
