L&L Kilns eQUAD-PRO PRODUCTION KILNS
HIGH FIRE PRODUCTION KILNS WITH QUAD ELEMENT SYSTEM

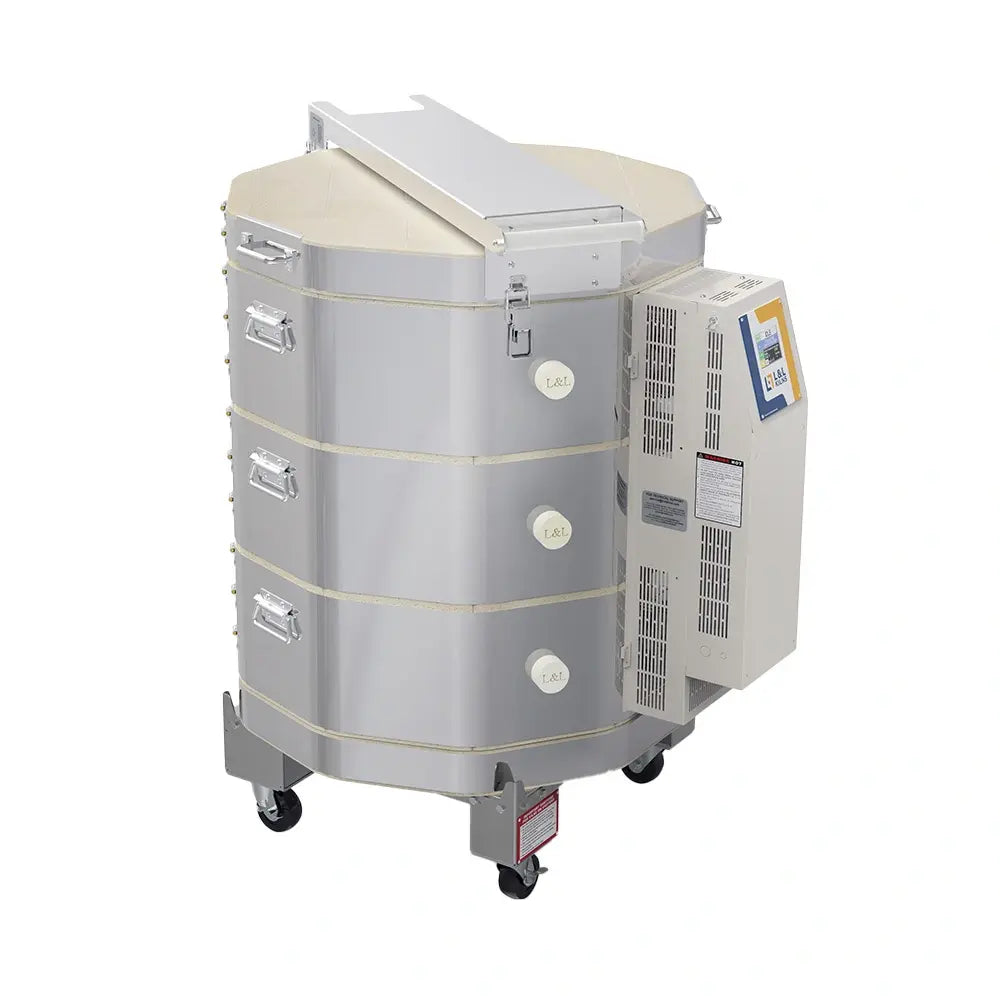

The eQuad 2327-3 is 6.7 cubic feet
The L&L Kilns eQuad Pro Series kilns are designed for heavy usage at high-fire temperatures.
They are rated Cone 10 with plenty of power for firing cone 6 and higher everyday!
These kilns feature Quad Element Design. The quad elements are super heavy-duty elements which wrap four times in each 9” high section. Quad elements and included 3 zone control ensure even firing top to bottom throughout your kiln.
Equad kilns include stand, peep hole plugs, easy to understand manual, an L&L hard ceramic element holders.

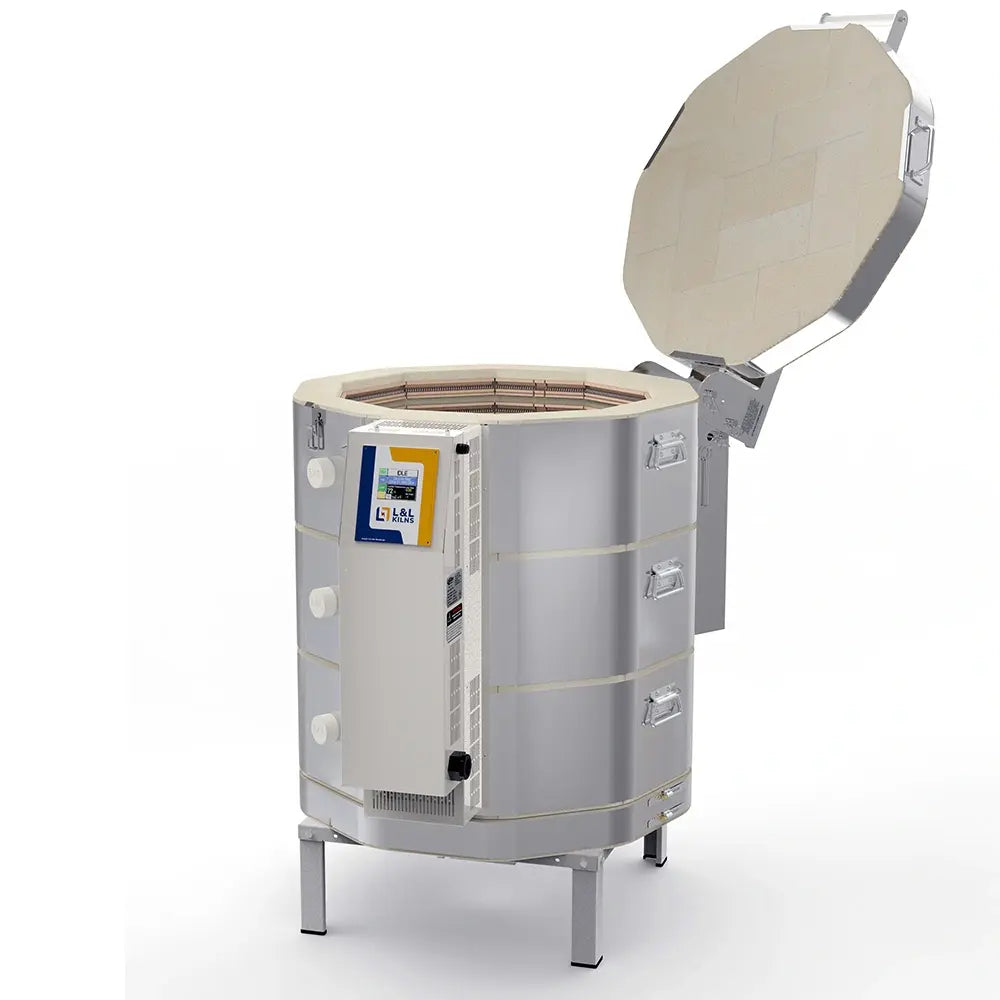

The lid is spring loaded for easy opening. When open, rests at an angle away from the kiln so that the loading is easy and unobstructed.
The floor of eQuad series kilns are reversible extending the life of your kiln !
L&L hard ceramic element holders are included. These protect the bricks from bumps and chipping.
Control: DynaTrol with 4 Easy-Fire programs, 6 Vary-Fire programs, PreHeat, Delay, Program & Segment Review, and Diagnostics. Two programs can be combined for one 16 segment program.
Warranty: Limited 3 year warranty.
- Electrical Specs at 240/1 (other voltage congigurations available)
- Amps:56
- Wire Connection: Direct Wire Connection (no cord)
- Wire Gauge for Connection: 4 Ga
- Branch Fusing: Branch Fused
- Element Wiring: Parallel
- Max Temperature: Cone 10, 2350F, 1290C
Kiln Buyers Guide
Not sure which kiln fits your work? Sizing, voltage, controllers and more, explained.
Read the guide →
| Model Number | Part Number for 3” Brick | Volts/Phase | Watts | Amps | Wire Size | Fuse Size |
|---|---|---|---|---|---|---|
| eQ2327-3-240 (USA) | K-Q-2327/31 | 240/1P | 13440 | 56 | 4 ga | 70 Amp |
| eQ2327-3-240-3P (USA) | K-Q-2327/32 | 240/3P | 13440 | 32.3 | 8 ga | 50 Amp |
| eQ2327-3-208 (USA) | K-Q-2327/21 | 208/1P | 11684 | 56.0 | 4 ga | 70 Amp |
| eQ2327-3-208-3P (USA) | K-Q-2327/22 | 208/3P | 11684 | 32.3 | 8 ga | 50 Amp |
| eQ2327-3-220 (World) | K-Q-2327/41 | 220/1P | 12321 | 56.0 | 4 ga | 70 Amp |
| eQ2327-3-380-3PY (World) | K-Q-2327/52 | 380/3PY | 12321 | 18.7 | 12 ga | 25 Amp |
L&L eQuad-Pro Kiln Comparison
eQuad-Pro kilns are built for production potters who fire to cone 6 and above often. L&L gives them about 25% more power than an Easy-Fire, plus its Quad element system: thick, low-watt-density elements for longer element life. Both sizes have three zones and 3" K23 brick, are rated cone 10 for production firing, and are wired directly to a disconnect (no cord).
| Model | Inside (diameter × height) | Capacity | Max temp | Amps | Hookup | Best for |
|---|---|---|---|---|---|---|
| eQ2327-3 | 22.3" × 27" | 6.7 cu ft | Cone 10 (2350°F) | 56 | Direct wire | e23T-3 size, with more power for frequent high firing |
| eQ2827-3Most popular | 28" × 27" | 10.2 cu ft | Cone 10 (2350°F) | 62.3 | Direct wire | Production studios firing big cone 6 to 10 loads |
Ratings are for 240V single-phase power. On 208V single-phase, the eQ2327-3 draws 56 amps and the eQ2827-3 71.9 amps; both stay cone 10. The eQ2827-3 holds about 74 bowls (6" × 3") per load. It also comes as a package with a vent and furniture kit.
