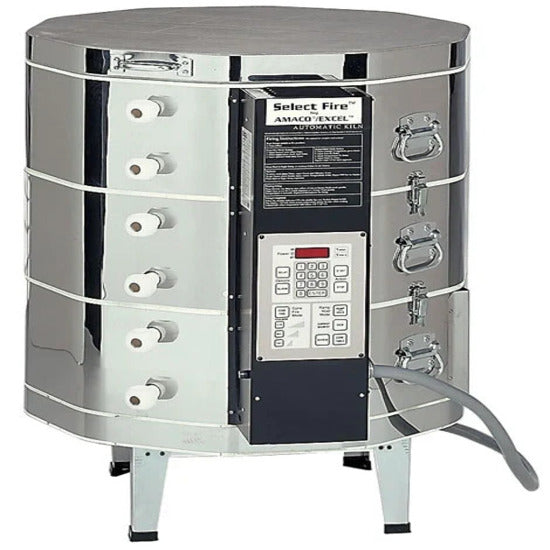

EX-353SF with Select Fire and EZ-Lift
Mid-size round kiln with 5.25 cubic foot firing chamber.
Fires to Cone 10
- EZ-Lift and Select Fire™ Standard - Heavy duty spring-loaded hinge means effortless opening and closing (see close up photo) and computer controlled firings are more convenient and accurate.
EXCEL® Kilns - 2 year warranty!
EX-353SF Features:
- 22 1/2-inch diameter, 22-inches deep (5.25 cubic foot) firing chamber capacity
- 3-inch firebrick
- Two-position, reinforced steel bar—secures lid while loading and unloading
- Reversible slabs—lid and bottom slabs can be turned over to use the other side, extending the life of the kiln
- 5 Kanthal A-1 Element wire coils
- Select Fire™ Computer Control
- EZ-Lift™ Spring-Assisted Lid for effortless opening and closing
- 7-foot power cord with NEMA 6-50 (single phase) or 15-50 (three phase) plug
- Two year warranty
NOTE: Width dimension includes control box and height includes the stand (8") on all EXCEL® kilns.
Kiln Buyers Guide
Not sure which kiln fits your work? Sizing, voltage, controllers and more, explained.
Read the guide →
Amaco Excel Kiln Model Comparison
Amaco Excel kilns are multi-sided, top-loading electric kilns in 8-, 10- and 12-sided sizes. Every current model has Amaco's Select Fire computer controller, and the 10- and 12-sided models we sell come with the EZ-Lift spring-loaded lid hinge. The chart below compares the current Excel models side by side. Specs are for 240-volt, single-phase power, the most common hookup in homes and schools.
Which Amaco Excel kiln should I buy?
- First kiln for a home studioThe EX-232SF or EX-329SF. Both fire to cone 10, draw 33.4 amps on 240V and plug into a NEMA 6-50 outlet. The EX-329SF has thicker 3" brick. The EX-232SF has 2.5" brick and a slightly bigger 3.2 cu ft chamber.
- Most popular Excel kilnThe EX-399SF. Its 12-sided, 27"-deep chamber holds 9.92 cu ft, and it has 3" brick and the EZ-Lift hinge as standard. It's rated to cone 8, a good fit for cone 5–6 glazes. It's our best-selling Amaco kiln.
- Schools and classroomsThe EX-270SF (7.0 cu ft) or EX-365SF (6.57 cu ft, 3" brick). Both are 27" deep for full class loads. Check your building's power first: on 208V single-phase, the EX-270SF is rated to cone 6.
- Cone 10 productionThe EX-1099SF. It has the same 28" × 27" chamber as the EX-399SF, but it's rated to cone 10 and wired directly to your electrical panel (60 amps on 240V single-phase).
- EX = Excel. SF = Select Fire, Amaco's computer controller.
- On most models, the first digit is the brick thickness: 2 = 2.5" brick, 3 = 3" brick.
- The last two digits are the approximate capacity in cubic feet.
For example, the EX-270SF has 2.5" brick and a 7.0 cu ft chamber. The 12-sided EX-1099SF and EX-1266SF start with 10 and 12 instead. The EX-1099SF is the cone 10, direct-wire version of the EX-399SF, with the same 3" brick and 9.92 cu ft chamber.
| Model | Interior (diameter × depth) | Sides | Capacity | Brick | Max temp | Amps | Hookup | EZ-Lift hinge | Best for |
|---|---|---|---|---|---|---|---|---|---|
| EX-329SF | 16½" × 22" | 8 | 2.9 cu ft | 3" | Cone 10 | 33.4 | NEMA 6-50 plugSingle-phase only | No | Small home studios that fire to cone 10 |
| EX-232SF | 17½" × 22" | 8 | 3.2 cu ft | 2.5" | Cone 10 | 33.4 | NEMA 6-50 plugSingle-phase only | No | A compact first kiln for hobby potters |
| EX-353SF | 22½" × 22" | 10 | 5.25 cu ft | 3" | Cone 10 | 48 | NEMA 6-50 plug15-50 plug on 3-phase | Standard | Active home studios that fire to cone 10 often |
| EX-257SF | 23½" × 22" | 10 | 5.7 cu ft | 2.5" | Cone 10 | 48 | NEMA 6-50 plug15-50 plug on 3-phase | Standard | Wide bowls and platters, with an easy reach to the floor |
| EX-365SF | 22¾" × 27" | 10 | 6.57 cu ft | 3" | Cone 10 | 48 | NEMA 6-50 plug15-50 plug on 3-phase | Standard | Tall work and frequent cone 10 firing |
| EX-1266SF | 28" × 17¾" | 12 | 6.6 cu ft | 3" | Cone 10 | 48 | NEMA 6-50 plugSingle-phase only | Standard | Wide, shallow loads like platters and tile |
| EX-270SF | 23⅜" × 27" | 10 | 7.0 cu ft | 2.5" | Cone 10Cone 6 on 208V 1-phase | 48 | NEMA 6-50 plug15-50 plug on 3-phase | Standard | Big classroom loads of bisque and glaze |
| EX-381SF | 28" × 22" | 12 | 8.1 cu ft | 3" | Cone 10Cone 8 on 208V 1-phase | 48 | NEMA 6-50 plug15-50 plug on 3-phase | Standard | Large platters and wide work, without a deep reach |
| EX-399SFBest seller | 28" × 27" | 12 | 9.92 cu ft | 3" | Cone 8Cone 5 on 208V 1-phase | 48 | NEMA 6-50 plug15-50 plug on 3-phase | Standard | Large cone 5–6 loads for studios and schools |
| EX-1099SF | 28" × 27" | 12 | 9.92 cu ft | 3" | Cone 10 | 60 | Direct wire | Standard | Production potters firing large cone 10 loads |
Ratings are for 240V single-phase power. Several models carry a lower cone rating on 208V single-phase power (noted in the table), and amperage differs on 208V and 3-phase power. Check the details on each product page or tell us your voltage and phase when you call.
Select Fire, EZ-Lift and 2.5" vs. 3" brick
Select Fire is Amaco's computer controller. It's standard on every current Excel kiln. EZ-Lift is a heavy-duty, spring-loaded lid hinge that makes the lid easier to open and close. It comes standard on every 10- and 12-sided Excel kiln we sell. If you already own an Excel kiln, see the EZ-Lift upgrade kits for the EX-247 and EX-270 and the EX-399, EX-1099 and EX-1266.
3" brick holds heat better than 2.5" brick, so the kiln reaches temperature more easily and cools more slowly. The trade-off is a slightly smaller interior: the 3" brick EX-353SF is 22½" across, while the 2.5" brick EX-257SF is 23½".
Every Excel kiln has Kanthal A-1 elements, a 7-foot power cord and a two-year warranty from Amaco. Most models also have reversible lid and floor slabs, which you can flip over to extend their life. To vent fumes from your kiln room, see the Amaco Master Kiln Vent.
