Amaco Excel Ex-270 Kiln With Select Fire and EZ-Lift

Save $951.00
Regular price $6,250.00 $5,299.00
Unit price
per
SKU : AEX270
Free Shipping Eligible on Orders Over $89
Availability

Shipping calculated at checkout.
  • Free ShippingLower 48 · orders $89+
  • Free InsuranceEvery order covered to your door
  • Kiln Experts on StaffCall 888-774-2529
  • Since 194680 years serving potters

See full specifications



Amaco EXCEL EX-270 KILN With SELECT FIRE and EZ-Lift

☎︎Call us to speak to one of our kiln expertsLet us help guide you to the right kiln for your needs!(888) 774-2529We are available 8:30 – 5:00 ESTLeave a message after hours with name, number, and the best time for us to call you back.Sheffield Pottery · Since 1946

EX-270SF with Select Fire A high capacity studio model.
Fires to Cone 10 (240V single or three phase, 208V three phase); Cone 6 (208V single phase)
Select Fire™ Standard - Computer controlled firings are more convenient and accurate.
Now includes EZ-LIFT Heavy-duty, spring-loaded hinge means effortless opening and closing.

EXCEL® Kilns - 2 year warranty!

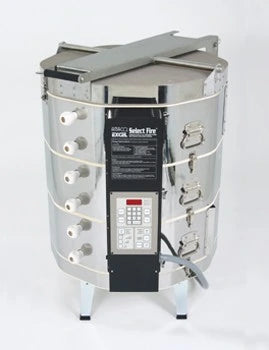

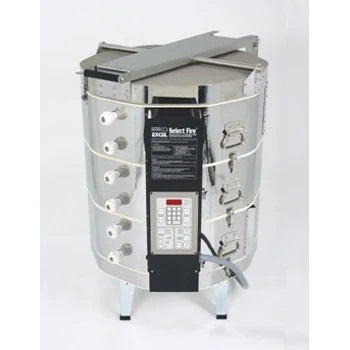

Photo shows EX-270SF with EZ-Lift hinge.

EX-270SF Features:

  • 23 3/8-inch diameter, 27-inches deep (7.0 cubic foot) firing chamber
  • 2 1/2-inch firebrick
  • EZ-Lift—heavy duty spring loaded hinge means effortless opening and closing
  • Two-position, reinforced steel bar—secures lid while loading and unloading
  • Reversible slabs—lid and bottom slabs can be turned over to use the other side, extending the life of the kiln
  • 6 Kanthal A-1 elements
  • Select Fire™ Computer Control
  • 7-foot power cord with NEMA 6-50 plug (single phase) or NEMA 15-50 plug (three phase)
  • Two year warranty

NOTE: Width dimension includes control box and height includes the stand (8") on all EXCEL® kilns.

Kiln Buyers Guide Not sure which kiln fits your work? Sizing, voltage, controllers and more, explained. Read the guide →
UPC: 039672251069

Amaco Excel Kiln Model Comparison

Amaco Excel kilns are multi-sided, top-loading electric kilns in 8-, 10- and 12-sided sizes. Every current model has Amaco's Select Fire computer controller, and the 10- and 12-sided models we sell come with the EZ-Lift spring-loaded lid hinge. The chart below compares the current Excel models side by side. Specs are for 240-volt, single-phase power, the most common hookup in homes and schools.

Which Amaco Excel kiln should I buy?

  • First kiln for a home studioThe EX-232SF or EX-329SF. Both fire to cone 10, draw 33.4 amps on 240V and plug into a NEMA 6-50 outlet. The EX-329SF has thicker 3" brick. The EX-232SF has 2.5" brick and a slightly bigger 3.2 cu ft chamber.
  • Most popular Excel kilnThe EX-399SF. Its 12-sided, 27"-deep chamber holds 9.92 cu ft, and it has 3" brick and the EZ-Lift hinge as standard. It's rated to cone 8, a good fit for cone 5–6 glazes. It's our best-selling Amaco kiln.
  • Schools and classroomsThe EX-270SF (7.0 cu ft) or EX-365SF (6.57 cu ft, 3" brick). Both are 27" deep for full class loads. Check your building's power first: on 208V single-phase, the EX-270SF is rated to cone 6.
  • Cone 10 productionThe EX-1099SF. It has the same 28" × 27" chamber as the EX-399SF, but it's rated to cone 10 and wired directly to your electrical panel (60 amps on 240V single-phase).
How to read an Amaco Excel model number
  • EX = Excel. SF = Select Fire, Amaco's computer controller.
  • On most models, the first digit is the brick thickness: 2 = 2.5" brick, 3 = 3" brick.
  • The last two digits are the approximate capacity in cubic feet.

For example, the EX-270SF has 2.5" brick and a 7.0 cu ft chamber. The 12-sided EX-1099SF and EX-1266SF start with 10 and 12 instead. The EX-1099SF is the cone 10, direct-wire version of the EX-399SF, with the same 3" brick and 9.92 cu ft chamber.

Model Interior (diameter × depth) Sides Capacity Brick Max temp Amps Hookup EZ-Lift hinge Best for
EX-329SF 16½" × 22" 8 2.9 cu ft 3" Cone 10 33.4 NEMA 6-50 plugSingle-phase only No Small home studios that fire to cone 10
EX-232SF 17½" × 22" 8 3.2 cu ft 2.5" Cone 10 33.4 NEMA 6-50 plugSingle-phase only No A compact first kiln for hobby potters
EX-353SF 22½" × 22" 10 5.25 cu ft 3" Cone 10 48 NEMA 6-50 plug15-50 plug on 3-phase Standard Active home studios that fire to cone 10 often
EX-257SF 23½" × 22" 10 5.7 cu ft 2.5" Cone 10 48 NEMA 6-50 plug15-50 plug on 3-phase Standard Wide bowls and platters, with an easy reach to the floor
EX-365SF 22¾" × 27" 10 6.57 cu ft 3" Cone 10 48 NEMA 6-50 plug15-50 plug on 3-phase Standard Tall work and frequent cone 10 firing
EX-1266SF 28" × 17¾" 12 6.6 cu ft 3" Cone 10 48 NEMA 6-50 plugSingle-phase only Standard Wide, shallow loads like platters and tile
EX-270SF 23⅜" × 27" 10 7.0 cu ft 2.5" Cone 10Cone 6 on 208V 1-phase 48 NEMA 6-50 plug15-50 plug on 3-phase Standard Big classroom loads of bisque and glaze
EX-381SF 28" × 22" 12 8.1 cu ft 3" Cone 10Cone 8 on 208V 1-phase 48 NEMA 6-50 plug15-50 plug on 3-phase Standard Large platters and wide work, without a deep reach
EX-399SFBest seller 28" × 27" 12 9.92 cu ft 3" Cone 8Cone 5 on 208V 1-phase 48 NEMA 6-50 plug15-50 plug on 3-phase Standard Large cone 5–6 loads for studios and schools
EX-1099SF 28" × 27" 12 9.92 cu ft 3" Cone 10 60 Direct wire Standard Production potters firing large cone 10 loads

Ratings are for 240V single-phase power. Several models carry a lower cone rating on 208V single-phase power (noted in the table), and amperage differs on 208V and 3-phase power. Check the details on each product page or tell us your voltage and phase when you call.

Select Fire, EZ-Lift and 2.5" vs. 3" brick

Select Fire is Amaco's computer controller. It's standard on every current Excel kiln. EZ-Lift is a heavy-duty, spring-loaded lid hinge that makes the lid easier to open and close. It comes standard on every 10- and 12-sided Excel kiln we sell. If you already own an Excel kiln, see the EZ-Lift upgrade kits for the EX-247 and EX-270 and the EX-399, EX-1099 and EX-1266.

3" brick holds heat better than 2.5" brick, so the kiln reaches temperature more easily and cools more slowly. The trade-off is a slightly smaller interior: the 3" brick EX-353SF is 22½" across, while the 2.5" brick EX-257SF is 23½".

Every Excel kiln has Kanthal A-1 elements, a 7-foot power cord and a two-year warranty from Amaco. Most models also have reversible lid and floor slabs, which you can flip over to extend their life. To vent fumes from your kiln room, see the Amaco Master Kiln Vent.
