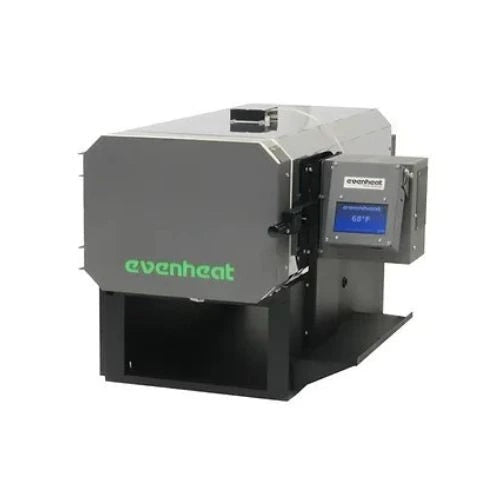

Evenheat Kilns KO-18 High Temperature Heat Treat Oven

This oven is equipped with the Ramp Master 12 Key controller. Use options to upgrade to heat treating oven TAP touch-screen controller.
Shown with TAP

The KO 18 is our most popular high temperature KO Series heat treat oven. It's fairly deep design and ample power makes it a perfect fit for both private and low volume heat treaters.

The Evenheat KO-18 high temperature heat treat oven features a maximum temperature of 2400°F (1316°C), swing-out door and cool-touch handle for comfortable use, full stainless jackets and corner mounted hardware for strength and a variety of control options. If you're looking for something a bit larger, have a look at the Evenheat KO-22.5 heat treat oven.

Available with our TAP Touchscreen, Genesis Touchscreen, Rampmaster or Set-Pro controls.


Evenheat KO18 Heat Treating furnaceChamber Size
9" W x 5.5" H x 18" D - .52 cubic feet
(22.9cm W x 14cm H x 45.7cm D - 14.7L)

North American Electrical Specifications
Operating Voltage: 240V
Amperage: 13A
Watts: 3120W
Power Cord Plug Style: NEMA 6-20P

Global Electrical Specifications
Operating Voltage: 240V
Amperage: 13A
Watts: 3120W

Maximum Usable Temperature: 2400°F (1316°C)
Ship Weight: 102lb (46.4kg)

FEATURES

  • Access Port (Pat. Pend.)
  • Cool-Touch Handle
  • Corner Mounting Technique
  • Excellent Temperature Distribution
  • Full Stainless Jacket
  • High Temp Heating Elements
  • Loud Alarm Output Jack
  • Multiple Control Options
  • Responsive Thermocouples
  • Side Opening Door
  • Swing View Adjustable Control

Access Port (Pat. Pend.)

This oven incorporates Evenheat's new relay access port (Pat. Pend.) for simple, no-panel-off relay replacement.

Simply remove the plate to gain access to the service part. There's no need to remove or swing the entire control panel out of the way and dig into the internal wiring. It's absolutely simple and effective and all it takes is a simple screwdriver!

Cool-Touch Handle

The handle on our swing out door is conveniently located at the front of the door, not hidden along the side. This spring loaded, phenolic handle is cool to the touch, is one-handed in design and serves as the door latch as well.

Corner Mounting Technique

The corners of the oven body and door provide excellent strength for mounting. The flat sides of the oven don't offer this strength. We install our load bearing hinge brackets on these corners for this very reason. Longer life, high reliability: solid design makes a difference.

Excellent Temperature Distribution

Evenheat knife ovens are true to their name and the KF and KO Series are no different. Our designs are well known for their excellent temperature uniformity. They're done well and you'll appreciate the performance.

Full Stainless Jacket

Multi-section ovens are designed to lower production costs for the oven manufacturer. it is a worthy goal but it comes at the cost of oven quality. It's a trade off we're not willing to make. We build our ovens with full stainless jackets from front to back. Full jackets mean absolutely solid, life extending construction. There are no leaks, no shifting, no buckles and no weakness. Insist on Full Stainless Jackets for true build quality.

High Temp Heating Elements

Evenheat uses only high quality Sandvik/Kanthal heating element wire in all of products. This oven is equipped with Sandvik A-1 alloy that is designed specifically for high temperature applications.

We wind our heating elements on our own special machinery to ensure consistency and tight tolerance.

Loud Alarm Output Jack

Evenheat knife and heat treat ovens are standard equipped with a Loud Alarm output jack for use with our Loud Alarm Option.

Like most shops, knife maker and heat treat shops can be noisy. And, like most shops, distractions can get in the way of some very nice work. Cut through your shop noise with our Loud Alarm Option. The Loud Alarm sounds at a loud 80+ decibels! You'll never miss the opportunity to properly quench again.

The loud alarm option alerts the user when the heat treat process temperature and hold has been reached, and more importantly, when it's over and it's time to quench. Rampmaster and TAP control equipped Evenheat knife and heat treat oven models include a built-in alarm jack for easy install: simply attach the optional loud alarm and plug it in.

Multiple Control Options

Evenheat works closely with control manufacturers Bartlett Instruments and SDS Industries to bring you the best in performance, features and programming ease.

Control Options Include:

TAP Touchscreen, full featured touchscreen control with user-defined and preset programs for glass, metal clay and ceramic. Also features full-text graphics, cost per firing, and graphing along with wi-fi compatibility with web and mobile apps and more.

Genesis Touchscreen, full featured touchscreen control with user-defined and preset programs.

Rampmaster 3 (RM3), full featured control with user-defined and preset programs for glass. Features a 4 digit display.

Economical Set-Pro, 3 button control with user-defined and preset programs for glass, metal clay and ceramic. Features a 4 digit display.

Responsive Thermocouples

Our thermocouples (temperature sensors) are chosen for their quick response and reliable performance. Our standard thermocouple is a Type K. Type S thermocouples are available by request on Rampmaster equipped ovens at additional charge.

Side Opening Door

Working in the heat is fun, trying to avoid it isn't. Doors that swing down throw off massive amounts of heat just below the chamber entrance. Our side hinged doors swing out to the left to keep the heat away for more cool and comfortable use. It's an excellent design choice that makes all the difference.

Swing View Adjustable Control

The Swing View Adjustable Control is a pivoting, swing-up enclosure that allows the user to rotate the Rampmaster control to a comfortable viewing and programming angle. It is that simple. You're going to really enjoy this feature. The Swing View Adjustable Control is stock equipped on this oven.

Thick, 3" Firebrick Insulation

The KO 18 is built using extra-thick 3" firebrick. This special brick allows the KO 18 to reach maximum temperature with ease while storing more heat for sequential heat treats.

All Models TUV listed (UL 499) United States and Canada
