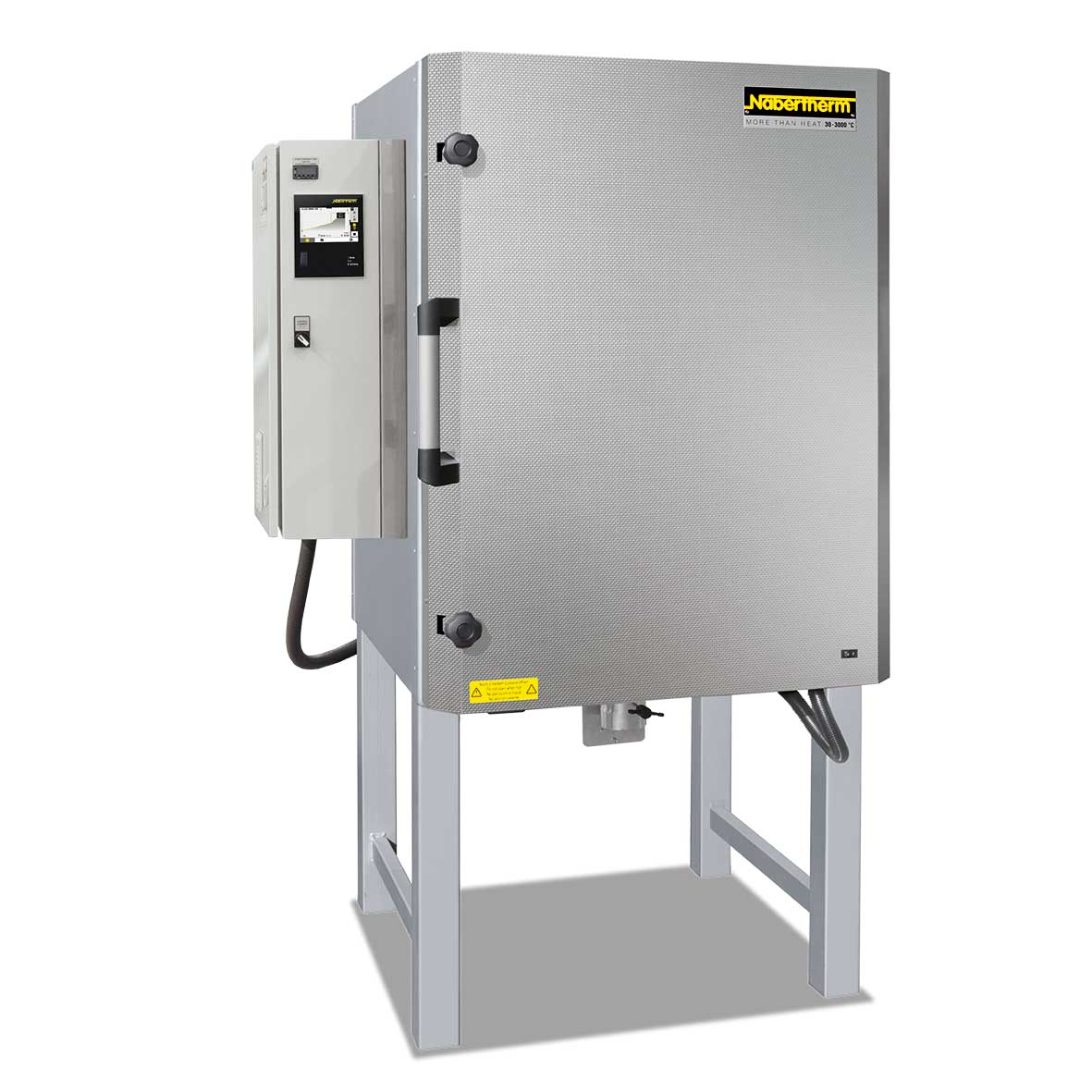

NABERTHERM N200 KILN
Nabertherm Chamber kilns offer first-class craftsmanship, professional design, long service life and excellent temperature uniformity – these are a few of the reasons our kiln models N100/G to N 660/H are our best sellers to everyone looking for a professional kiln. These furnaces have proven their worth trough the years, firing porcelain, stoneware and annealing glass. You will find these kilns in industry as well as in ceramic workshops, studios, clinics, schools and private homes – practically every place where a rugged, capable of frequent firings and excellent temperature uniformity is required.
Top quality:
Heated from 5 sides: 3 walls, door and the floor
High-quality, free-radiating heating elements mounted on support tubes for longest service life
Long-lasting, heavy-gauge heating elements
Special arrangement of the heating elements for optimal temperature uniformity
Silicon Carbide floor plate protects floor elements and provides a level setting surface
Solid-state power control relays for silent operation (N 100.. - N 300..)
Fast power switching for precise temperature distribution
Long life Platinum-Rhodium Type “S” thermocouple standard
Door safety switch shuts down power to the elements when the door is opened
Multi-layered lining with light weight insulating bricks and microporus insulation for a
cooler shell and low power consumption
Rugged, self-supporting, vaulted arch construction
“Cool-touch” double-walled housing with stainless steel
side panels (N 100.. - N 300..)
Clean, professional design enhances your image
Solid, double-walled door with wear-resistant, precision-made “brick-on-brick” door seal (N 100.. - N 300..)
Adjustable door with clamping wheels for easy, tight sealing and padlock hasp
Environment-friendly, long-life powder-coating of housing
Attractive, durable, environmentally friendly powder-coating
Infinitely adjustable air inlet opening in the floor
Delivery includes pipe connection for connecting an air outlet (80 mm diameter)
GS safety mark for controlled safety, CE
Base included for N 100.. - N 300..
Manual-Zone-Regulation for sophisticated firing solutions as an option.

Chamber Kilns Standard EquipmentElements mounted on support tubes give free radiation of heat, longer element and wall life; optimized element positioning for excellent temperature uniformity
Easy-to-use Nabertherm controller, precise temperature regulation (See page 22 for details)
Handy quick-release locking wheel, door can be secured with padlock
Base for ergonomic loading height included in delivery. Optional: Special height or running on casters
Large, ergonomic door handle
Solid-state relays control the kiln heating. Operating silently and nearly wear-resistant, the solid-state relays switch with short pulses, giving excellent temperature uniformity and fast response times.
Flue in the center-rear section of the ceiling ensures uniform flow of exhaust gasses (roof flap for N 440 and N 660)
Double-walled housing for “Cool-Touch” outer surface with side panels made of textured stainless steel (N 100/G -
N 300/H)
Infinitely adjustable air inlet damper for optimum air supply during firing and reduced cooling time. Automatic control available as an option.
Silicon carbide floor plate protects the floor heating elements. It is easily removed to permit convenient cleaning of the furnace bottom and element maintenance.
We recommend: To achieve a long service life of the brick lining and heating elements, the kiln should not be fired every cycle at its maximum rated temperature. For process temperatures up to 900 °C we recommend models N 100/G - N 660/G. Up to 1230 °C we recommend models N 100 - N 660, and for regular high firing temperatures above 1230 °C we recommend our models N 100/H - N 660/H.

Kiln Venting Nabertherm Kilns

During ceramic firing, certain clays and glazes can release gases and vapors that may be harmful if inhaled. For this reason, kiln exhaust should always be safely vented outdoors. We recommend connecting an exhaust pipe directly to the kiln to properly remove fumes. For models up to the N 300/H, a 3.15" (80 mm) diameter zinc-plated steel or stainless steel pipe is suitable. The exhaust pipe must be installed with a continuous upward slope to ensure proper airflow. Good room ventilation is also essential so fresh air can mix with the exhaust gases. For planning purposes, the exhaust piping system should be rated for a maximum temperature of approximately 392°F.

⚠️ Safety Note: The bypass connection and exhaust piping can become very hot during operation and may cause burns. Any wall ducting must be made from heat-resistant materials. We strongly recommend having a qualified local ventilation company size and install the exhaust system correctly. For Top series models, the exhaust pipe must be connected to the bypass outlet using an upward angled bend, allowing the lid to open freely.

Thanks to Nabertherm’s optimized insulation design and precisely matched bypass system, no additional ventilation system is required to achieve excellent temperature uniformity. The manual air inlet damper allows fresh air to enter the kiln so residual moisture can escape through the bypass system and out through the side exhaust connection. Once the kiln reaches 1112°F, the damper can be closed to ensure consistent firing results and outstanding temperature uniformity.
