Sheffield Pottery Inc.

L&L SM23T-3 School-Master K-12 School Kiln Bartlett Genesis Mini

Save $736.00
Regular price $5,535.00 $4,799.00
Unit price
per
SKU : LKSM23T3-A
Fires to
Cone 6
Loading
Top-loading
Made for
Pottery
What you get
Kiln only
Free Shipping Eligible on Orders Over $89
Availability: Approximate 12-16 Week Lead-Time
Availability

Shipping calculated at checkout.
  • Free ShippingLower 48 · orders $89+
  • Free InsuranceEvery order covered to your door
  • Kiln Experts on StaffCall 888-774-2529
  • Since 194680 years serving potters

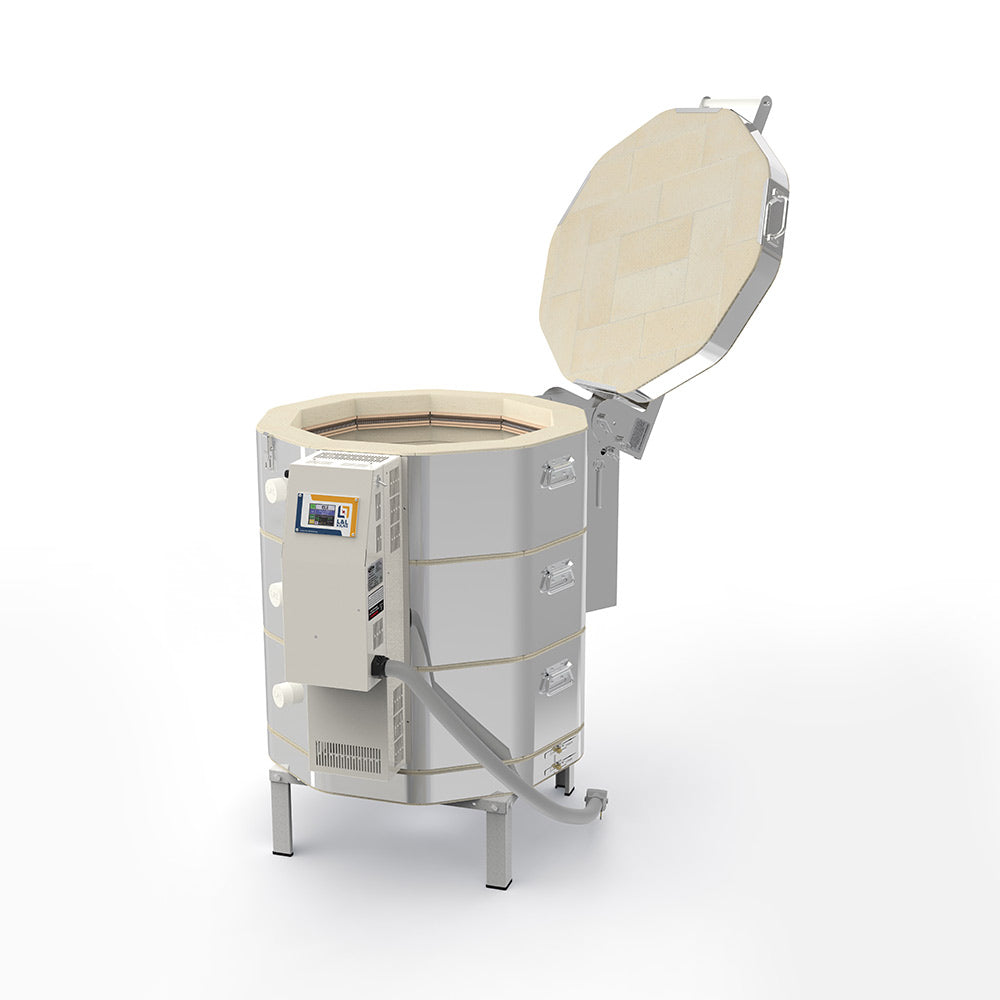

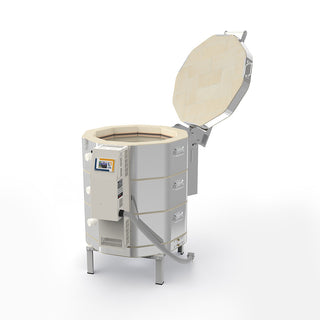

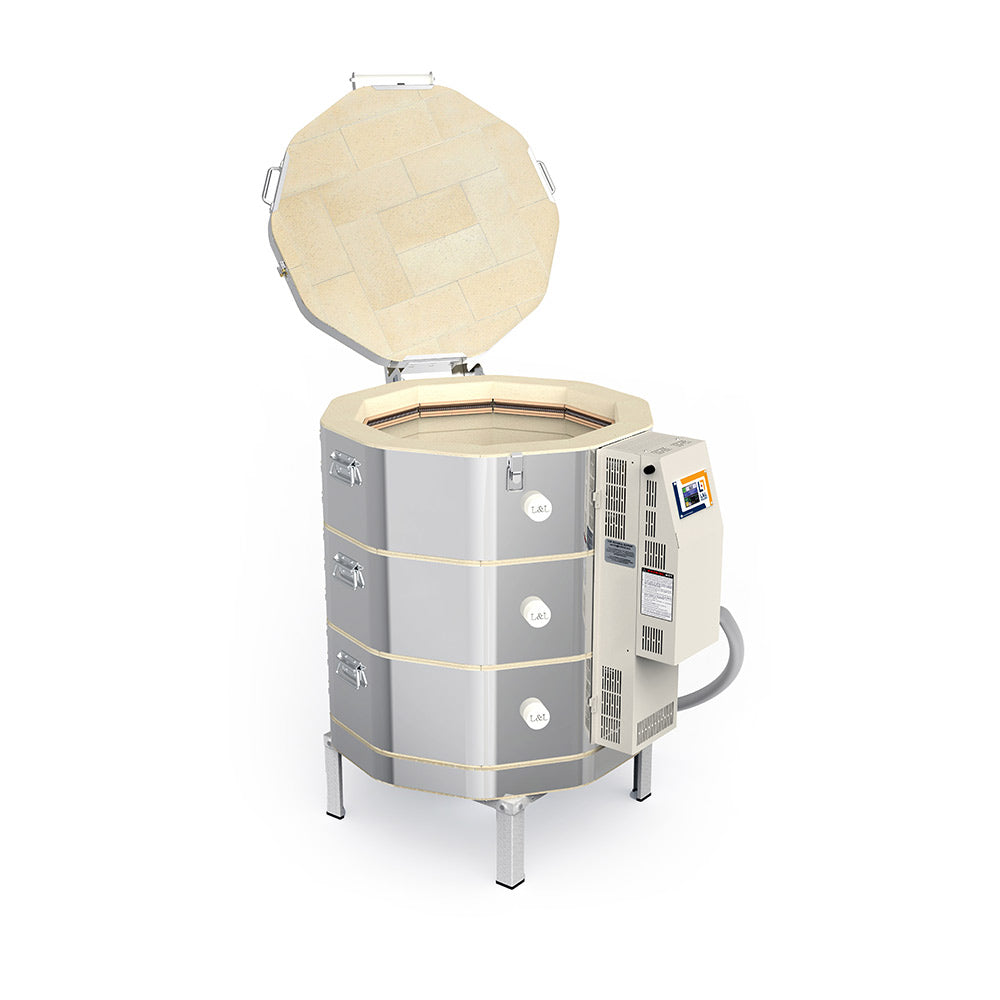

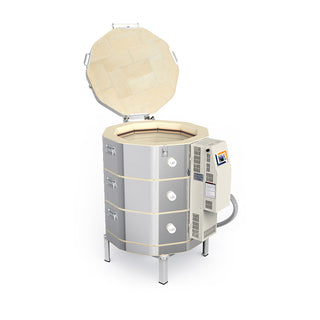

L&L SM23T-3 SCHOOL-MASTER K-12 SCHOOL KILN WITH Bartlett Genesis Mini

☎︎Call us to speak to one of our kiln expertsLet us help guide you to the right kiln for your needs!(888) 774-2529We are available 8:30 – 5:00 ESTLeave a message after hours with name, number, and the best time for us to call you back.Sheffield Pottery · Since 1946

L&L SM23T-3 SCHOOL-MASTER K-12 SCHOOL KILN WITH ONE-TOUCH� CONTROL

ASK ABOUT OUR PROFESSIONAL INSIDE DELIVERY IN THE NORTH EAST!
SCHOOL-MASTER
DESIGNED FOR K-12 SCHOOLS - WITH A FIVE YEAR LIMITED WARRANTY AND L&L'S NEW ONE-TOUCH CONTROL
SPECIAL FIVE-YEAR LIMITED WARRANTY. Proprietary One-Touch Intuitive Kiln Control is designed for busy school teachers - One touch and you are ready to fire the bisque and glaze programs typically used in schools (also easy to adjust simple parameters like cone, delay, hold, heat-up and cool-down rates). You can even create four custom ramp/hold programs.

Type K 8 gauge thermocouple with protection tube

Single zone with graded elements

 Full support 14 gauge aluminized steel stand

 Three solid peephole plugs with full view (no tapering)

Hard ceramic element holders | Proprietary reflective brick coating that protects brick and keeps dusting down | Easy-Lift, Easy-Load stainless steel spring hinge system with full-support when door is up and tilted back (there are no support bars to get in the way of loading) | Mercury-free relays | Plugs on all USA models (6-50 on single phase and 15-50 on three phase) | MET-us listing to UL499 standards is pending

Temperature Rating: All models rated for Cone 6 (2280F, 1248 C)except for the SM28T-3, 208V/1 phase which is rated for Cone 5.

Loading: Lid position, when open, rests at an angle away from the kiln without lid supports so that the loading is easy and unobstructed.

Spring loaded hinge for  feather-lite easy opening.

Heavy-duty 14 gauge full solid stand with multiple bends for strength. Bolt on legs.

Assembly: Three 9� high sections stack on top of each other. Easy to assemble. Bottom is reversible.

Construction: Stainless steel wrapped around brick with 3 clamps on each section. All stainless screws.

 K23 3" firebrick

Reflective coating protects brick and reduces dusting.

Element Holders: Hard ceramic element holders protect brick.

Elements: Six heavy-duty graded elements.

Element Connections: Proprietary all-ceramic element connection block makes changing elements easy.

Control Panel: All controls and components are mounted in a hinged control panel/element connection box. A layer of insulation and separation plate helps keep the controls cool. Control box can be easily removed for servicing. On/off switch and control fuse are included.


Relays: Mercury Free relays.

Type K 8 gauge with ceramic protection tubes prevent metallic dusting in kiln and result in longer thermocouple life.

Peephole Plugs: Non-fragile solid ceramic with heat-locked head. 1� diameter full-view non-tapered. One per section.

Power Cord/Plug: 50 Amp NEMA 6-50 six foot cord included for one phase; 50 Amp NEMA 15-50 six foot cord included for three phase.

Instructions: Complete visual instructions with control reference, process information, assembly, troubleshooting, and parts list.

Special Five-Year Limited Warranty. (See hotkilns.com/five-year-warranty.pdf).

UL Listing: Yes



Options :
Optional Vent System: Vent-Sure downdraft vent

Optional Furniture/Shelves Kit: All furniture kits include six each 1/2�, 1�, 2� 4�, 6� and 8� high 1-1/2� square cordierite posts, heat-resistant gloves and 5 pounds of cone 10 kiln wash.

Kiln Buyers Guide Not sure which kiln fits your work? Sizing, voltage, controllers and more, explained. Read the guide →
Specifications
Model Number Part Number for 3” Brick Volts/Phase Cone Limit Watts Amps Wire Size Fuse Size Power Connection
SM23T-3-A (USA) K-S-23T3/A1 240/1P 1 11500 48.0 6 ga 60 Amp 6-50 Cordset
e28M-240-3P / e28M-3-240-3P (USA) SM23T-3-A-3P 240/3P 1 11500 27.8 10 ga 40 Amp 15-50 Cordset
SM23T-3-A (USA) K-S-23T3/A1 208/1P 1 8990 43.2 8 ga 40 Amp 6-50 Cordset
SM23T-3-A-3P (USA) K-S-23T3/A2 208/3P 1 8990 47.9 8 ga 40 Amp 15-50 Cordset
SM23T-3-A (World) K-S-23T3/A1 220/1P 1 10060 45.7 6 ga 60 Amp Direct Wire
K-S-23T3/A1 (World) K-S-23T3/42 380/3PY 1 10060 15.0 10 ga 20 Amp Direct Wire
