Evenheat Kilns KF 36 Extreme Depth Heat Treat Oven

This oven is equipped with the Ramp Master 12 Key controller. Use options to upgrade to heat treating oven TAP touch-screen controller.

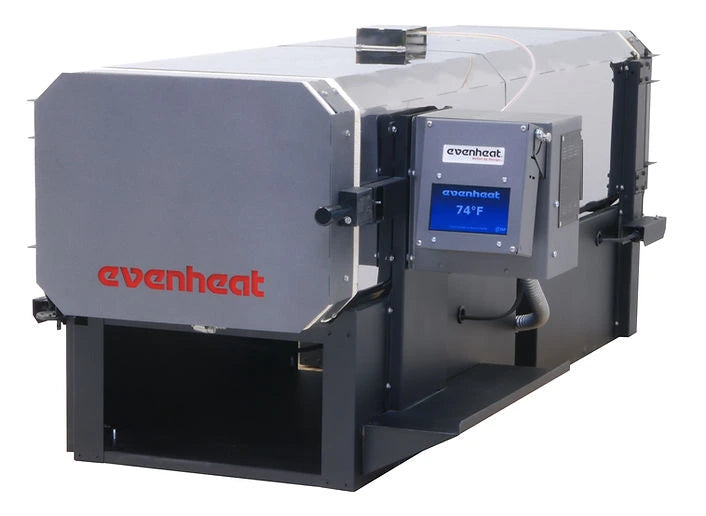

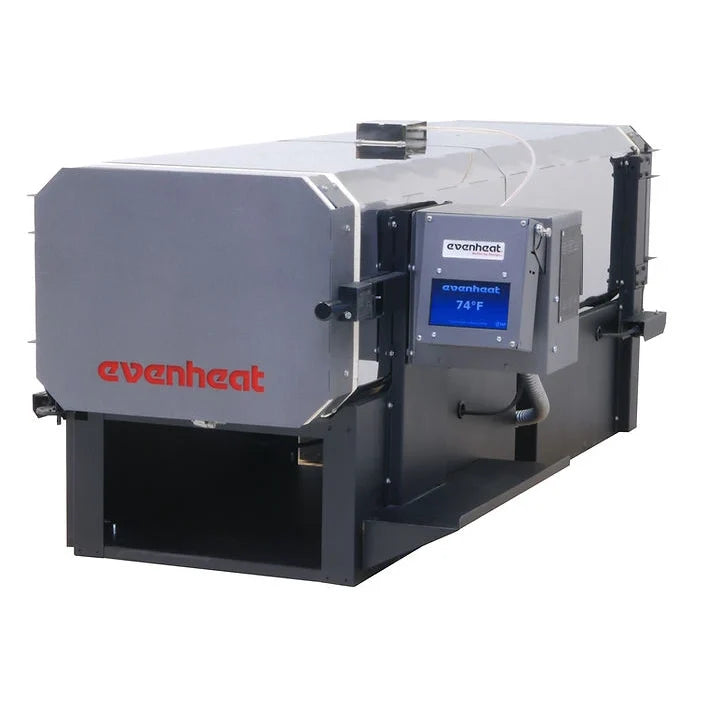

Shown with TAP.

Go deep with Evenheat's Extreme Depth, KF Series Ovens.

Our Extreme Depth models include all the great features of our standard KF Series ovens like swing-out doors and cool-touch handles, full stainless jackets and corner mounted hinge assemblies along with a depth of 36" and dual doors for easy front to back access.

Available with our TAP Touchscreen, Genesis Touichscreen, Rampmaster or Set-Pro controls.

KF Extreme Depth Model and Chamber Sizes
KF 36 - 10" W x 6.5" H x 36" D - 1.35 cubic feet

North American Electrical Specifications
Operating Voltage: All Models 240V
Amperage: All Models 30A
Watts: All Models 7200W
Cord Plug: All Models NEMA 6-50P

Maximum Usable Temperature: 2200°F (1204°C)

Ship Weights
KF 36 - 160lb (73kg)

All Models TUV listed (UL 499) United States and Canada

  • Swing View Adjustable Control
  • Access Port (Pat. Pend.)
  • Cool-Touch Handle
  • Corner Mounting Technique
  • Dual, Side Opening Doors
  • Excellent Temperature Distribution
  • Full Stainless Jacket
  • Loud Alarm Output Jack
  • Multiple Control Options
  • Open Ended Design
  • Responsive Thermocouples

Swing View Adjustable Control

The Swing View Adjustable Control is a pivoting, swing-up enclosure that allows the user to rotate the Rampmaster control to a comfortable viewing and programming angle. It is that simple. You're going to really enjoy this feature. The Swing View Adjustable Control is stock equipped on the KF Extreme Depth Ovens.

Access Port (Pat. Pend.)

Extreme Depth ovens incorporate Evenheat's new relay access port (Pat. Pend.) for simple, no-panel-off relay replacement.

Simply remove the plate to gain access to the service part. There's no need to remove or swing the entire control panel out of the way and dig into the internal wiring. It's absolutely simple and effective and all it takes is a simple screwdriver!

Cool-Touch Handle

The handles on our swing out doors are conveniently located at the front of the door, not hidden along the side. These spring loaded, phenolic handles are cool to the touch, are one-handed in design and serve as the door latch as well.

Corner Mounting Technique

The corners of the oven body and door provide excellent strength for mounting. The flat sides of the oven don't offer this strength. We install our load bearing hinge brackets on these corners for this very reason. Longer life, high reliability: solid design makes a difference.

Standard KF model shown for illustration purposes.

Dual, Side Opening Doors

Extreme Depth models feature our side hinged doors front and back for easy access. Our side hinged doors swing out to the left to keep the heat away for more cool and comfortable use. It's an excellent design choice that makes all the difference.

Excellent Temperature Distribution

Evenheat knife ovens are true to their name and the KF Series is no different. Our designs are well known for their excellent temperature uniformity. They're done well and you'll appreciate the performance.

Full Stainless Jacket

Multi-section ovens are designed to lower production costs for the oven manufacturer. it is a worthy goal but it comes at the cost of oven quality. It's a trade off we're not willing to make. We build our KF ovens with full stainless jackets from front to back. Full jackets mean absolutely solid, life extending construction. There are no leaks, no shifting, no buckles and no weakness. Insist on Full Stainless Jackets for true build quality.

Standard KF model shown for illustration purposes.

Loud Alarm Output Jack

Evenheat knife and heat treat ovens are standard equipped with a Loud Alarm output jack for use with our Loud Alarm Option.

Like most shops, knife maker and heat treat shops can be noisy. And, like most shops, distractions can get in the way of some very nice work. Cut through your shop noise with our Loud Alarm Option. The Loud Alarm sounds at a loud 80+ decibels! You'll never miss the opportunity to properly quench again.

The loud alarm option alerts the user when the heat treat process temperature and hold has been reached, and more importantly, when it's over and it's time to quench. Rampmaster and TAP control equipped Evenheat knife and heat treat oven models include a built-in alarm jack for easy install: simply attach the optional loud alarm and plug it in.

Multiple Control Options

Evenheat works closely with control manufacturers Bartlett Instruments and SDS Industries to bring you the best in performance, features and programming ease.

Control Options Include:

TAP Touchscreen, full featured touchscreen control with user-defined and preset programs for glass, metal clay and ceramic. Also features full-text graphics, cost per firing, and graphing along with wi-fi compatibility with web and mobile apps and more.

Genesis Touchscreen, full featured touchscreen control with user-defined and preset programs.

Rampmaster 3 (RM3), full featured control with user-defined and preset programs for glass. Features a 4 digit display.

Economical Set-Pro, 3 button control with user-defined and preset programs for glass, metal clay and ceramic. Features a 4 digit display.

Open Ended Design

Extreme Depth models are designed with a straight through, open ended design for easy access and use.

Responsive Thermocouples

Our thermocouples (temperature sensors) are chosen for their quick response and reliable performance. Our standard thermocouple is a Type K. Type S thermocouples are available by request on Rampmaster equipped ovens at additional charge.
