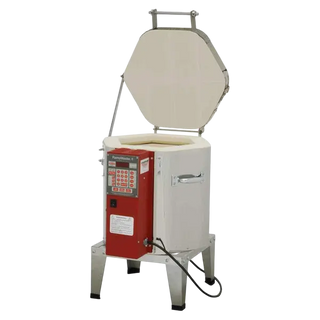

Evenheat HF 1210B Cone 10 Kiln
The HF 1210-B is designed for porcelain bisque firing as well as lower temperature china painting. The HF 1210-B is built with 3" firebrick with a maximum of cone 10 (2350°F).
The HF 1210-B operates from 240V.
The HF 1210-B features our TAP II, Icon+, Icon and Rampmaster II controls and is standard equipped with our exclusive Swing View Adjustable Viewing which you will absolutely enjoy.
Order yours with our Quiet Drive Solid State relay option for tight temperature control and longer element life.
Specifications
Chamber Dimensions:
- 11.25" Diameter x 13.5" Deep - 0.86 Cubic Feet
-
(28.6cm Diameter x 34.3cm Deep - 24.4L)
Outside Dimensions:
- 23.50" D x 17.25" W x 27.5" H (with 8" stand)
-
(59.7cm D x 43.8m W x 69.9cm H)
Maximum Use Temperature:
- 2350°F (1288°C) / Cone 10
Standard Electrical:
- 240 Volts, 13 Amps, 3120 Watts, 50/60Hz, Single Phase
-
Power Cord Plug Configuration - NEMA 6-20
Weight:
- 65lb. (29.5Kg) - Approx.
Features
Top Load
The HF 1210-B is a top loading design and offers a chamber 11.25" diameter x 13.5" deep. The HF 1210-B is built with 3" firebrick allowing it to reach temperature easier.
Wonderful Lid Handle
We love handles. Handles have to be properly sized and shaped for the job. Our lid handles make this point by offering an 8" handle that's easy to grasp and operate.
These wide, corner mounted handle allows for confident and easy lifting, even with a gloved hand. It's unlike any other and it's a joy to use.
2 Position Lid Vent
The HF 1210-B is equipped with a 2 position lid vent. Perfect for speeding up the cooling process.
Swing View Equipped
The HF 1210-B temperature controls are fitted to our Swing View Adjustable Enclosure.
The swing view is a pivoting, swing-up enclosure that allows you to rotate the control to a comfortable viewing and programming angle. Once you're done, lay it back down to see it from across your studio. It's that simple.
The swing view pairs well with touchscreen controls like the TAP II, Icon+ and Icon as viewing angle can be perfectly aligned. You'll love it.
3" Firebrick with No Loss in Chamber Volume
Historically kiln designs were based on 2-1/2" firebrick. As 3" firebrick began to show favor in high temperature designs many kiln manufacturers simply reduced the firing chamber size to accommodate the thicker firebrick while leaving the outside dimensions the same.
At Evenheat we took a different direction. Instead of making the chamber smaller we kept it the same while increasing the outside dimensions. In this way there is no loss in chamber volume and common, standard kiln furniture would continue to fit. Nice.
Swing-Away Peephole Covers
Our kiln designs feature swing-away peephole covers as opposed to plugs.
Plugs get lost and they get broken. Our attached peephole covers remain on the kiln and simply swing open and closed. You won't lose them and they certainly won't break.
Lid Prop
The HF 1210-B is provided with a lid prop bar that positively keeps the lid in the open position. Simple operation is made even easier with our well designed lid handle.
Relay Access Port
The HF 1210-B incorporates our Relay Access Port for simple, no-panel-off relay replacement.
Simply remove the access plate to gain access to the mechanical relays. There's no need to remove the control panel and dig into the internal wiring. It's absolutely simple and effective and all it takes is a screwdriver!
It's a given that mechanical relays will fail at some point. This relay access port really comes in handy when they do.
Full Stainless Steel Jacket
Multi-section, multi-jacketed kilns were conceived to lower production costs for the kiln manufacturer and to make life easier for the person installing the kiln. These are worthy goals but they come at the cost of kiln quality. It's a trade off we're not willing to make.
We build our kilns with full stainless jackets from top to bottom. Full stainless jackets mean absolutely solid, life extending construction. There are no leaks, no shifting and no weakness. Insist on Full Stainless Jackets for true build quality.
Build Options
Multiple Control Options
The HF 1210-B is available in a variety of controls including the Icon, Icon+, Tap II and Ramp master II.
At Evenheat we take the best control platforms on the market and make them even better by adding Special Limits thermocouples for precise temperature sensing and non-metallic faceplates for stellar Wi-Fi reception for on-line Apps. Visit our Controls tab to learn more about our controls and why they represent the very best that you can get.
Quiet Drive Solid State Relay Option
The HF 1210-B is available with our Quiet Drive Solid State Relay option.
Our Quiet Drive Solid State Relay System offers tight temperature control, high reliability and increased heating element life. We fully expect our solid state relay to last the life of the unit. You want this!
Voltage Options
Production for the HF 1210-B is 240V.
All controls available on the HF 1210-B will operate properly on both 50Hz and 60Hz line frequencies. To say it another way, line frequency has no effect. It doesn't matter.
Evenheat recommends that you check your operating voltage before ordering or placing the kiln in service.
Voltage Phase Options
The HF 1210-B is not available in 3 phase Delta or Wye.
