Peter Pugger Single Jar Ball Mill
Peter Pugger Single Jar Ball Mill

Peter Pugger Single Jar Ball Mill

$1,999.00
Item Class: BALL MILLS
SKU : PPSBM
Availability: Direct Ship - 6 to 8 Weeks
Availability

Shipping calculated at checkout.
mobile icon

HAVE QUESTIONS ? Call Us

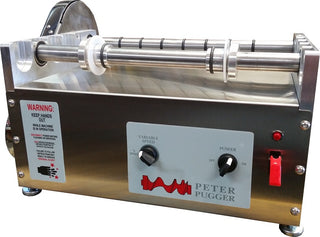

Peter Pugger Single Jar Ball Mill

Single Jar Ball Mill
Innovative design features, including variable speed control, inverter controlled drive for high electrical efficiency, drop-in slots for quick roller bar change-out, easily accessible roller shaft bands and wrapped in a beautiful Stainless Steel shroud making Peter Pugger’s Single Ball Mill the first choice for small-scale to large-production milling.
  • Jar Capacity: 3″ diameter min. diameter up to 18″ max. diameter
  • Dimensions: 22″L x 17″W x 15″H
  • Crated Weight: 62 lbs. (Ships UPS/FED EX Ground)
  • Electrical: 1/4Hp, 1ph, 4 amps 120V, 2 amps 240V
  • Options: 3-phase, 50hz and other motors are available on special orders.
BALL MILL JARS
MODEL DIMENSIONS & WT.
5 Quart 8.5"Dia. x 11"Ht., 18 lbs.
3 Gallon 11.5"Dia. x 14.5"Ht., 32 lbs.
These deluxe ball mill jars are made of high quality porcelain and are designed to be used in conjunction with the Peter Pugger Double Ball Mill. The deluxe jars have a large mouth and thicker walls than standard jars. The capacity stated is the liquid capacity of the jar including the recommended amount of alumina grinding media. The deluxe jars come with an end cap and clamp.
GRINDING BALLS
BALL SIZE RETAIL PRICE QUANTITY PER LB.
1/2" $10/lb. 100ea./lb.
3/4" $10/lb. 30ea./lb.
1" $10/lb. 15ea./lb.
1 1/4" $10/lb. 7ea./lb.
These white alumina grinding balls are non-contaminated and assure thorough mixing and grinding. Typically a ball mill jar is filled 55% with grinding balls.
