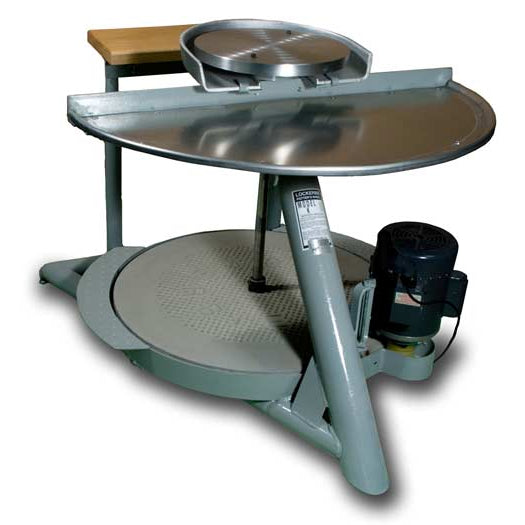

LOCKERBIE Model EK Electric Kick Wheel
Model EK, the motorized electric kick wheel with an optional reversing switch,
is driven by a heavy-duty 1/3 hp motor with a rubber friction drive.
When the drive is disengaged the wheel will operate as a manual kick
wheel. To use the drive, simply depress the foot pedal to engage the
rubber drive against the edge of the flywheel. Speed range is 0-157
RPM. The pottery kick wheel is whisper quiet, controlled with a switch conveniently located at the edge of the work table and has enough power to center 50 lbs of clay.
Option: You can add a reversing switch.
*$50 Crating Charge per Laguna Ships Freight: 300 lbs FOB either : City of Industry, CA 91746 or Byesville, OH 43723
Standard features for Models K&EK
-
Overall Size: 36" x 42" x 28"
-
Frame: Steel pipe and angle iron, welded into a rigid tripod unit.
The edge of the flywheel is completely shielded by heavy steel bands.
Finished in light gray enamel.
-
Flywheel: Reinforced concrete flywheel with a textured surface to
provide positive traction for kicking. 28" diameter
-
Work Table: Made of heavy gauge aluminum and reinforced to support
up to 200 lbs. Large enough to hold bucket, clay and tools.
-
Bearings: Chosen for smooth operation. Under the flywheel is a tapered,
roller bearing protected by a 3" shield. Under the wheelhead is
a ball bearing.
-
Seat: Made from red oak.
-
Splash Pan: Included on both models.
-
Motor: (on motorized model only) 1/3 hp 120 volt capacitor start.
Engaged by foot pedal which makes motorized model adaptable for use either
as an electric kick wheel or power wheel.
