L&L E28T-3 Easy Fire-Kiln: 10.2 Cubic Feet: 240/1 & 208/3 In Stock

Save $726.00
Regular price $5,575.00 $4,849.00
Unit price
per
SKU : LKE28T
Item Class: POTTERY KILNS
THIS PRODUCT QUALIFIES FOR FREE SHIPPING FOR MOST LOCATIONS
Availability

Shipping calculated at checkout.
mobile icon

HAVE QUESTIONS ? Call Us

Free Shipping (some items excluded)

Kiln & Ceramic Experts on staff

One stop shop for Ceramics Supplies

Americas Premiere Clay Maker

Ceramic Supplier since 1946

World Class Support

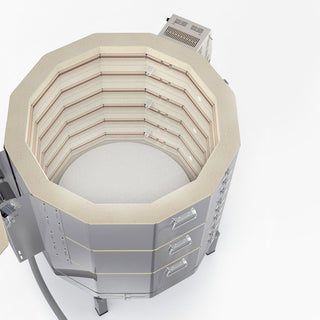

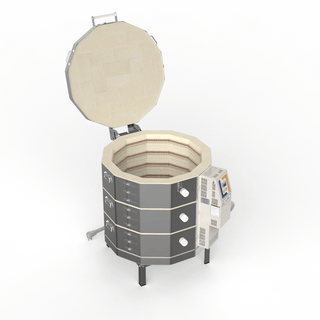

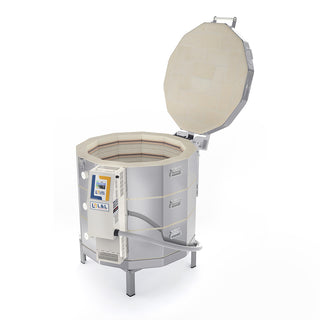

L&L Kilns e28T-3 Pottery Kiln

3" Brick. 10.2 cubic feet for bisque, low-fire and mid-fire ceramics

L&L model e28T-3 Easy-Fire Kiln is a large studio kiln. It is recommended as a bisque kiln or for low-fire ceramics. This kiln is at home in schools and contemporary studios.
If you want this size and need to do cone 6 or higher then consider the L&L EQuad Pro 2827 : here.

L&L Kilns Easy Fire e28t-3
The L&L Easy Fire Kilns feature easy firing with the 12 Key DynaTrol digital controller. Select the upgrade to the state of the art, wiFi enabled Genesis Touch Screen Controller.
The controller is mounted in an easy-open cool-firing control panel that is angled for easy viewing.
L&L Kilns all come with hard ceramic element holders, thermocouple protection tubes, strong solid-top stand, easy-lift spring hinge, and solid peephole plugs.

NEMA 6-50 single phase or 15-50 three phase 6 foot power cord included. C-MET-us listed in the USA & Canada.
Cone 10 for all three phase models- see below for single phase.

Note about e28T-3 Easy-Fire Kiln on 1 phase power

The e28T-3 kiln is only rated for Cone 8 when the power supply is 240 volts, 1 phase.It is only rated for Cone 5 when the power supply is 208 volts, 1 phase.

A cone rating should be several cones higher than the cone you plan to fire to. Elements in a kiln that is rated for cone 8 will not last very long when firing to cone 5 or 6 especially with heavy loads.

That said- if you answer yes to any of these following questions, you probably want to go with a more powerful L&L, like the JD2927-3 (if you need UL listing). Both of these kilns, in the single phase versions, have more power (watts) than the e28T-3 and will consistently deliver the power you need to reach Cone 6. On the other hand, both the 240 and 208 volt three phase versions of the e28T-3 deliver plenty of power (watts), so this note does not apply to three phase e28T-3 models.

  1. Do you fire to Cone 5 or 6 at least twice a month?
  2. Would you fire with more than 3 layers of kiln shelves in a kiln this size?
  3. Can you get a larger circuit breaker? (80 amp breaker for 240 volts, 1 phase OR 90 amp breaker for 208 volts, 1 phase)

NOTE: If the largest circuit breaker you can have is a 60 amp breaker on 240 volts, 1 phase power, you should either get a smaller L&L- like the e23T-3 , or count on changing the elements often- about every 30 or so firings. Another help is to get the Quad element option. With the Quad element option the elements will last longer but you won't get any more power in the kiln (so you could still get slow firings).


Features
Element SupportHard Ceramic Element Holders
Element Terminations Stainless Bolts on Ceramic Blocks, no special tools needed
Zone ControlIncluded at no extra cost (three zones)
ThermocouplesHeavy-duty 8 gauge with Ceramic Protection Tubes (3)
HingeSpring-Assist reduces weight of lid
Hinge Support BarsNo - nothing to get in way of loading
Door Angle When OpenTo the back (doesn t hang over opening)
Hinge Safety LatchYes. Locking plunger pin, very positive & secure
StandFull support, 14 ga aluminized steel with rigid bends
Elements Heavy-Duty
Brick CoatingReflective coating on entire interior, hardens brick
Easy Delay Start, Preheat, HoldYes
Number of Easy Ceramic ProgramsFour
Number of User-Defined ProgramsSix
InstructionsComplete easy-to-read visual manual, Video included
On/Off SwitchYes - you can turn kiln off
Control FuseYes
Control PanelRemovable, separate piggybacked panel for control
Power Cord
6-50P for 1 phase, 15-50P for 3 phase
Sectional Construction Yes, easy to move and set up
Reversible BottomYes
Cone LimitationVaries with voltage and phase, See table on first page
Brick Thickness3''
Case ConstructionStainless Steel, 3 clamps each
Assembly ScrewsStainless Steel
Safety Agency Listingc-UL-us listed, Vent-Sure vent is also c-UL-us listed
VentDowndraft, fumes under vacuum, motor on wall
WarrantyThree Year Limited Warranty for both kiln & vent


Optional Vent Sure System
By mounting the fan assembly away from the kiln L&L ensures the safety of the vent, keeps the vibration of the motor away from the kiln and ceramic ware, and keeps the heat of the kiln away from the fan motor for long trouble-free life. The fumes can’t get pushed out into your room through a leak in the duct. The patented downdraft technology from Orton improves kiln uniformity and improves glaze color. Easy-fire kilns and the Vent-Sure vent system are c-UL-us listed.



L&L Easy_fire Kiln Specs
