Cone Art GX2322DSQ Square Kiln Package with Integrated Vent, Furniture, and Genesis Touchscreen: 240/1 In Stock

Save $1,481.00
Regular price $7,120.00 $5,639.00
Unit price
per
SKU : TUCGX2322DSQP
Item Class: KILN PACKAGES
THIS PRODUCT QUALIFIES FOR FREE SHIPPING FOR MOST LOCATIONS
Availability

Shipping calculated at checkout.
mobile icon

HAVE QUESTIONS ? Call Us

Free Shipping (some items excluded)

Kiln & Ceramic Experts on staff

One stop shop for Ceramics Supplies

Americas Premiere Clay Maker

Ceramic Supplier since 1946

World Class Support

Cone 10, 7 Cubic Feet

Turn Key Package: 7 cubic feet capacity 23" Square Kiln. 22.5" Tall interior for easy loading!

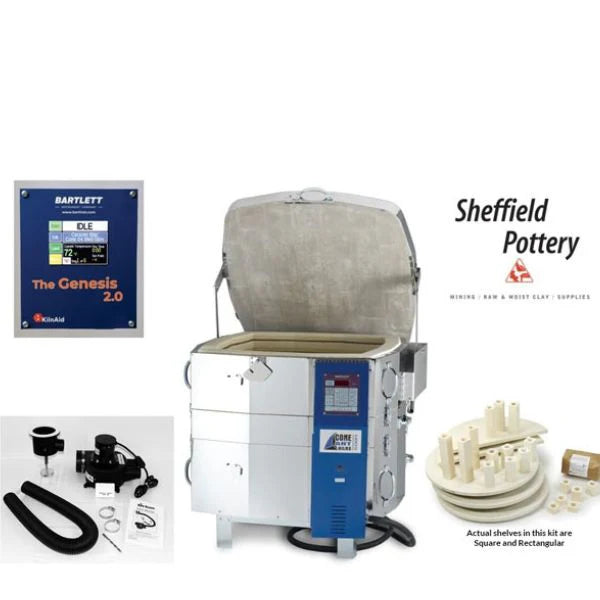

The Cone Art GX2322DSQ Square Kiln Package includes a factory installed Orton Kiln Vent, Cone 11 rated High Alumina Furniture Kit, and the state-of-the-art wifi enabled Bartlett Genesis Touchscreen Controller.

Cone art Kiln Package GX 2322dsq

Note: pictured generic furniture kit: this kiln uses square and rectangular shelves

People love the 2327DSQ so much that we decided to extend the line up. Now that same stacking space of square shelves is available in shorter models too. Not all pots are round…..and all kilns shouldn’t be either.

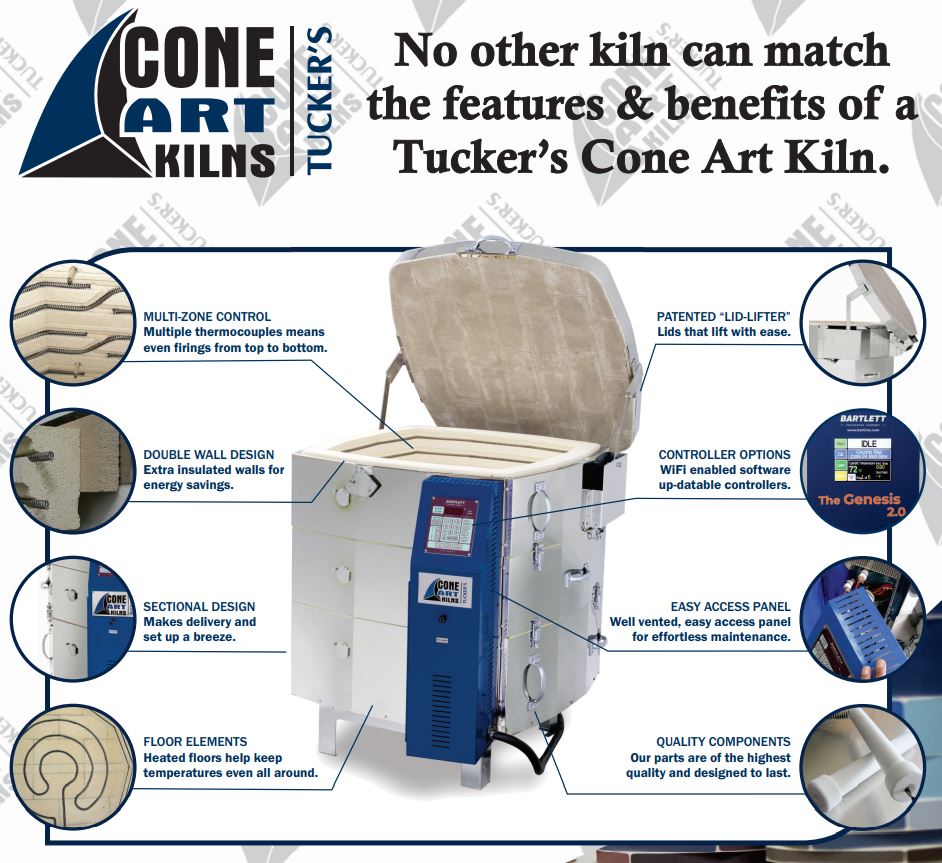

This top loader comes with all the standard features that set Cone Art apart: heavy duty floor element, double wall design, patented lid lifter system, multi zone control, and over sized swing out control panel. The 3 zones and floor element ensure even firing top to bottom even at cone 10!

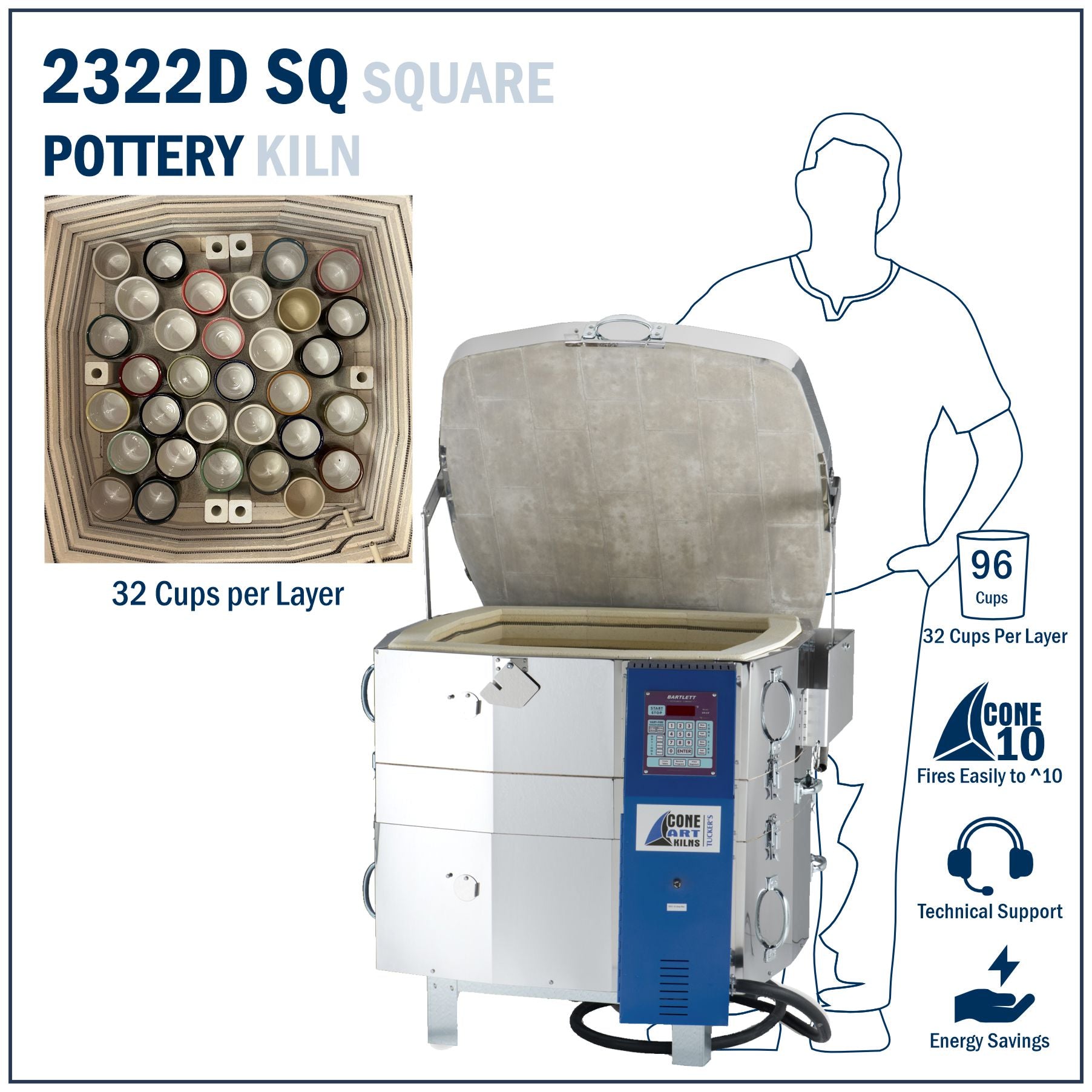

The 2322DSQ has a full 7 cubic feet of stacking space.
As you would expect, the square shape is great for tiles and other boxy items. But the nice thing about a square kiln is that your posts are set out in the corners so you have lots more usable space for large round plates and platters ! This kiln features the Bartlett Genesis Touchscreen controller for state-of-the-art access to your firings !

Included Furniture Kit

  • 3 – 21x21x3/4″ square shelves
  • 2 – 21×10-1/2×3/4″ shelves
  • 3 ea: 1, 2, 6, 8″ posts
  • 6 – 4″ posts
  • 2 kgs. Kiln wash

Technical Specification

Model Dimensions (inches): w (x l) x h Inside | Outside Sections Cubic Feet Ship Weight
(lbs)
Phase Amps 240V | 208V Breaker Rqd** CU Wire GA AWG) kW
2322D SQ 23 x 23 x 22.5 | 32 x 32 x 27.5 3 7 350 1 55 | 63 70A, 80A 6, 4 13.2
3 31.9 | 36.3 40A, 50A 8, 6
  • 7 Cubic feet
  • 23″ wide X 22.5″ deep
  • Double wall construction
  • Kanthal A-1 Elements
  • Sectional Design
  • 208 or 240 Volts
  • 70 or 80 Amp breaker required
  • 3 Zone Bartlett Controller at NO EXTRA CHARGE
  • Lid lifter Design at NO EXTRA CHARGE
  • CSA Approved
