BTH - Andromeda D3 Pottery Wheel

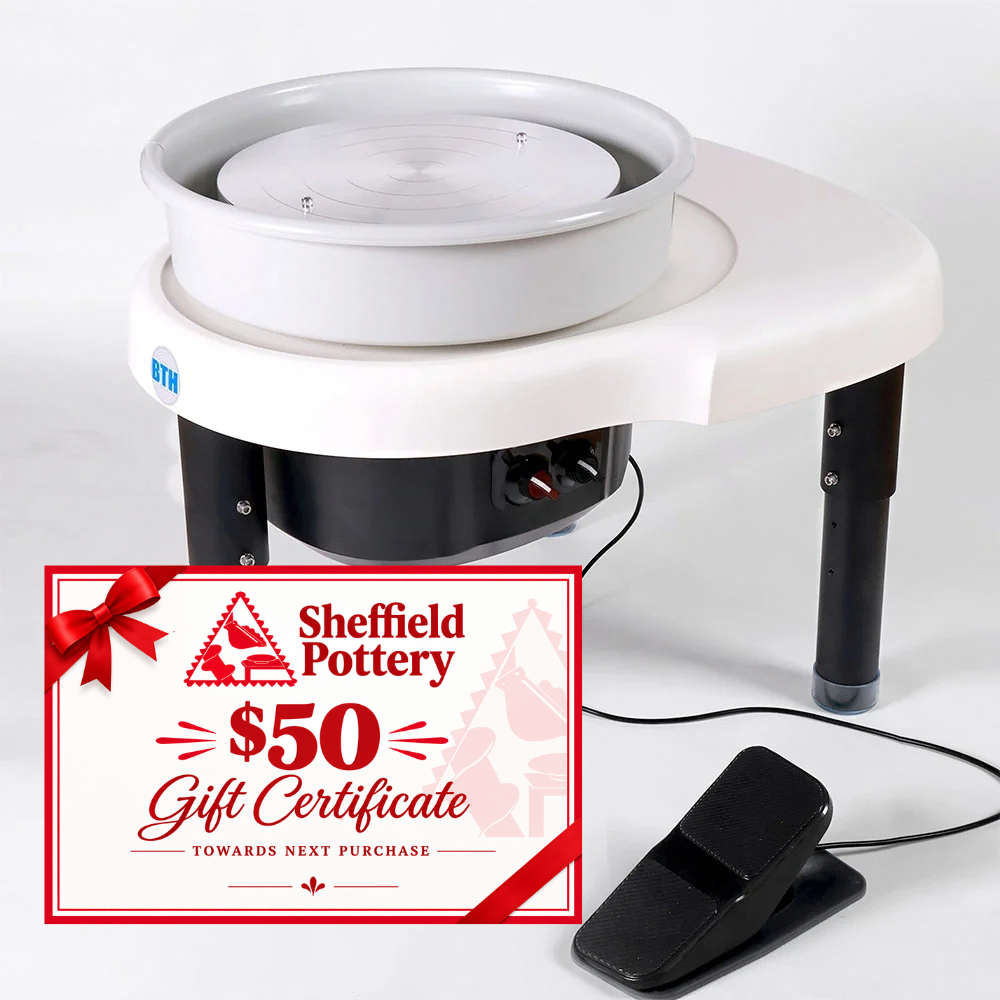

Andromeda D3 Pottery Wheel by BTH

Quiet. Powerful. Precision-Engineered.
Crafted in the legendary ceramics capital of Jingdezhen, the Andromeda D3 by BTH is a next-generation pottery wheel that combines cutting-edge magnetic direct drive technology with thoughtful, studio-friendly design. Built for both hobbyists and professionals, this wheel offers unmatched smoothness, control, and durability—wrapped in a compact, ultra-quiet frame.

Key Features:

• Direct Drive Motor (1HP, 400W):
  Magnetically powered for ultra-smooth and whisper-quiet performance (≤40 dB), even at low speeds. This powerful motor delivers high torque with precision control across a full 0–300 RPM range.

• 14" Aluminum Wheel Head:
  Scratch-resistant and easy to clean, with standard 10" bat pin spacing. Spins freely like a banding wheel when powered off—perfect for decorating and trimming.

• 132 lb Centering Capacity:
  Robust design supports heavy loads with minimal vibration or runout.

• Hall Effect Foot Pedal:
  Waterproof and corrosion-resistant, made from durable aluminum alloy. Provides responsive, smooth control with long-lasting reliability.

• Removable Magnetic Splash Pan:
  Leak-free, easy to clean, and designed with 360° rotation for maximum accessibility.

• Adjustable Legs / Tabletop Compatible:
  Built with sleek, anti-static triangular Q235 steel supports, height adjusts to three levels (42 cm, 47 cm, 52 cm / approx. 1'4.5", 1'6.5", 1'8.5") to accommodate sit-down or tabletop throwing.

• Forward/Reverse Direction Switch:
  Effortlessly switch between clockwise and counterclockwise wheel rotation—ideal for left- and right-handed potters.

• Start/Stop Stability:
  A unique programmed control system prevents pendulum swing at start and stop for added precision.

• Safe & Certified:
  Features UL-certified waterproof switches, flame-retardant panels, anti-leakage plugs, and strong impact resistance. Tested for electromagnetic compatibility and certified under EN 62233:2008 and EN60335-1-2012 standards.

⚠️ Safety Note: This magnetically powered wheel may pose risks for individuals with pacemakers. Please consult a physician before use.

Specifications:

• Model: BTH-ILP-DD03

• Motor: 1HP / 400W Direct Drive (DC)

• Speed Range: 0–300 RPM

• Wheel Head: 13.8" (352 mm) diameter, 10" bat pin spacing

• Centering Capacity: 132 lbs (60 kg)

• Noise Level: ≤40 dB

• Acceleration Response: <1 second

• Deceleration Response: <2 seconds

• Voltage Options:

  • AC 110V / 60Hz (USA)

  • AC 220V / 60Hz (China)

  • AC 230V / 50Hz (Europe)

• Dimensions: L72.5 × W64 × H48–58 cm

• Net Weight: 81 lbs (37 kg)

• Shipping Weight: 101 lbs (46 kg)

• Shipping Dimensions: L80.5 × W72 × H42.5 cm

Warranty:

Covered by a 5-year manufacturer’s warranty including parts and technical support.
