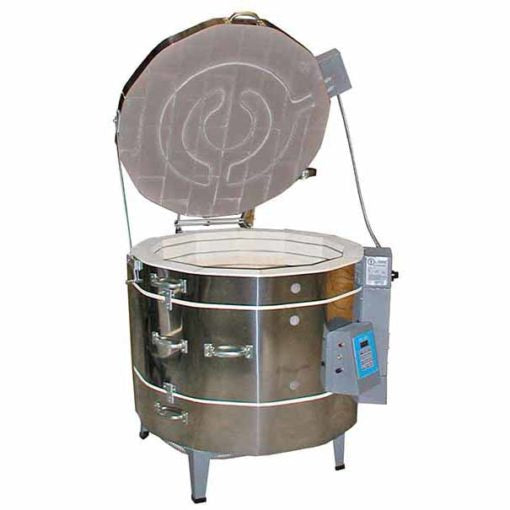

Olympic 2823H "Stackable" Electric Kiln with V6-CF Electronic Controller : 8.34 Cu. Ft: Cone 10
See complete specifications for this model in charts below.
Olympic Kilns: Here is the
place to order your Olympic Kilns. Always on sale, we offer Olympic
kilns for ceramics and glass fusing in both gas fired kiln and electric
kiln models. Ask about our delivery and Professional Inside Setup.
We carry all Olympic Kilns parts and accessories and we offer repair services as well.
Olympic 18", 23" and 28" Multi-Sided Electric Kilns
Olympic's stackable electric kilns are designed to come apart so that you can easily move them from one location to another, easily work on one section of the kiln without taking the entire electrical system off the kiln, and increase or decrease the depth of kiln as needed. Note: Stackable does not indicate that the kilns are stackable, it refers to the stacked rings construction.
Note: Select cone 10 versions of these kilns are available as the FREEDOM SERIES which bundles the kiln with it's furniture kit, vent system and more for a special reduced price... so for most people the Freedom series is a great place to get started... Click here to go to the Freedom Series Versions. OLYMPIC 18-INCH SERIES
The 18" series is a good starter kiln for the home artist
who plans to be firing multiple items at a time.
18" kilns are available in 3 depths: 18", 23" and 27".
All Olympic 18 inch kilns built in sections have a metal stand, hinged lid, stainless steel jacket, plus the unique Olympic inter-tie system with the recessed prongs connecting the rings. A bonus feature of Olympic Kilns built in rings is the reversible bottom, which can be easily turned over in the event of damage to one side.
OLYMPIC 23-INCH SERIES
The 23-inch kiln has long been
the standard for commercial sized
loads. The Olympic 23-inch series
is available in depths of 18 to 31
1/2 inches, allowing the studio
owner space for large loads or tall
and bulky items. The 23-inch kilns
can be fired everyday with high
performance heating and controlled
cooling, giving a perfect
fi ring every time. Every 23-inch
kiln is equipped with a hinged
lid, pilot light, metal stand, and stainless
steel jacket. The ring construction, separate
bottom, and easily detached lid make this large kiln easy to
set up and move if necessary. The elements of the Olympic
23-inch kilns are carefully balanced to give even heating
regardless of the size of the load in the kiln. Models 2318
and 2327 fire to cone 8, 2300°F,
whereas, models 2323 and 2331
fire to cone 4, 2100°F. Any of these
models are available in the "H" versions which fire to cone
10, 2350°F.
The 23" series generally
works well in the school environment
or for the home or studio artist who
has outgrown the 18" series. There are four depths available for the 23" kilns : 18", 23", 27" and 31"
OLYMPIC 28-INCH SERIES
The 28-inch series are all built of 3” brick; however, heavy-duty elements are installed on cone 10 versions. The standard features are hinged lid, pilot light, metal stand, and stainless steel jacket. The top and bottom sections are
connected to the center section by an interconnecting plug.
This allows the sections to be easily separated and reduces
the amperage carried by the interconnecting plug to just
one element. The ring construction and easily detached lid
make these kilns easy to move and easy to change depth if
necessary.
Olympic 28-inch, oval and
cone 10 Olympic Kilns have twenty percent more wall thickness means a stronger
more efficient kiln. Compare the amperage draw of the Olympic 28-inch and cone 10 kilns
with our competitors to tell the true story. You have the added insulation, while retaining the
strength of the brick.
The 28-inch cone 10 kilns have balanced
heating elements to insure even heating of
the firing chamber under all firing conditions.
Whether your need is high firing of
porcelain and stoneware or efficient firing
of ceramics requiring low temperatures, the
Olympic 28-inch series kilns are right for
you.
The 28" series serves well as a production
kiln for the contemporary studio and
production potter.
All 28" kilns
are built with 3" brick whether
they are cone 8 or cone 10 kilns.
There are four depths available for the 28" kilns : 18", 23", 27" and 31".
Every size kiln is available in a regular (cone 8except 2323 and 2331 which are cone 4) or "H" (cone 10) version.
The 18 and 23"-inch series cone 10 kilns are built of brick with extra
thickness, rather than adding more wattage or non-brick insulation.
The extra insulation means the cone 10 kilns do not
require more power to achieve higher temperatures, and low
temperature firing is accomplished with increased efficiency.
Increasing the wall insulation with thicker brick, rather than
with soft insulation, retains the strength and rigidity of the
standard Olympic Kiln, and brick replacement and maintenance
is extremely easy. The cone 10 kilns look much like
our regular kiln, and their interior dimensions are the same
as the corresponding standard kiln. Olympic Kilns proven
electrical box design, has heat shields and top and bottom
perforations to keep the electrical components cool.
Non-powered Blank Rings are available for each of the 3 widths.
Note: Blank rings decrease the maximum firing temperature of a kiln by about 2 cones.
Each kiln comes with stand, peephole plugs, instruction manual,
and warranty card.
One-year warranty on "H" models , Two-year on non-"H" models.
See chart below for all of these kilns specifications.
