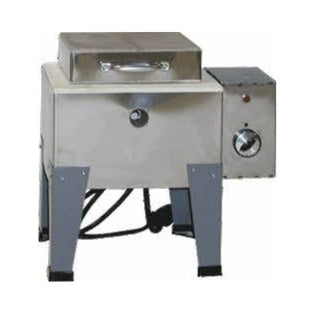

OLYMPIC HB64 : Cone 10, Top Loading 120 Volt Electric Kiln
OLYMPIC HOTBOX : Top Loading 120 Volt Electric Kiln from Sheffield Pottery Ceramics Supplies. A great kiln for small projects, clay testing, glaze tests, and PMC.
Fast firing, cone 10, 120 volt, and
inexpensive all-in-one Olympic
HB64. The
square firing chamber is surrounded
by a stainless steel
jacket and reaches cone 10,
2350°F on 120 volts in less
than two hours. Attached legs
or stand allow the kilns to be
used on any surface, including
countertops. Kanthal A-1
elements insure long life and the infinite switch controls heating
to an exact temperature. Although built with a low purchase
price as an objective, the materials and workmanship found in
the HotBoxes are backed by Olympic’s years of experience.
Inside dimensions:
6.5" x 6.5" wide
x 4.5" deep
Fires to
cone 10/2350°F
Model comes with:
- attached stand,
- peephole plug,
- instruction
manual,
- and warranty card.
- One-year
warranty
Model
|
HB64E
|
Wiring Specifications
|
Equipped with Lid Lift Assist
|
N/A
|
120 Volts
|
Inside Chamber Dimensions w x d x h (inches)
|
6.5 x 6.5 x 4.5
|
15 Amps
|
Cubic Feet
|
.11
|
1800 Watts
|
Outside Dimensions with Stand or Frame w x d x h (inches)
|
16 x 16 x 13
|
20 Amp Breaker
|
Brick Thickness
|
2.5”
|
Plug Configuration: NEMA 5-15
|
Maximum Temperature
|
Cone 10 - 2350°F/1288°C
|
Copper Wire Size: #12, #10 if circuit is longer than 40'
|
Est Ship Wt
|
34 lbs
|
Options include : furniture kit, pyrometer or kiln sitter, kiln sitter with limit timer, 3 key controller and 12 key controller.
See complete specs in chart below:

|
|
 |
 |
 |
 |

|
