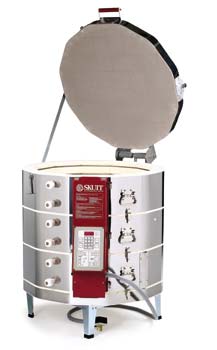

Skutt Kiln KM1227-3

SKUTT KILN KM1227-3

Finally, an electric kiln line designed specifically for volume production and fast turnaround of high mass loads. It has the power and industrial components to go straight to temperature with a full load of tile or stoneware – no slow struggling to reach the final temperature. The standard KilnMaster controller gives you the options of Cone Firing, or selecting your own 8-segment Ramp/Hold firing programs. The combination of direct wiring, heavy duty elements, connectors and relays, plus traditional Skutt stainless steel and firebrick construction results in a kiln that will last for years of constant use. Among the most powerful on the market today, the line was designed at the request of Skutt customers.

Skutt KM-1227-3 Electric Kiln

Automatically the top producer.

This is the perfect automatic single phase electric kiln for high production, with nearly 10 cubic feet of loading capacity. For those who fire the same program for many loads, you need simply to load and start one of your six stored programs, and go back to work on your next batch. The KilnMaster will handle all the firing details with truly superhuman precision, ensuring that you will get superb consistency, load after load. If your 1227-3 is fitted with a Skutt EnviroVent, you can plug all the peepholes, program a Delay to start your firing at night, and be there for shut-off and unloading the next morning. You get more sleep, and much more production. Available in three phase models.

The Skutt KM-1227-3 Electrical Requirements
240 Volts 48 Amps 11520 Watts
208 Volts 48 Amps 9980 Watts
Copper Wire Size: 6
Breaker Size: 60
NEMA Receptacle Configuration: 6-50

Now all 10 and 12-sided KilnMaster Kilns come standard with a Skutt Lid Lifter


Includes New Skutt Lid Lifter
The New Lid Lifter makes our 10 and 12-sided lids some of the lightest on the market. In fact you can now lift them with just a finger. The lid brace has been redesigned for added strength and now has 2 positions. The innovative Center Pivot Design distributes the force on the lid across 2 points as opposed to only one.

It ships fully assembled on the kiln. And unlike some other brands there is no awkward loading of the springs required. The kiln remains completely sectional for moving and repairs. The lid can be effortlessly and safely de-tensioned by simply raising the lid and sliding out the tension rod. It really is that easy!

So Light You Can Lift It With A Finger

New Reinforced 2 position lid Brace

Innovative Center Pivot Design

Ships Fully Assembled

No Tension Loading Required

Does Not Affect Sectional construction

Ceramic Handle Remains Cool

All Corrosion Resistant Parts

Model - Voltage	Phase	Inside Dimensions	Cu. Ft.	Cone/Max Temp	Amps	Watts	Breaker Size	NEMA Plug	Ship Wt. (lbs.)
KM1227-3 240V	1	28.13" x 27"	9.9	8/2300˚F	48	11520	60	6-50	400
KM1227-3 208V	1	28.13" x 27"	9.9	5/2185˚F	48	9980	60	6-50	400
KM1227-3 240V	3	28.13" x 27"	9.9	8/2300˚F	29.3	11520	40	15-50	400
KM1227-3 208V	3	28.13" x 27"	9.9	8/2300˚F	31.7	11000	40	15-50	400
