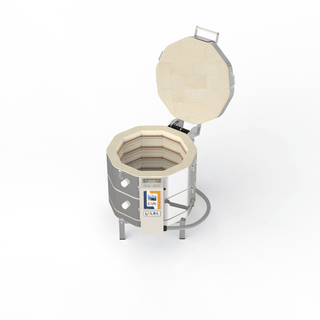

L&L E23S-3: 3" BRICK EASY-FIRE KILN
23" Diameter
18" High
4.7 Cubic Feet
The easy-fire kiln meets the needs
of teachers, institutions, camps,
hobbyists, potters and others who
need an easy to operate, easy to
set up, easy to maintain, easy to
understand, and easy to buy kiln.
It has L&L’s robust and time-proven
technology like ceramic element
holders, industrial-grade element
terminals, ceramic thermocouple
protection tubes, heavy-duty
elements, corrosion resistant
materials, “Easy-Open, Easy-Load”
spring hinge, removable control
panel and zone control with four
“Easy-Fire” programs. Get everything
you need for one easy price.
Note:
The prices shown above in "Choose your options" for Furniture kit and
Vent are also 25% Off Retail Price ! Use the check boxes and the update
price button above to tune your package to fit your budget.
Location and Electrical Service Options:
Please choose 240Volt/Single Phase if the kiln is going to a Residential Location.
If Commercial Location You may have 208/Single or 208/3 Phase Service. If commercial electrical service you must submit the "Electrical Service Confirmation" form.
Use the Lift Gate Required or Loading Dock Available options to help us quote your shipping cost.
Specifications and Features
TEMPERATURE RATING: Cone 10
INSIDE DIMENSIONS: 22-3/8'' diameter by 18'' high with 3'' brick, 4.4 cubic feet
OUTSIDE DIMENSIONS: 32'' wide by 31'' high by 45'' deep
RECOMMENDED FLOOR SPACE: 54'' wide by 54'' deep
FURNITURE / ACCESSORY KIT: One 20'' full round shelf,
four 20'' half shelves, six each 1/2'', 1'', 2'', 4'', 6'' and 8''
square posts plus five pounds of Cone 10 kiln wash, dark
viewing glasses and a pair of temperature resistant gloves
for unloading.
ENERGY, TIME AND FIRING COSTS: Typical heat up to
cone 6 with a 55 pound load and with Vent-Sure on at
240 Volt/single phase will be slightly less than 5-1/2
hours, 38 kW hours, $3.80 @ 10 cents per kW hour.
SHIPPING WEIGHT: 310 pounds for kiln. 335 pounds for
kiln with vent. 385 pounds for kiln with furniture kit. 405
pounds for kiln with vent and kit. Shipping class 85.
SHIPPING DIMENSIONS: 44'' by 44'' by 47'' high (with Furniture Kit)
Features
Element Support Hard Ceramic Element Holders
Element Terminations Stainless Bolts on Ceramic Blocks, no special tools needed
Zone Control Included at no extra cost (two zones)
Thermocouples Heavy-duty 8 gauge with Ceramic Protection Tubes (2)
Hinge Spring-Assist reduces weight of lid
Hinge Support Bars No - nothing to get in way of loading
Door Angle When Open To the back (doesn’t hang over opening)
Hinge Safety Latch Yes. Locking plunger pin, very positive & secure
Stand Full support, 14 ga aluminized steel with rigid bends
Elements Heavy-Duty
Brick Coating Reflective coating on entire interior, hardens brick
Easy Delay Start, Preheat, Hold Yes
Number of Easy Ceramic Programs Four
Number of User-Defined Programs Six
Instructions Complete easy-to-read visual manual, Video included
On/Off Switch Yes - you can turn kiln off
Control Fuse Yes
Control Panel Removable, separate piggybacked panel for control
Power Cord 6-50P for 1 phase
Sectional Construction Yes, easy to move and set up
Reversible Bottom Yes
Cone Limitation Cone 10
Brick Thickness 3''
Case Construction Stainless Steel, 3 clamps each
Assembly Screws Stainless Steel
Safety Agency Listing c-UL-us listed, Vent-Sure vent is also c-UL-us listed
Furniture & Accessory Kit Extra posts, kiln wash, safety gloves and viewing glasses
Vent Downdraft, fumes under vacuum, motor on wall
Warranty Three Year Limited Warranty for both kiln & vent
Optional Vent Sure System
 By
mounting the fan assembly away from the kiln L&L ensures the safety
of the vent, keeps the vibration of the motor away from the kiln and
ceramic ware, and keeps the heat of the kiln away from the fan motor
for long trouble-free life. The fumes can’t get pushed out into your
room through a leak in the duct. The patented downdraft technology from
Orton improves kiln uniformity and improves glaze color. easyfire kilns
and the Vent-Sure vent system are c-UL-us listed.
|
|
|
|
|
|
 |
|
 |
|
Features
- Internal Size: 23-3/8" diam x 18" high
- Cubic Feet: 4.7
- Number of Sections: Two
- Brick: 2-1/2" of premium select K23
- Exterior Size: 32'' wide by 31'' high by 45'' deep
- Recommended Floor Space: 54'' wide by 54'' deep
- Max Temp: 2350F, 1287C, Cone 10
- Control Panel Mount: Piggybacked on insulated terminal box
- Control: DynaTrol with Dynamic Zone Control, 4 preset programs, 6 user defined programs
- Thermocouples: Two Heavy-duty 8 gauge with industrial ceramic protection tubes
- Hinge: Easy-Lift, Easy-Load Spring Hinge
- Stand: Full Support Aluminized stand
- Power Hook Up: Single phase only. Gets a 50 amp 6-50P cord
|
|
|
 |
|
 |
|
|
