Paragon TnF28-3 KILN
Includes Deluxe Rolling Kiln Stand !
28.0"Dia x 29.0"D
at 240 Volts / 1 Phase / 60 Hz 48 Amps 11500 Watts (other voltages available)
Sentry 12-Key Controller

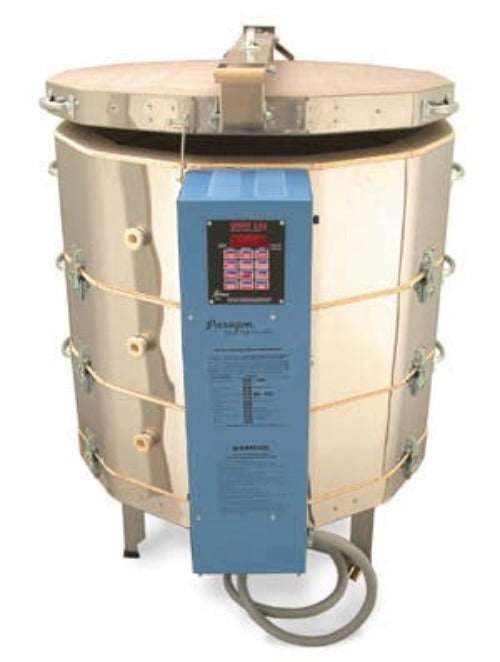

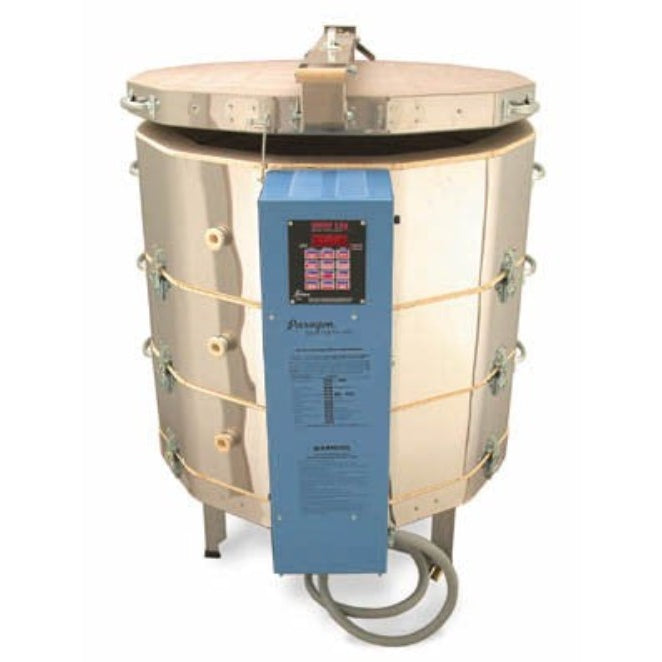

The massive, 12-sided Paragon digital TnF-28-3 kiln is a profit center of the busy ceramic studio. It eats up stacks of low-fire ware. At a cost per cubic foot, the TnF-28-3 is one of the most economically priced standard kilns we make.
The TnF-28-3 now features sectional construction. Separate the kiln bottom and sections to repair bricks, change elements, or to move the kiln down narrow stairwells or through the narrowest doorways. Twist-lock spring latches hold the assembled collars securely.
The top row of brick in the TnF-28-3 is 2” high and without element grooves. It is less susceptible to damage during loading than a grooved brick. We have upgraded the TnF-28-3 kiln to 48 amps. With beefier elements, it fires to temperature with less strain. It is rated to 2150°F, ideal for low-fire ware.
During busy seasons when orders are backlogged, you will be grateful you own a dependable Paragon kiln. Studio owners call these kilns “real work horses.”
Paragon studio kilns have withstood years of abuse in school environments. High school ceramics teachers fire these kilns unmercifully, without remorse. Yet the kilns keep going. People swear by them.
Hinged at the bottom, the switch box on 8, 10 & 12 sided TnF kilns opens forward for easy maintenance. A folding support arm holds the box in the open position. The Sentry is mounted at the top of the switch box within easy reach. Operate it from a comfortable position.
The TnF-28-3 uses deluxe 3” thick firebrick throughout: in the sidewalls, the reversible brick bottom, and the 3” thick lid. The massive lid is easy to lift with Paragon's patented “LiteLid,” which does away with cumbersome pulleys and cords and reduces lid weight to only several pounds of pressure. Most people can lift the lid with one hand. Unlike pulleys and weights, the LiteLid is self-contained on the kiln. No need to drill holes in the ceiling for pulleys. The LiteLid sharply reduces wear between the lid and top rim of firebrick. The truss and floating lid allow expansion of the lid. Ask competitors if their lid spring includes a truss and floating lid.
The 24” wide stand for the TnF-28-3 kiln supports the brick bottom with framing that is 4 ½” wide across the top of each side. The stand is rock-steady, with 16-gauge frame and heavy 12-gauge legs.
If you move your kiln out of the way when not in use, order an optional deluxe kiln stand with steel casters.
Other Features
- 2”-high blank bricks in the top row of sidewall bricks
- Sectional design for easier maintenance and moving through narrow passageways
- Sections secured with deluxe twist-lock spring latches
- Lock-in lid support
- Large, tapered peepholes
- Ventilated switch box
- Hand lifts
- Dropped, recessed brick grooves—no pins needed
- Heavy duty elements
- Dust-free coating in the peepholes, both sides of the lid and top rim of firebrick
- Heavy gauge stainless steel case
- Operating instructions silk-screened on the switch box
- Certified to CSA & UL Standard 499
- Full-formed galvanized steel base plate
The Optional Furniture Kit (not included)
The furniture kit consists of carefully selected fireclay shelves and posts for this particular model. When estimating the price of the kiln, include the cost of furniture. The furniture allows you to stack multiple layers of ware. Without it, you could fire only the ware that would fit on the kiln bottom.
Furniture Kit for S-28-3, SnF-28-3, TnF-28-3, Viking-28:
8 C-24H 1/2 Shelves (26” round x ¾” thick)
1” wide Square Posts, 8 of each -
1”, 2”, 3”, 4”, 5”, 6” lengths
1 lb. Bag Kiln Wash
Furniture Kit Shipping Weight: 164 lbs.
