Paragon Kiln Janus 23 Multipurpose Kiln

Save $509.14
Regular price $5,091.44 $4,582.30
Unit price
per
SKU : P21611N1G00
Item Class: DUAL MEDIA KILNS
Availability: Usually Ships in 2 to 4 Weeks
THIS PRODUCT QUALIFIES FOR FREE SHIPPING FOR MOST LOCATIONS
Availability

Shipping calculated at checkout.
mobile icon

HAVE QUESTIONS ? Call Us

Free Shipping (some items excluded)

Kiln & Ceramic Experts on staff

One stop shop for Ceramics Supplies

Americas Premiere Clay Maker

Ceramic Supplier since 1946

World Class Support

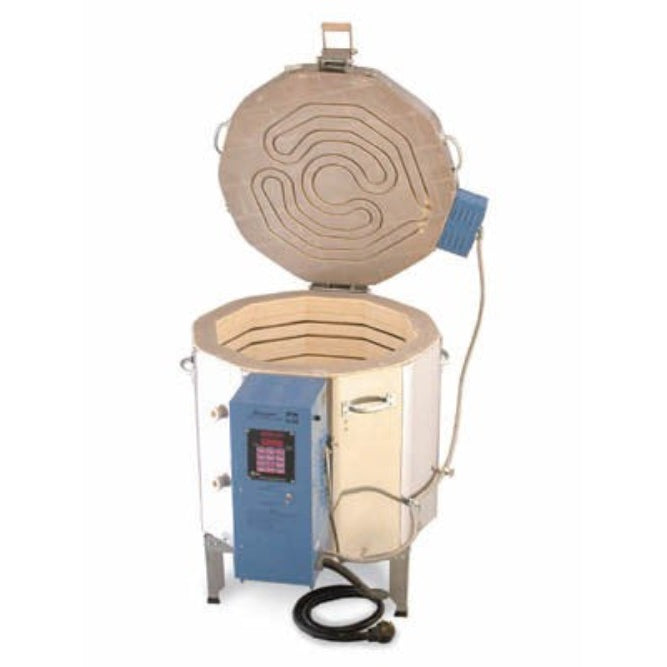

Paragon Janus-23 Dual Media Combination Glass / Pottery Kiln

  • INCLUDES DELUXE ROLLING KILN STAND!
  • 22.5"Dia x 20.25"D
  • 2350°F Max Temp
  • 240 Volts / 1 Phase / 60 Hz 37 Amps 8918 Watts
  •  The Sentinel or Genesis-Mini touch screen controllers are now standard on all new Paragon digital kilns.

The new Paragon Janus-23 can fire both pottery and glass. Heating elements are mounted in the lid and sidewalls.

Select between glass and pottery with the flip of a switch. With the switch in the glass position, heat comes from the top elements and the middle sidewall element. With the switch in the pottery position, heat comes from only the sidewall elements.

In the glass mode, fuse and sag large glass projects placed on a single shelf. In the pottery mode, fire to cone 10. You can also fire several shelves of smaller glass pieces using the pottery mode.

The elements in the lid are mounted in a firebrick “ball” groove that eliminates element pins. The element coils are wider than the groove opening, so the elements stay in place without pins. The groove dissipates heat efficiently.

The lid on the Janus-23 is easy to lift with the exclusive, patented Paragon spring counter-balance. For easier maintenance, we use 2” high blank wall bricks in the top row. Since the brick is without element grooves, it is less susceptible to damage during loading.

The patented control box on the Janus-23 opens forward for easy maintenance. A folding support arm holds the box in the open position.

The digital Sentry 2.0 includes two modes: Cone-Fire with programmed slow cooling and 18-Segment Ramp-Hold. Manufactured by the Orton Ceramic Foundation exclusively for Paragon.

  • Glass/pottery selection switch
  • 3” insulating refractory firebrick walls
  • Sidewall elements in dropped, recessed brick grooves are easy to replace.
  • Tapered peepholes for a wide view
  • A steel floor pan supports the entire brick bottom of each kiln.
  • One year limited warranty
  • Available in 240, 200, 208, or 380 volt, 50 or 60 hertz, single or 3 phase.
  • Easy-access control box with folding support arm.
  • Since the Janus-23 is designed for porcelain, it also easily fires ceramics, china paint, decals, gold and, of course, glass.

Specifications

Max. Temperature

2350F
1287C

Amps

37

Phase

1

Watts

8918

Nema

6-50P

Breaker Size

50

Circuit Wire Size

6 gauge

UL

N

CE

N

Control Type

Sentry Digital 12-key Ceramics

Voltage

240

Hertz

60

Sides

10

Chamber Volume

5.10 CU.FT.
144.42 litres

Chamber Diameter

22.50
572 mm

Chamber Depth

20.25
515 mm

Outer Size

30.50W x 44.00D x 41.50H Inches
775W x 1118D x 1055H mm

Ship Size

34.00W x 48.00D x 46.00H Inches
864W x 1220D x 1169H mm

Ship Weight

295.00 Lbs.
133.81 Kg.

Ship Method

This Kiln Ships Via Truck

Part Number

21611N1G00 * Base Model
