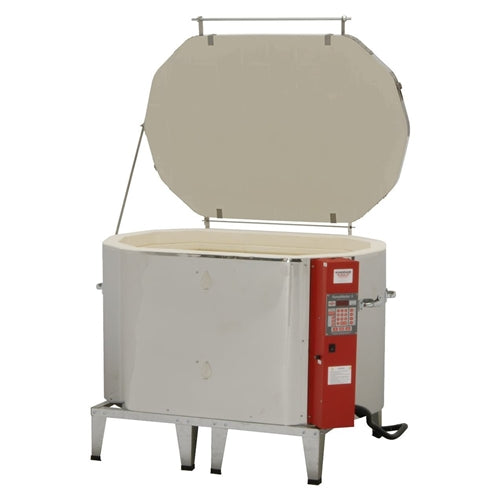

Evenheat RM II 2522 Oval Cone 03 Kiln

A member of our "Big Easy" class of kilns, the RM II 2522 delivers incredible volume at an easy to load depth.

The RM II 2522 is designed exclusively for lower fire ceramics (max. 2000°F, cone 03) and features our TAP Touchscreen, Genesis Touchscreen or RampMaster II controls, optional Dyna-Lift lid lift assist and studio standard 50A power connection. Order yours with our Quiet Drive Solid State output option for tight temperature control and longer element life.

EvenheatRM II 2522

41" Wide x 25.25" Long x 22.5" Deep - 11.2 cubic feet
(104cm Wide x 64cm Long x 57cm Deep - 317L)

Operating Voltage: 240V
Amperage: 47A
Watts: 11,280W

Power Cord Plug Style: NEMA 6-50P
Ship Weight: 410lb (186kg)

TUV listed (UL 499) United States and Canada

  • 2-1/2" Brick Construction
  • Access Port (Pat. Pend.)
  • Corner Mounting Technique
  • Excellent Temperature Distribution
  • Full Stainless Jacket
  • Lid Security Bar
  • Multiple Control Options
  • Properly Designed Stands
  • Swing Away Peephole Cover
  • Swing View Adjustable Control
  • The Big Easy
  • Wonderful Lid Handle

2-1/2" Brick Construction

The RM II 2522 is constructed entirely of high quality, US domestic 2-1/2" firebrick.

Access Port (Pat. Pend.)

The RM II 2522 incorporates Evenheat's new relay access port (Pat. Pend.) for simple, no-panel-off relay replacement.

Simply remove the plate to gain access to the service part. There's no need to remove or swing the entire control panel out of the way and dig into the internal wiring. It's absolutely simple and effective and all it takes is a simple screwdriver!

Corner Mounting Technique

The corners of the kiln body and lid provide excellent strength for mounting. We install our load bearing hinge and lid handle brackets on these corners for this reason. Longer life, high reliability: solid design makes a difference.

Excellent Temperature Distribution

Evenheat kilns are true to their name and the RM II 2522 is no different. Our designs are well known for their excellent temperature uniformity. Theyre done well and youll appreciate the performance.

Full Stainless Jacket

Multi-section kilns were conceived to lower production costs for the kiln manufacturer and to make life easier for the person installing the kiln. These are worthy goals but they come at the cost of kiln quality. It's a trade off we're not willing to make. We build our kilns with full stainless jackets from top to bottom. Full stainless jackets mean absolutely solid, life extending construction. There are no leaks, no shifting and no weakness. Insist on Full Stainless Jackets for true build quality.

Lid Security Bar

The RM II 2522 is provided with a lid security bar that positively holds the lid in the open position.

Multiple Control Options

Evenheat works closely with control manufacturers Bartlett Instruments and SDS Industries to bring you the best in performance, features and programming ease.

Control Options Include:

TAP Touchscreen, full featured touchscreen control with user-defined and preset programs for glass, metal clay and ceramic. Also features full-text graphics, cost per firing, and graphing along with wi-fi compatibility with web and mobile apps and more.

Genesis Touchscreen, full featured touchscreen control with user-defined and preset programs.

Rampmaster 3 (RM3), full featured control with user-defined and preset programs for glass. Features a 4 digit display.

Economical Set-Pro, 3 button control with user-defined and preset programs for glass, metal clay and ceramic. Features a 4 digit display.

Properly Designed Stands

We don't design our stands to fit into our kilns for shipping. We design our stands to support our kilns in use. Our stands properly distribute the weight of the kiln and are made wide to prevent tipping or offsetting. You won't find our stands in our kilns but you'll be happy to know they're beneath them.

Swing Away Peephole Cover

Our kiln designs feature swing-away peephole covers as opposed to plugs. Plugs get lost and they get broken. Our attached peephole covers remain on the kiln and simply swing open and closed. You won't lose them and they certainly won't break.

Swing View Adjustable Control

The Swing View Adjustable Control is a pivoting, swing-up enclosure that allows the user to rotate the control to a comfortable viewing and programming angle. it is that simple. You're going to really enjoy this feature.

The Swing View Adjustable Control is stock equipped on the RM II 2522 with TAP or Rampmaster controls.

The Big Easy

The RM II 2522 is a member of our Big Easy class of kilns that offer the artist the studio volume they desire along with a friendly, easy to load depth.

The easy to load concept has been embraced by artists and Evenheat is pleased to offer solutions. Big can be easy and Evenheat does it well.

Wonderful Lid Handle

We love handles. Handles have to be properly sized and shaped for the job. Our lid handle makes this point by offering a 27" handle that's easy to grasp and operate. This wide, corner mounted handle allows for confident and easy lifting, even with a gloved hand. It's unlike any other and it's a joy to use.
