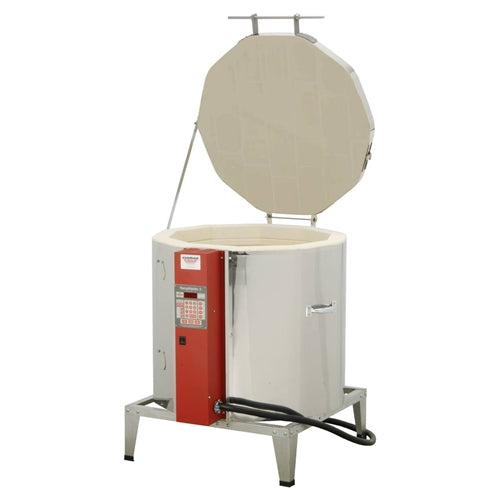

EvenheatRM II 2322
23.5" Dia. x 22.25" Deep - 5.8 cubic feet
(59.7cm Dia. x 56.5cm Deep - 164.2L)
Operating Voltage: 240V
Amperage: 39A
Watts: 9240W
Power Cord Plug Style: NEMA 6-50P
Ship Weight: 215lb (98kg)
TUV listed (UL 499) United States and Canada
FEATURES
- 2 Position Lid Vent
- 2.5" Brick Construction
- Access Port (Pat. Pend.)
- Corner Mounting Technique
- Excellent Temperature Distribution
- Full Stainless Jacket
- Lid Security Bar
- Multiple Control Options
- Properly Designed Stands
- Swing Away Peephole Cover
- Swing View Adjustable Control
- Wonderful Lid Handle
2 Position Lid Vent
The RM II 1822 is equipped with a 2 position lid vent.
2.5" Brick Construction
The RM Series Kilns are constructed entirely of high quality, US domestic 2.5" firebrick.
Access Port (Pat. Pend.)
These kilns incorporate Evenheat's new relay access port (Pat. Pend.) for simple, no-panel-off relay replacement.
Simply remove the plate to gain access to the service part. There's
no need to remove or swing the entire control panel out of the way and
dig into the internal wiring. It's absolutely simple and effective and
all it takes is a simple screwdriver!
Corner Mounting Technique
The corners of the kiln body and lid provide excellent strength
for mounting. We install our load bearing hinge and lid handle brackets
on these corners for this reason. Longer life, high reliability: solid
design makes a difference.
Excellent Temperature Distribution
Evenheat kilns are true to their name and the RM II series is no
different. Our designs are well known for their excellent temperature
uniformity. they're done well and you'll appreciate the performance.
Full Stainless Jacket
Multi-section kilns were conceived to lower production costs for
the kiln manufacturer. While this is a worthy goal it comes at the cost
of kiln quality. It's a trade off we're not willing to make. We build
our kilns with full stainless jackets from top to bottom. Full stainless
jackets mean absolutely solid, life extending construction. There are
no leaks, no shifting and no weakness. Insist on Full Stainless Jackets
for true build quality.
Lid Security Bar
The RM II 1822 is provided with a lid security bar that positively
keeps the lid in the open position. Simple one handed operation is made
even easier with our well designed lid handle.
Multiple Control Options
Evenheat works closely with control manufacturers Bartlett
Instruments and SDS Industries to bring you the best in performance,
features and programming ease.
Control Options Include:
TAP Touchscreen, full featured touchscreen control with user-defined
and preset programs for glass, metal clay and ceramic. Also features
full-text graphics, cost per firing, and graphing along with wi-fi
compatibility with web and mobile apps and more.
Genesis Touchscreen, full featured touchscreen control with user-defined and preset programs.
Rampmaster 3 (RM3), full featured control with user-defined and preset programs for glass. Features a 4 digit display.
Economical Set-Pro, 3 button control with user-defined and preset
programs for glass, metal clay and ceramic. Features a 4 digit display.
Properly Designed Stands
We don't design our stands to fit into our kilns for shipping.
We design our stands to support our kilns in use. Our stands properly
distribute the weight of the kiln and are made wide to prevent tipping
or offsetting. You won't find our stands in our kilns but you'll be
happy to know they're beneath them.
Swing Away Peephole Cover
Our kiln designs feature swing-away peephole covers as opposed
to plugs. Plugs get lost and they get broken. Our attached peephole
covers remain on the kiln and simply swing open and closed. You won't
lose them and they certainly won't break.
Swing View Adjustable Control
The Swing View Adjustable Control is a pivoting, swing-up
enclosure that allows the user to rotate the control to a comfortable
viewing and programming angle. it is that simple. You're going to really
enjoy this feature.
The Swing View Adjustable Control is stock equipped on the RM II Series Kilns with TAP or Rampmaster controls.
Wonderful Lid Handle
We love handles. Handles have to be properly sized and shaped
for the job. Our lid handle makes this point by offering an 8" handle
that's easy to grasp and operate. This wide, corner mounted handle
allows for confident and easy lifting, even with a gloved hand. It's
unlike any other and it's a joy to use.
