Evenheat Kilns

Evenheat RM II 1210 120 volt China Painting Kiln

Save $182.00
Regular price $1,820.00 $1,638.00
Unit price
per
SKU : EVERM1210
Item Class: CHINA PAINT KILN
Availability: 4-6 Weeks
Availability

Shipping calculated at checkout.
mobile icon

HAVE QUESTIONS ? Call Us

Evenheat RM II 1210 120 volt Cone 07 China Painting Kiln

The RM II 1210 is designed for decals and china painting up to 1800°F (982°C), cone 07. Its small size, depth and 120V operation make it perfect for the china and porcelain painting studio.

The RM II 1210 is automatically controlled with our TAP Touchscreen, Genesis Touchscreen, Set-Pro or Rampmaster II programmable controls. Each is designed for easy programming and excellent firing results. Order yours with our Quiet Drive Solid State output option for tight temperature control and longer element life.


Base price is with 3 key Set Pro Controller.

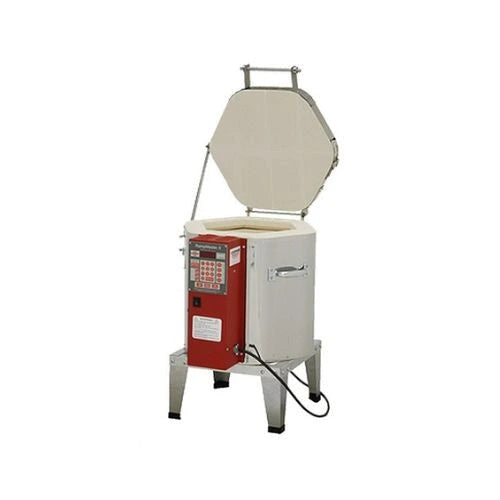

12 Key Ramp Master shown in photo.

Evenheat KilnRM II 1210

11.25" Dia. x 13.5" Deep - .86 cubic feet
(28.6cm Dia. x 34.3cm Deep - 24.4L)
Operating Voltage: 120V
Amperage: 19A
Watts: 2280W
Power Cord Plug Style: NEMA 5-20P
Ship Weight: 70lb (32kg)

TUV listed (UL 499) United States and Canada



  • 2 Position Lid Vent
  • 2-1/2" Brick Construction
  • Access Port (Pat. Pend.)
  • Corner Mounting Technique
  • Excellent Temperature Distribution
  • Full Stainless Jacket
  • Lid Security Bar
  • Multiple Control Options
  • Properly Designed Stands
  • Swing Away Peephole Cover
  • Swing View Adjustable Control
  • Wonderful Lid Handle

2 Position Lid Vent

The RM II 1210 is equipped with a 2 position lid vent.

2-1/2" Brick Construction

The RM II 1210 is constructed entirely of high quality, US domestic 2-1/2" firebrick.

Access Port (Pat. Pend.)

The RM II 1210 incorporates Evenheat's new relay access port (Pat. Pend.) for simple, no-panel-off relay replacement.

Simply remove the plate to gain access to the service part. There's no need to remove or swing the entire control panel out of the way and dig into the internal wiring. It's absolutely simple and effective and all it takes is a simple screwdriver!

Corner Mounting Technique

The corners of the kiln body and lid provide excellent strength for mounting. We install our load bearing hinge and lid handle brackets on these corners for this reason. Longer life, high reliability: solid design makes a difference.

Excellent Temperature Distribution

Evenheat kilns are true to their name and the RM II 1210 is no different. Our designs are well known for their excellent temperature uniformity. they're done well and you'll appreciate the performance.

Full Stainless Jacket

Multi-section kilns were conceived to lower production costs for the kiln manufacturer. While this is a worthy goal it comes at the cost of kiln quality. It's a trade off we're not willing to make. We build our kilns with full stainless jackets from top to bottom. Full stainless jackets mean absolutely solid, life extending construction. There are no leaks, no shifting and no weakness. Insist on Full Stainless Jackets for true build quality.

Lid Security Bar

The RM II 1210 is provided with a lid security bar that positively keeps the lid in the open position. Simple one handed operation is made even easier with our well designed lid handle.

Multiple Control Options

Evenheat works closely with control manufacturers Bartlett Instruments and SDS Industries to bring you the best in performance, features and programming ease.

Control Options Include:

TAP Touchscreen, full featured touchscreen control with user-defined and preset programs for glass, metal clay and ceramic. Also features full-text graphics, cost per firing, and graphing along with wi-fi compatibility with web and mobile apps and more.

Genesis Touchscreen, full featured touchscreen control with user-defined and preset programs.

Rampmaster 3 (RM3), full featured control with user-defined and preset programs for glass. Features a 4 digit display.

Economical Set-Pro, 3 button control with user-defined and preset programs for glass, metal clay and ceramic. Features a 4 digit display.

Properly Designed Stands

We don't design our stands to fit into our kilns for shipping. We design our stands to support our kilns in use. Our stands properly distribute the weight of the kiln and are made wide to prevent tipping or offsetting. You won't find our stands in our kilns but you'll be happy to know they're beneath them.

Swing Away Peephole Cover

Our kiln designs feature swing-away peephole covers as opposed to plugs. Plugs get lost and they get broken. Our attached peephole covers remain on the kiln and simply swing open and closed. You won't lose them and they certainly won't break.

Swing View Adjustable Control

The Swing View Adjustable Control is a pivoting, swing-up enclosure that allows the user to rotate the control to a comfortable viewing and programming angle. it is that simple. You're going to really enjoy this feature.

The Swing View Adjustable Control is stock equipped on the RM II 1210 with TAP or Rampmaster controls.

Wonderful Lid Handle

We love handles. Handles have to be properly sized and shaped for the job. Our lid handle makes this point by offering an 8" handle that's easy to grasp and operate. This wide, corner mounted handle allows for confident and easy lifting, even with a gloved hand. It's unlike any other and it's a joy to use.
