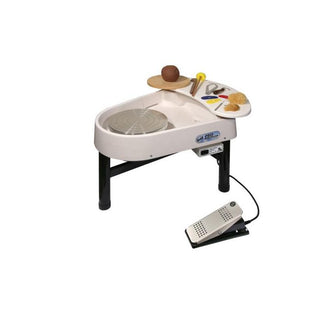

Bailey St-X Pottery Wheel

Save $514.00
Regular price $2,055.00 $1,541.00
Unit price
per
SKU : BAISTX
Item Class: POTTERY WHEELS
THIS PRODUCT QUALIFIES FOR FREE SHIPPING FOR MOST LOCATIONS
Availability

Shipping calculated at checkout.
mobile icon

HAVE QUESTIONS ? Call Us

Free Shipping (some items excluded)

Kiln & Ceramic Experts on staff

One stop shop for Ceramics Supplies

Americas Premiere Clay Maker

Ceramic Supplier since 1946

World Class Support

Bailey St-X Pottery Wheel

Optional Work Shelves
Optional Bailey Pottery wheel Work ShelvesFeatures
Largest Removable Splash/Trim Pan Ultra Quiet Powerful Drive System Rock Solid Frame The Unique Bailey Pedal Platinum Warranty
Keep your studio clean with the Bailey 2-piece removable splash/trim pan. It holds more trimsand slops than any other brand and it's sturdier. We can say for a fact that it is absolutely the easiest pan to slide in and out. Teachers appreciate how the large Bailey Pan keeps their classroom clean. Customers rave about the fact that Bailey Wheels are super quiet and deliver impressive powerover the full range of speeds. This is because of our superior drive system. Our industrial grade DC motors are powerful and will provide indefinite trouble-free service. Our custom bearings are built to last several lifetimes. Our innovative "T-bar" tubular girder is welded to the legs midway down the frame. This provides unprecedented stabilityto the wheel and eliminates flex during the "push" forces of the centering process. The T-bar also steadies the frame when extension legs are used. By building in the T-bar, the cost of adding extension legs is greatly reduced is buttery smooth. There is absolutely no chatter or jerky motion as you adjust speeds. Our pedal has a fluid feel, and can be fine-tuned to just the right tension. Our pedal has been counter weighted internally for ultimate balance. 10 Year Warranty on our Splash Pan, Motor, Belts, Controller, Super Bearing and Pedal Electronics
(Warranty does not cover damage from abuse or electrical surges. All warranty claims are subject to review.
Specifications Details
Centering Weight: 100.00 lbs
Effective HP: 1 HP
Motor HP: 0.50
Reversible: Yes
RPM: 200.00
Wheelhead Diameter: 13"
Bat Pins: 10"
Dimensions: 20 1/4"H x 24 1/2"W x 29"L
Weight: 123.000
Ship Via: UPS
Warranty: 10 Years
Warranty Notes: Motor/Pan/Belts/Controller
Warranty 2 Notes: Pedal Electronics/Bearing
Assembly Required: Y

The Bailey ST-X pottery wheelfeatures the same drive system and foot pedal as our Pro Series Wheels. But for potters who prefer a removable splash pan, Bailey has innovated the 2 Pc Splash-Trim Pan. The Bailey 2 Pc Splash-Trim Pan prevents "splash” and collects more trims than any other splash pan. Finally, a logical removable pan to deal with trims! In addition, a large 9" diameter water bucket can fit inside the Bailey pan while a 14" bat is used. Keeping the water bucket in the pan is another way to keep the clay pottery wheel area clean. The "back and forth" travel to the water bucket is confined to the pan. This will definitely help you keep the studio or classroom clean. The Bailey 2 Pc Splash-Trim Pan is also extremely easy to remove and engage. No more struggling with the pan. You simply slide each section under the wheelhead and you're locked in. It’s fast and convenient. Besides featuring this uniquely designed removable pan, the ST-X also features our unique double reinforced “T-Bar” frame and can use the (optional) Bailey counter system and (optional) inexpensive leg extensions. The ST-X has a reversing switch, develops 1/2 HP at the wheel head and centers up to 50 lbs of clay. Some assembly is required.
