Paragon Janus 1613 Kiln Glass and Ceramic Multipurpose Kiln

Save $318.52
Regular price $3,185.24 $2,866.72
Unit price
per
SKU : P86611N1D00
Item Class: DUAL MEDIA KILNS
Availability: Usually Ships in 2 to 4 Weeks
Availability

Shipping calculated at checkout.
mobile icon

HAVE QUESTIONS ? Call Us

You are browsing ceramic kilns, glass fusing kilns, combination glass and pottery kilns. This is a

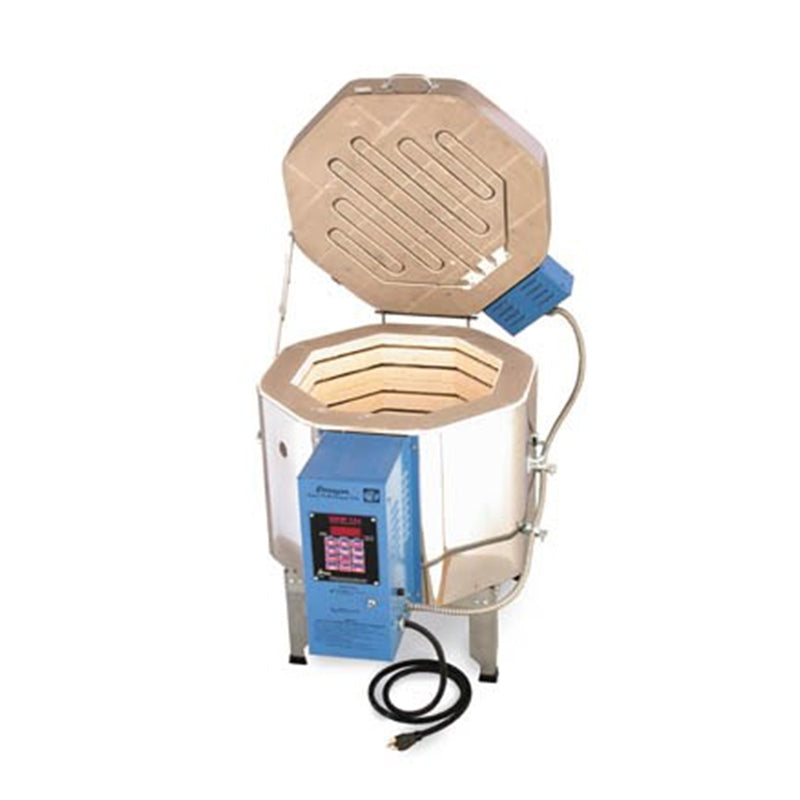

Paragon Janus 1613 Dual Media Glass and Pottery Kiln

JANUS 1613 Dual Media Kiln

16.5"W x 13.25"D
2350°F Max Temp 240 Volts / 1 Phase / 60 Hz 20 Amps 4800 Watts
Sentry 12-Key Controller
NEMA 6-20P Cordset

Pottery, Ceramics and Glass Multipurpose

Features

Kiln Comes with Heavy Duty Rolling Stand, 18” Square x 12” High

A deluxe, rock solid kiln stand with locking casters is included at no extra charge. You will enjoy the convenience of effortlessly moving the kiln out of the way when not in use.

The stand has a mounting bracket for the Orton Kiln Vent and a greenware drying rack. To install an Orton Kiln Vent, slide the vent collection cup into the vent bracket. The new stand eliminates the need for the collection cup mounting bolt.

Take advantage of the heat that radiates from the kiln. Load greenware on the lower shelf. Heat from the kiln will dry the ware to prepare it for the next firing. Save the time and electrical expense of drying the ware inside the kiln.

Assemble the stand with simple tools. The stand slides together with interlocking components that assemble with one size of bolt.

The Paragon Janus-1613 Glass/Pottery Kiln

The heat of the kiln is magical and offers wonderful surprises. Stained glass and ceramic glazes undergo a complete transformation in the kiln. Opening a kiln to view your treasures is a festive moment that you will never outgrow. Artists have said, “Woohooo! Opening a kiln is a celebration!”

The new Paragon Janus-1613 can fire both pottery and glass. Heating elements are mounted in the top and sidewalls of the ceramic pottery kiln.

Select between glass and pottery with the flip of a switch. With the switch in the glass position, heat comes from the top elements and the middle sidewall element. With the switch in the pottery position, heat comes from only the sidewall elements.

In the glass mode, fuse and sag large glass projects placed on a single shelf. In the pottery mode, fire to cone 10. You can also use the Paragon Janus 1613 to fire several shelves of smaller glass pieces using the pottery mode.

The elements in the ceramic pottery kiln lid are mounted in a firebrick “ball” groove that eliminates element pins. The element coils are wider than the groove opening, so the elements stay in place without pins. The groove dissipates heat efficiently, evenly radiating heat onto the glass.

A heavy galvanized steel base covers the reversible brick bottom completely. It folds up under the stainless case on all sides to strengthen the firing chamber. This is one more assurance that your Paragon Janus 1613 kiln is built to last.

The digital Sentry 2.0 includes two modes: Cone-Fire with programmed slow cooling and 18-Segment Ramp-Hold. Manufactured by the Orton Ceramic Foundation exclusively for Paragon.

You will be amazed at the convenience of digital firing with this ceramic pottery kiln. The reliable solid-state Sentry controller continually monitors the firing so you can spend your time productively without closely watching the kiln. (Please remember, however, to check the kiln during firing and to monitor it near the expected shutoff time.) The sealed touch pad keeps out dust and is easy to wipe clean.

The Paragon Janus 1613 controller has powerful features that you will enjoy using. Yet we have also worked hard to make the controller user-friendly.

Do you ever wonder how much electricity your kiln uses? The digital controller can figure this for you with the press of a button. Find out how little a ceramic pottery kiln actually costs to fire. Learn to conserve energy by experimenting with firing speed, load density, etc.

  • Glass/pottery selection switch
  • 3” insulating refractory firebrick walls
  • Sidewall elements in dropped, recessed brick grooves are easy to replace.
  • Tapered peepholes for a wide view
  • A steel floor pan supports the entire brick bottom of each kiln.
  • One year limited warranty
  • Available in 240, 200, 208, or 380 volt, 50 or 60 hertz, single or 3 phase.
  • Janus-24 and Janus-27: easy-access control box with folding support arm.
  • Since the Janus-1613 is designed for porcelain, it also easily fires ceramics, china paint, decals, gold and, of course, glass.

The Optional Furniture Kit (not included)

The optional furniture kit consists of carefully selected fireclay shelves and posts for this particular model. When estimating the price of the kiln, you should consider adding the furniture kit. The furniture allows you to stack multiple layers of ware in the ceramic pottery kiln. Without it, you could fire only the ware that would fit on the kiln bottom.

Furniture Kit for Janus-1613, S-1613-3, TnF-1613-3

2 - C-18 (15” Round x 5/8”) Shelves, 1- C-18 1/2 Shelf

1" Square Posts, 3 each - ”, 1”, 2”, 3”, 4”, 6”

1 lb. Bag Kiln Wash

Furniture Kit Shipping Weight: 28 lbs.

Specifications

Max. Temperature 2350F 1287C
Amps 20
Phase 1
Watts 4800
Nema 6-20P
Breaker Size 20
Circuit Wire Size 12 gauge
UL N
CE N
Control Type Sentry Digital 12-key Ceramics
Voltage 240
Hertz 60
Sides

8

Chamber Volume

1.75 CU.FT.
49.55 litres

Chamber Diameter

16.50
420 mm

Chamber Depth

13.25
337 mm

Outer Size

25.50W x 28.50D x 29.00H Inches
648W x 724D x 737H mm

Ship Size

30.50W x 30.50D x 27.00H Inches
775W x 775D x 686H mm

Ship Weight

171.00 Lbs.
77.57 Kg.

Ship Method

This Kiln Ships Via Truck

Part Number

86611N1D00
